Description

Price

1

MASTER CYLINDER ASSY

3B4-2583T-00-00

$324.40

2

CYLINDER KIT, MASTER

5LP-W0041-00-00

$62.56

3

SCREW, FLAT

98707-04012-00

$1.43

4

CAP, RESERVOIR

3GM-25852-22-00

$55.43

5

PLATE, DIAPHRAGM

3B4-2585B-00-00

$8.63

6

DIAPHRAGM, RESERVOIR

4TT-25854-00-00

$15.83

7

LEVER 2

3B4-83922-00-00

$51.94

8

BOLT, LEVER

3B4-2589F-00-00

$10.89

9

NUT, U(4NK)

95604-06100-00

$6.68

10

BRACKET, MASTER CYLINDER

56A-25867-00-00

$24.65

11

BOLT

5EB-26332-00-00

$6.14

12

FRONT STOP SWITCH ASSY

4HM-83980-00-00

$35.70

13

COVER, HANDLE LEVER 2

3B4-2637A-01-00

$7.15

14

HOSE, BRAKE 1

1HP-F5872-00-00

$21.75

15

CIRCLIP

2GU-25866-00-00

$8.70

16

HOSE, BRAKE 2

1HP-F5873-01-00

$51.54

17

PIPE, BRAKE

1HP-F5871-00-00

$7.46

18

CLAMP

90464-20010-00

$2.17

19

BOLT, UNION(3GM)

90401-10159-00

$8.85

20

WASHER, PLATE(481)

90201-10118-00

$2.91

21

BOLT, FLANGE

95822-06025-00

$1.46

22

HOLDER, BRAKE HOSE

3B4-25886-00-00

$6.43

23

BOLT, FLANGE

95817-06012-00

$1.49

24

HOLDER, BRAKE HOSE 2

3B4-25876-10-00

$8.51

25

BOLT, FLANGE

95817-06012-00

$1.49

26

SCREW, PAN HEAD

98511-04012-00

Unavailable

27

WASHER, PLAIN (646)

92990-04600-00

$0.92

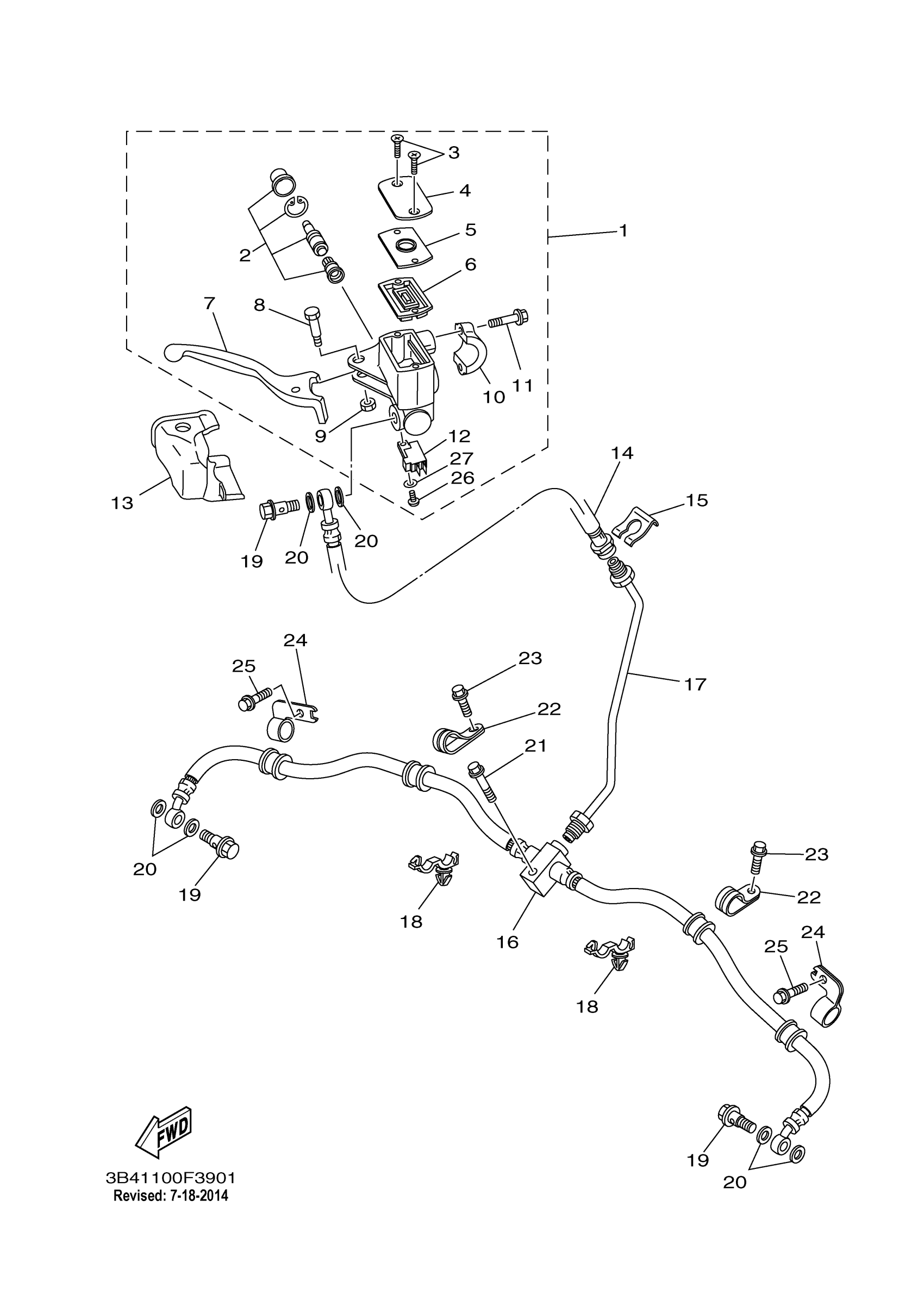

Yamaha YFM7FGPW (GRIZZLY 700) 3B41 2007 FRONT MASTER CYLINDER Diagram
