Description

Price

1

COVER, CRANKCASE 1

3B4-15411-01-00

$233.88

2

GASKET, CRANKCASE COVER 1

3B4-15451-00-00

$26.61

3

PIN, DOWEL(2VG)

99530-10116-00

$3.37

4

CLAMP

90462-08050-00

Unavailable

5

BOLT, FLANGE

95022-06030-00

$1.40

6

BOLT, FLANGE

95022-06050-00

$1.38

7

PLATE

3B4-15113-00-00

$6.35

8

BOLT

91312-05014-00

$2.74

9

PLUG, STRAIGHT SCREW

90340-36002-00

$13.38

10

O-RING

93210-35804-00

$0.49

11

PLUG, STRAIGHT SCREW

90340-14011-00

$19.71

12

O-RING (2H9)

93210-14369-00

$5.80

13

COVER, CRANKCASE 2

3B4-15421-01-00

$78.58

14

GASKET

3B4-15453-01-00

$14.95

15

SEAL, CRANKCASE

3B4-15315-00-00

$10.82

16

95822-06030

95822-06030-00

$1.54

17

HOUSING, BEARING

3B4-15442-00-00

$304.29

18

PIN, DOWEL(2VG)

99530-10116-00

$3.37

19

95822-06030

95822-06030-00

$1.54

20

BOLT, FLANGE

95817-06040-00

$4.54

21

BEARING(82M)

93306-20117-00

$29.07

22

OIL SEAL

93101-12168-00

$4.34

23

PLATE, BEARING COVER

4WV-15381-00-00

$7.32

24

BOLT, FLANGE

95022-06016-00

$3.32

25

COVER, CRANKCASE 3

3B4-15431-01-00

$77.77

26

SEAL, CRANKCASE

3B4-15379-00-00

$25.33

27

GROMMET (462)

90480-13018-00

$6.25

28

PLUG, DRAIN

5KM-15351-00-00

$6.72

29

BOLT, FLANGE

95817-06020-00

$2.69

30

CLAMP

90462-08055-00

$4.98

31

DUCT, AIR

1HP-E5471-00-00

$24.83

32

DAMPER, PLATE 1

5EJ-2414H-00-00

$6.38

33

GROMMET(4FU)

90480-13567-00

$3.88

34

CLAMP,HOSE

90460-85135-00

$7.28

35

SEAL, AIR DUCT

1HP-E5472-00-00

$13.08

36

NUT, SPRING

90183-06100-00

$7.88

37

DUCT, AIR

1HP-E5473-00-00

$19.58

38

SEAT, BATTERY

1S3-82123-00-00

$3.09

39

GROMMET

90480-13014-00

$6.85

40

SEAL, AIR DUCT

1HP-E5474-00-00

$8.80

41

CLAMP,HOSE

90460-85135-00

$7.28

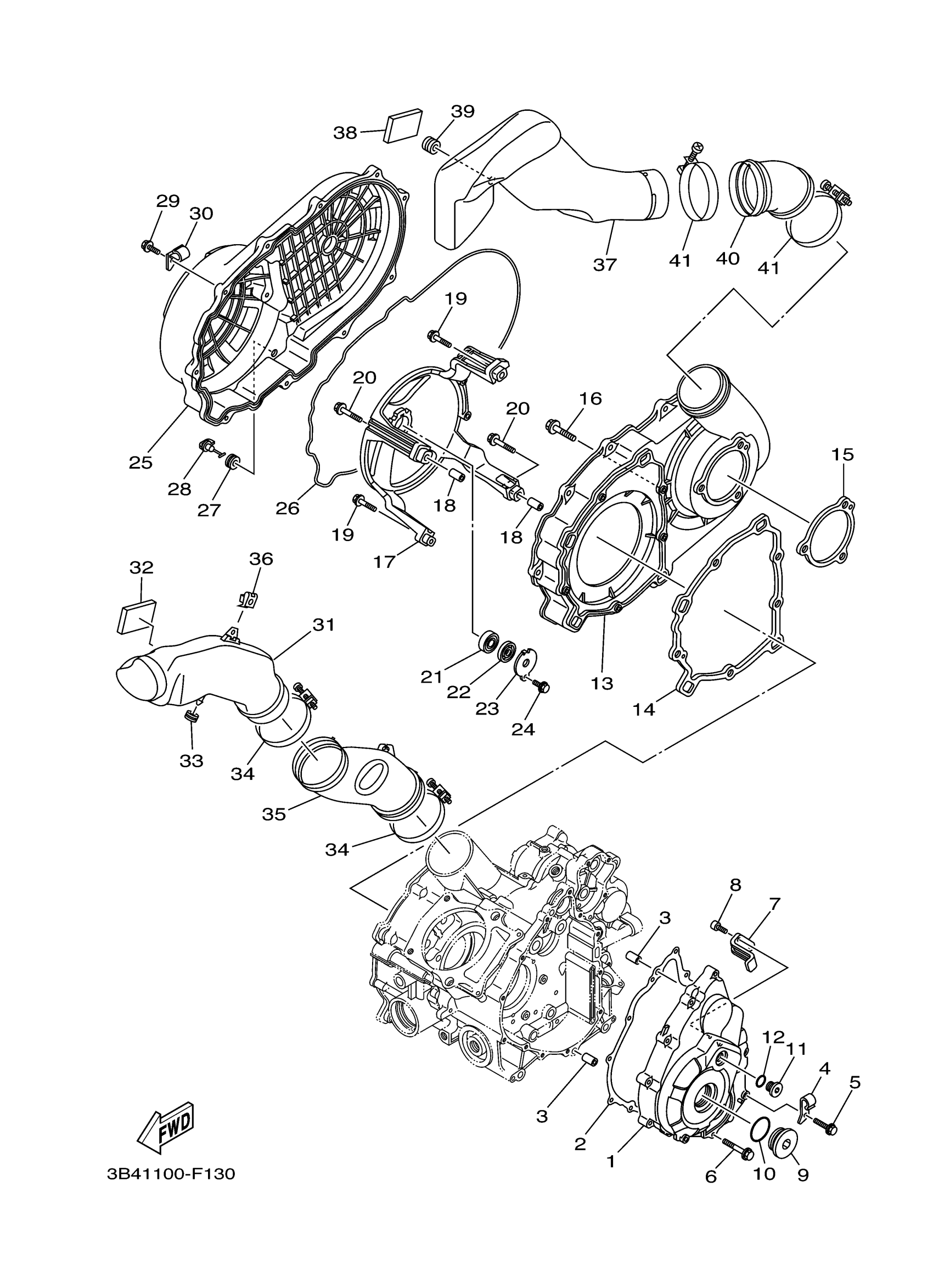

Yamaha YFM7FGPW (GRIZZLY 700) 3B41 2007 CRANKCASE COVER 1 Diagram
