Description

Price

1

SHAFT, SECONDARY

3B4-17681-00-00

Unavailable

2

BEARING (5Y1)

93306-00426-00

$35.60

3

BEARING(55X)

93306-07801-00

$51.93

4

COLLAR

90387-26001-00

$35.78

5

O-RING

93210-26001-00

$4.84

6

OIL SEAL

93102-42004-00

$26.25

7

AXLE, DRIVE

3B4-17421-00-00

$128.95

8

STOPPER

3B4-17473-00-00

$46.88

9

WASHER, PLATE(1FK)

90201-256K6-00

$3.49

10

BRG,CYL-CAL ROLLER 15G KY

93310-32590-00

$28.79

11

GEAR, REVERSE WHEEL 2 (28T)

3B4-17253-00-00

$104.97

12

CIRCLIP (4L0)

93440-25084-00

$3.96

13

GEAR, MIDDLE DRIVE (21T)

3B4-17582-00-00

$129.22

14

COLLAR(1UX)

90387-250R3-00

$25.98

15

GEAR, LOW WHEEL (31T)

3B4-17233-00-00

$129.20

16

WASHER 434172160000

90209-22082-00

$7.89

17

CIRCLIP (4L0)

93440-25084-00

$3.96

18

CLUTCH, DOG

3B4-17285-02-00

$89.51

19

WASHER PLATE 168171160000

90201-20278-00

$8.95

20

GEAR, HIGH WHEEL (29T)

3B4-17223-00-00

Unavailable

21

COLLAR

90387-20021-00

$21.34

22

WASHER, PLATE(XA1)

90201-170U8-00

$8.80

23

BEARING(3LD)

93306-20464-00

$34.40

24

BRG,R-B 6203RS 40MM 63.3G KY

93306-20310-00

$31.64

25

AXLE, IDLE

3B4-17432-01-00

$36.18

26

GEAR, REVERSE WHEEL (NEW TYPE)

16B17243-00-00

Unavailable

27

WASHER, PLATE

90201-15029-00

$7.31

29

DRIVE PINION ASSY (41T)

3B4-17520-00-00

$213.45

30

BRG,R-B 6304C3 52MM 144G KY

93306-30421-00

$54.91

31

BEARING

93310-31576-00

$28.75

32

COLLAR

90387-15018-00

$17.25

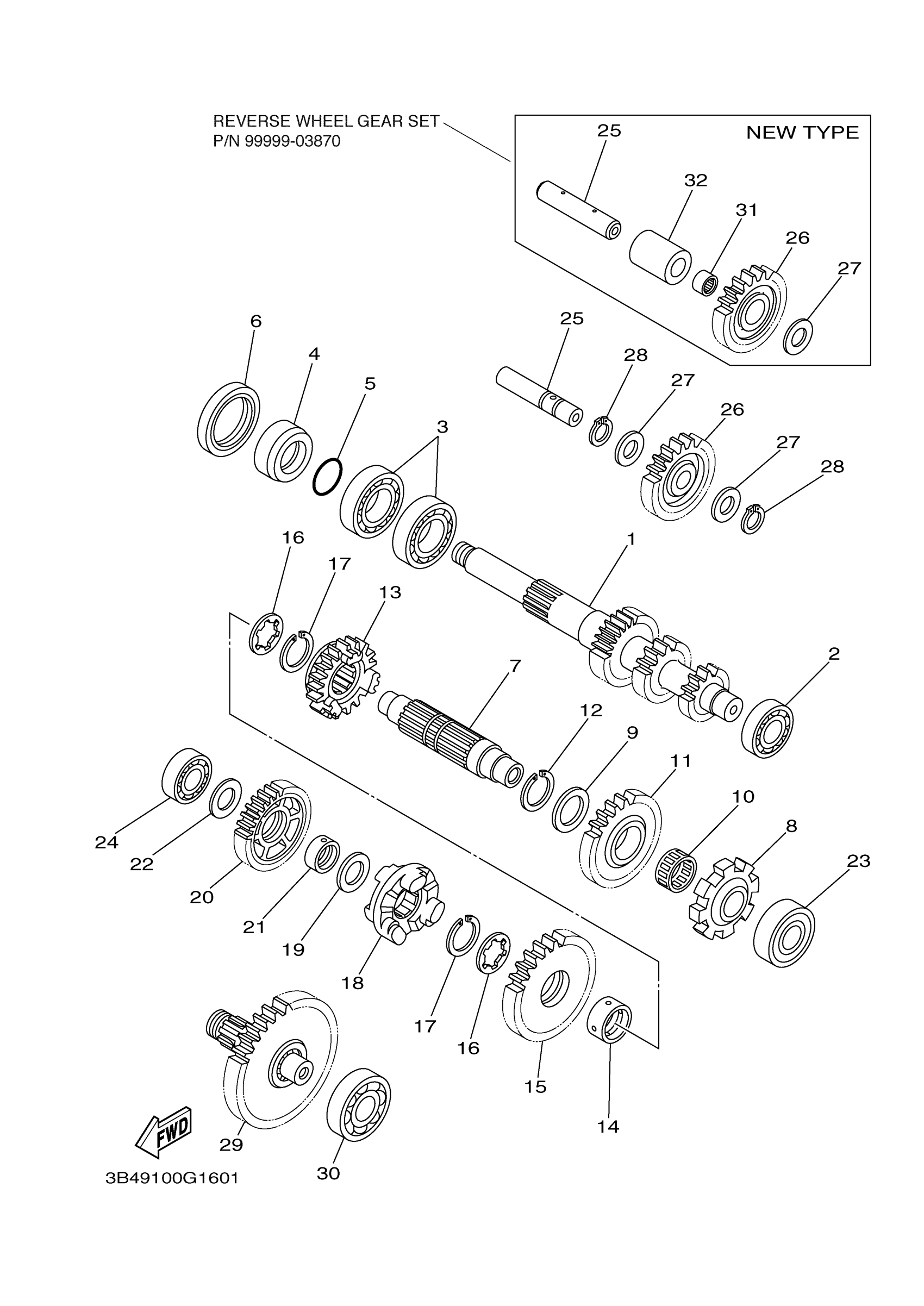

Yamaha YFM7FGPSEW (GRIZZLY 700 SPECIAL EDITION-SILVER) 3B4A 2007 TRANSMISSION Diagram
