Description

Price

1

BRACKET, FOOTREST 1

3B4-27452-00-00

$126.57

2

BRACKET, FOOTREST 2

3B4-27462-00-00

$133.40

3

BOLT, WITH WASHER

90119-10033-00

$4.28

4

COVER 1

3B4-27453-01-00

$169.28

5

SEAL 1

3B4-21732-00-00

$9.06

6

ARM 1

5GH-2741A-10-00

$12.34

7

BOLT(3KJ)

90109-063F5-00

$6.29

8

WASHER, PLATE(36Y)

90201-063J2-00

$4.45

9

NUT(6TA)

95317-06600-00

$2.69

10

GROMMET(3SX)

90480-14532-00

$4.35

11

COVER 3

3B4-28239-02-00

Unavailable

12

SEAL 2

3B4-21735-00-00

Unavailable

13

BOLT(3KJ)

90109-063F1-00

$2.24

14

BOLT, HEXAGON SOCKET HEAD(3HE)

90110-06200-00

$6.28

15

BOLT, HEXAGON SOCKET HEAD(1KF)

90110-06104-00

$4.11

16

WASHER, PLATE

90201-06557-00

$2.75

17

NUT, NYLON

95707-06300-00

$3.20

18

COVER 2

3B4-27463-01-00

$66.50

19

ARM 1

5GH-2741A-10-00

$12.34

20

BOLT(3KJ)

90109-063F5-00

$6.29

21

WASHER, PLATE(36Y)

90201-063J2-00

$4.45

22

NUT(6TA)

95317-06600-00

$2.69

23

BOLT(3KJ)

90109-063F1-00

$2.24

24

BOLT, HEXAGON SOCKET HEAD(3HE)

90110-06200-00

$6.28

25

BOLT, HEXAGON SOCKET HEAD(1KF)

90110-06104-00

$4.11

26

WASHER, PLATE

90201-06557-00

$2.75

27

NUT, NYLON

95707-06300-00

$3.20

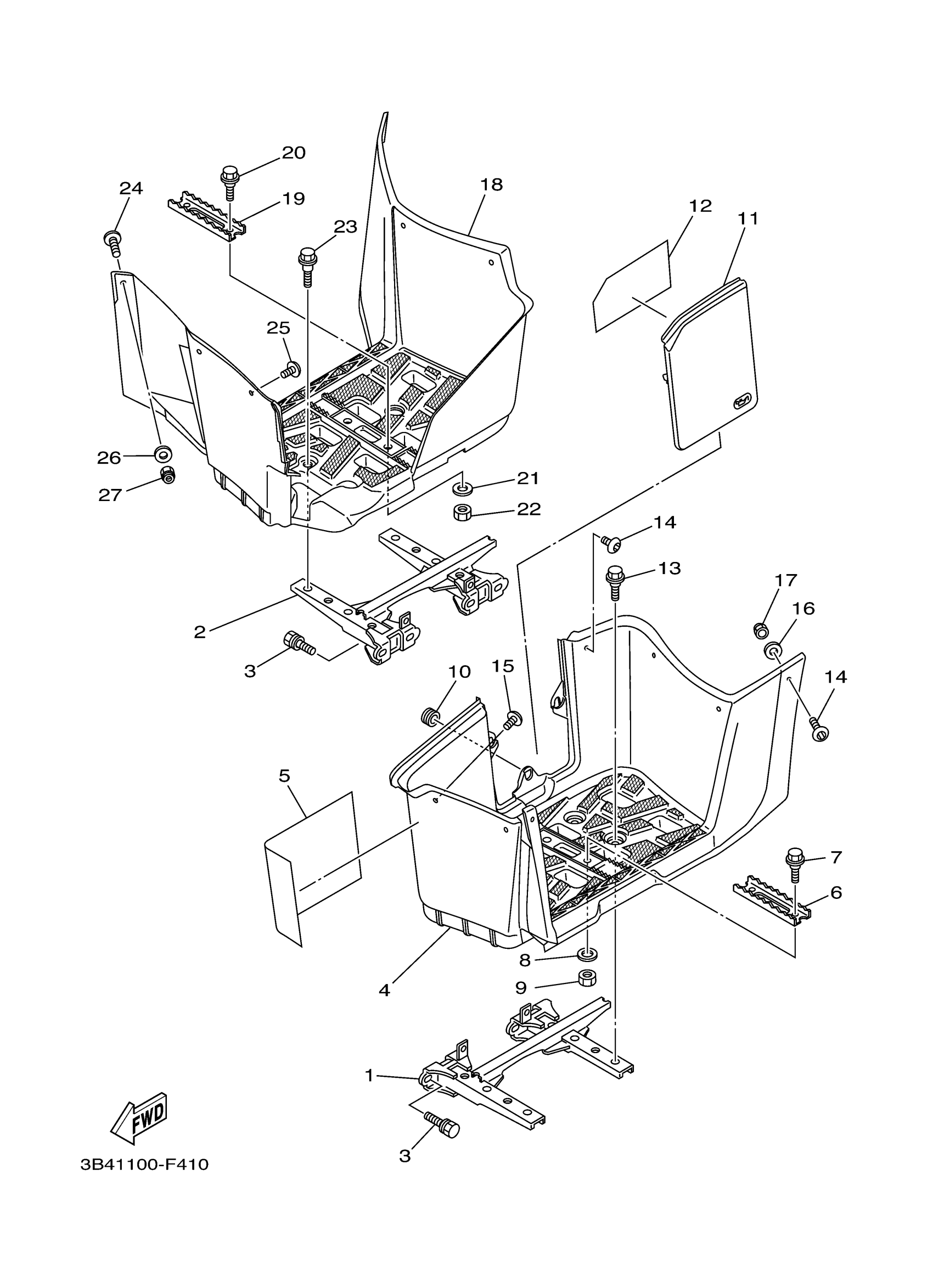

Yamaha YFM7FGPSEW (GRIZZLY 700 SPECIAL EDITION-SILVER) 3B4A 2007 STAND FOOTREST Diagram

COVER 3

SEAL 2
