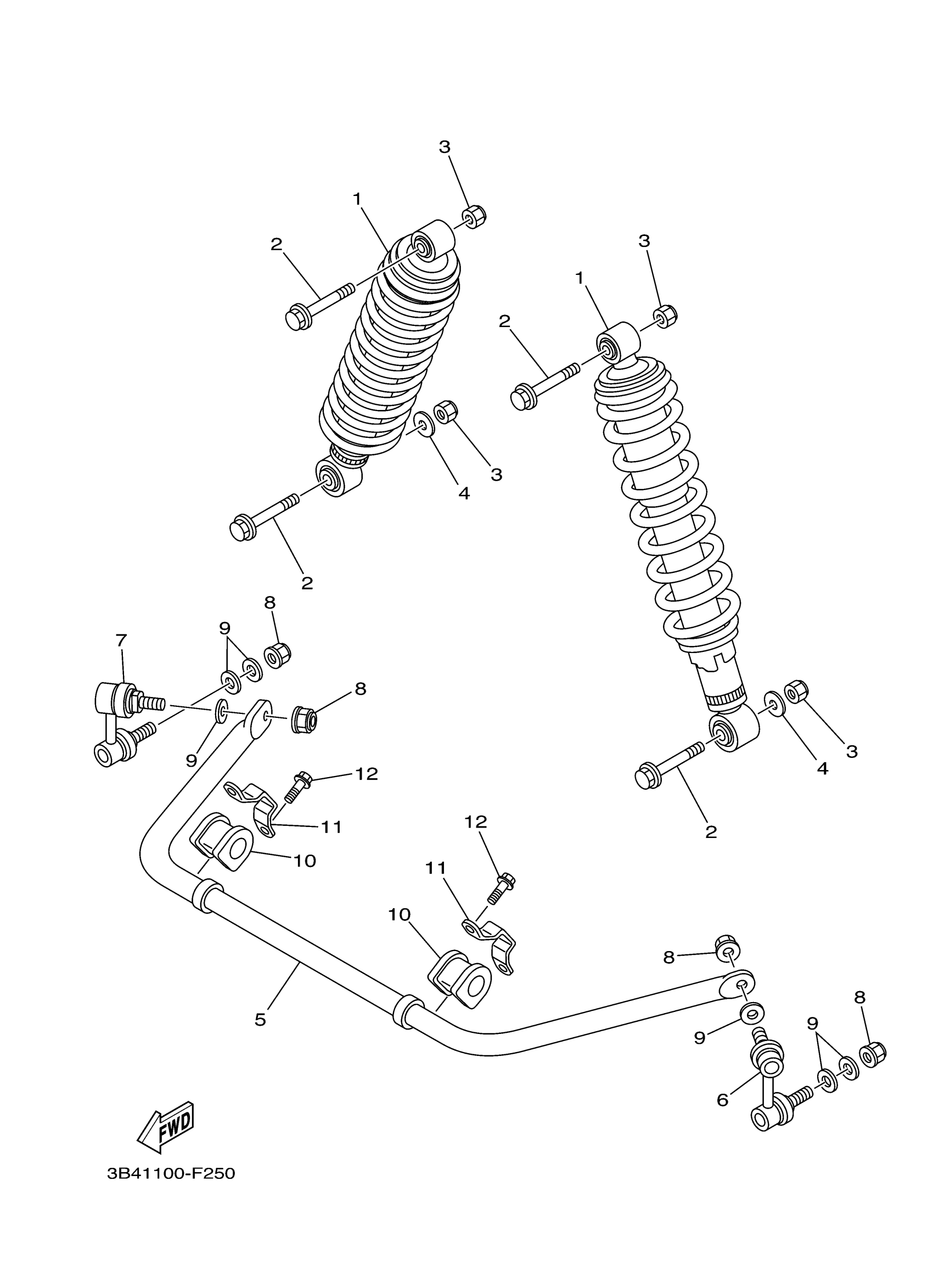

Yamaha YFM7FGPSEW (GRIZZLY 700 SPECIAL EDITION-SILVER) 3B4A 2007 REAR SUSPENSION Diagram

#

Description
Price

1

SHOCK ABSORBER ASSY, REAR

3B4-22210-11-00

$351.25

2

BOLT, WASHER BASED(59V)

90105-10388-00

Unavailable

3

NUT, SELFLOCKING (533 FRAME)

90185-10060-00

$6.02

4

WASHER, PLATE(47X)

90201-101J1-00

$6.17

5

BAR, STABILIZER

1HP-G7491-01-00

$56.18

6

JOINT, STABILIZER 1

16B-2385L-10-00

$62.01

7

JOINT, STABILIZER 2

16B-2385M-10-00

$62.95

8

NUT, S/L FLANGE

95602-10200-00

$2.29

9

WASHER, PLATE(47X)

90201-101J1-00

$6.17

10

BUSH, STABILIZER FRONT

3B4-2386G-00-00

$10.29

11

COVER, STABILIZER FRONT

3B4-2386H-00-00

Unavailable

12

BOLT, FLANGE

95817-08014-00

$1.94
