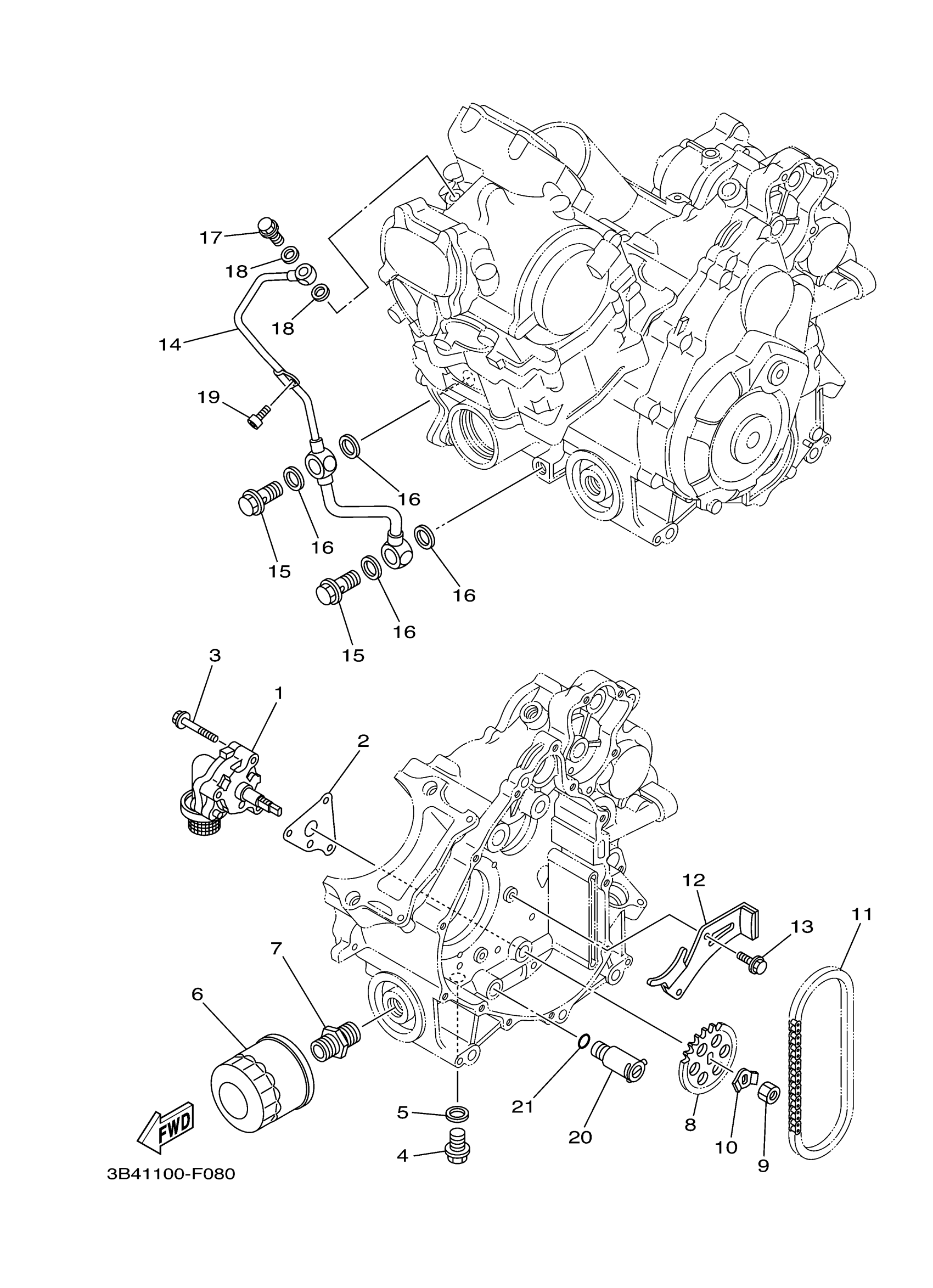

Yamaha YFM7FGPSEW (GRIZZLY 700 SPECIAL EDITION-SILVER) 3B4A 2007 OIL PUMP Diagram

Description

Price

OIL PUMP ASSY

3B4-13300-00-00

$164.73

GASKET, PUMP COVER

3B4-13329-00-00

$5.75

BOLT, FLANGE

95022-06040-00

$2.93

PLUG, STRAIGHT SCREW(3FA)

90340-14132-00

$2.65

GASKET

214-11198-01-00

$2.66

ELEMENT ASSY, OIL

5GH-13440-90-00

$9.69

BOLT, UNION

90401-20007-00

$16.14

SPROCKET, DRIVEN

3B4-13355-00-00

$31.64

NUT(624)

95380-10600-00

$2.14

WASHER, LOCK

90215-10008-00

$2.92

CHAIN

94580-31074-00

$21.71

GUIDE, STOPPER 3

3B4-12221-01-00

$13.55

BOLT, FLANGE

95022-06020-00

$3.32

PIPE, DELIVERY 2

3B4-13171-00-00

$152.00

BOLT, UNION(1YW)

90401-14118-00

$16.11

GASKET 256131670000

90430-14043-00

$6.46

BOLT, UNION

90401-10015-00

$9.89

GASKET

90430-10188-00

$5.98

BOLT,SOCKET

91317-06012-00

$6.17

RELIEF VALVE ASSY

25G-13490-00-00

$60.88

O-RING (611)

93210-10096-00

$3.11
