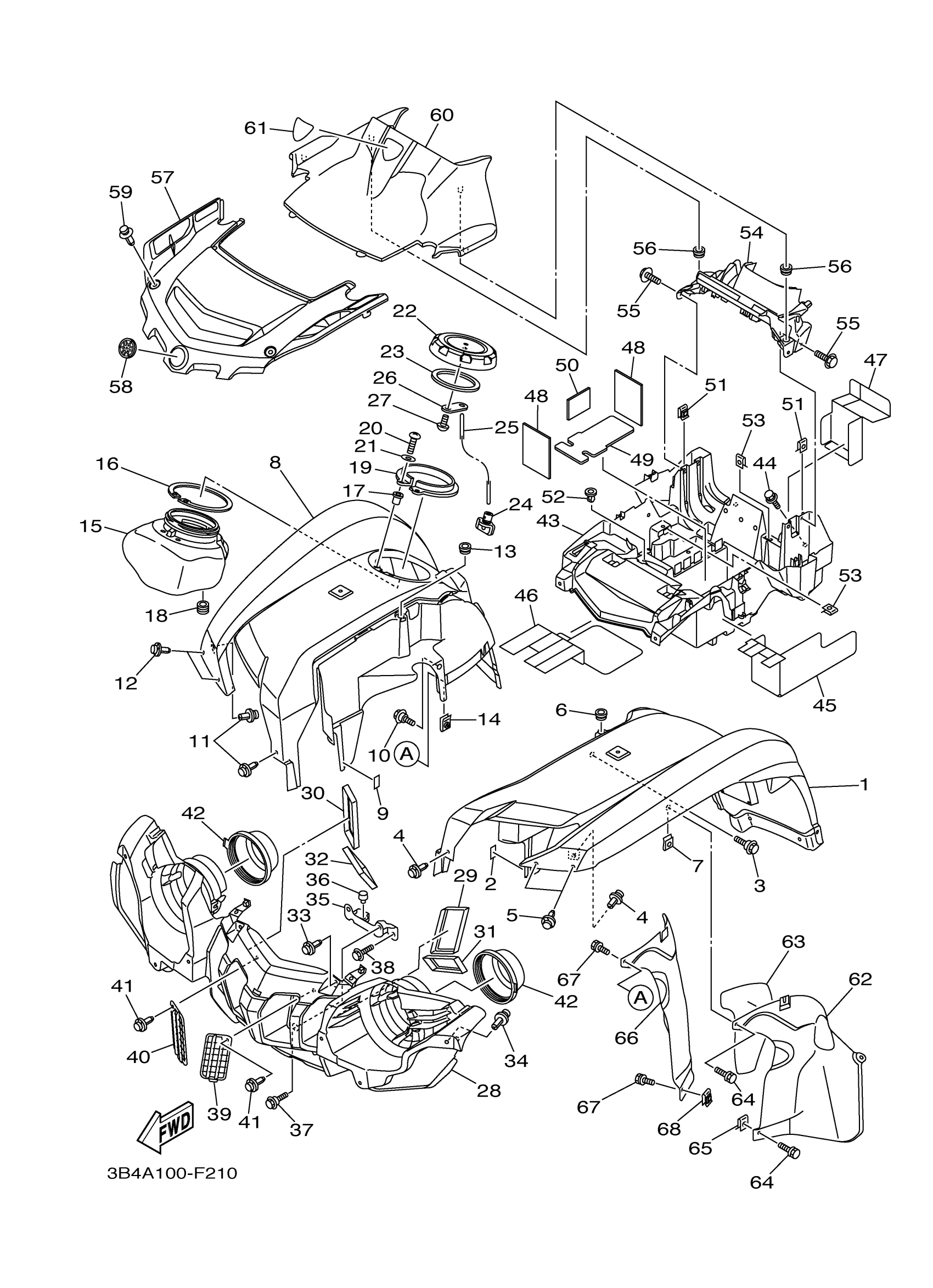

Yamaha YFM7FGPSEW (GRIZZLY 700 SPECIAL EDITION-SILVER) 3B4A 2007 FRONT FENDER Diagram

#

Description
Price

1

FRONT FENDER COMP.

3B4-W2151-C0-00

$790.99

2

DAMPER 1

3B4-21541-00-00

$2.45

3

BOLT(3KJ)

90109-063F1-00

$2.24

4

RIVET

90269-07010-00

$3.75

5

RIVET

90269-07010-00

$3.75

6

GROMMET

90480-13014-00

$6.85

7

NUT, SPRING(4ES)

90183-06069-00

$5.93

8

FENDER, FRONT 2

3B4-21556-C0-00

Unavailable

9

DAMPER 1

3B4-21541-00-00

$2.45

10

BOLT(3KJ)

90109-063F1-00

$2.24

11

RIVET

90269-07010-00

$3.75

12

RIVET

90269-07010-00

$3.75

13

GROMMET

90480-13014-00

$6.85

14

NUT, SPRING(4ES)

90183-06069-00

$5.93

15

BOX 1

1HP-F838K-00-00

$19.71

16

SEAL, BOX 1

3B4-2838M-00-00

$10.29

17

NUT(1KT)

90179-05523-00

$4.33

18

GROMMET

90480-13004-00

$6.08

19

HOLDER

3B4-2839N-01-00

$4.29

20

SCREW, PAN HEAD(JJ6)

98507-05016-00

$1.40

21

WASHER, PLAIN (646)

92990-05600-00

Unavailable

22

CAP

1HP-F151B-00-00

$9.17

23

SEAL

3B4-28307-00-00

$5.43

24

PLUG, DRAIN

3B4-215A1-00-00

$8.03

25

STOPPER, OPEN

3B4-2845L-00-00

$4.74

26

PLATE 2

3B4-28487-00-00

$5.93

27

SCREW, TAPPING(61A)

97780-50612-00

$4.01

28

GRILLE, FRONT

3B4-28309-02-00

Unavailable

29

DAMPER 1

3B4-28217-00-00

$10.23

30

DAMPER 2

3B4-28227-00-00

$10.46

31

DAMPER 3

3B4-28237-00-00

Unavailable

32

DAMPER 4

3B4-28247-00-00

$7.05

33

RIVET

90269-07010-00

$3.75

34

RIVET(4PH)

90269-07077-00

$6.92

35

STAY, LEG SHIELD

3B4-28332-00-00

$18.45

36

STOPPER

5RU-24768-00-00

$6.66

37

BOLT(3KJ)

90109-063F1-00

$2.24

38

BOLT, FLANGE

95817-06012-00

$1.49

39

GRILL, AIR INTAKE 1

3B4-2837N-00-00

$5.93

40

GRILL, AIR INTAKE 2

3B4-2837R-00-00

$5.74

41

RIVET(4PH)

90269-07077-00

$6.92

42

CAP

3B4-28349-00-00

$15.02

43

PLATE 1

3B4-21523-00-00

Unavailable

44

BOLT, WITH WASHER

90119-06152-00

$2.74

45

INSULATOR 1

3B4-8253E-00-00

Unavailable

46

INSULATOR 2

3B4-8253F-00-00

Unavailable

47

INSULATOR

3B4-8254E-00-00

$8.18

48

INSU.

3B4-8233W-00-00

$6.65

49

SEAT, BATTERY

3B4-82122-00-00

$12.48

50

SEAT, BATTERY

1S3-82123-00-00

$3.09

51

NUT, SPRING(4ES)

90183-06069-00

$5.93

52

PLUG(4BP)

90338-08226-00

$1.63

53

NUT, SPRING

90183-05008-00

$6.68

54

PANEL, CONSOLE 1

3B4-2837L-01-00

$144.35

55

BOLT, WITH WASHER

90119-06152-00

$2.74

56

GROMMET(4FU)

90480-13567-00

$3.88

57

PANEL, FRONT

1HP-F3391-00-00

$16.03

58

TUNING FORK MARK

5KM-2175B-00-00

$12.89

59

RIVET

90269-07010-00

$3.75

60

LID

3B4-28313-02-00

Unavailable

61

EMBLEM 3D

3B4-26232-01-00

$33.38

62

FENDER, INNER

1HP-F1552-00-00

$8.93

63

SEAL 1

1HP-F1575-01-00

$3.35

64

BOLT, WITH WASHER

90119-06152-00

$2.74

65

NUT, SPRING(4ES)

90183-06069-00

$5.93

66

FENDER, INNER 2

1HP-F1553-00-00

$18.23

67

BOLT, WITH WASHER

90119-06152-00

$2.74

68

NUT, SPRING(4ES)

90183-06069-00

$5.93
