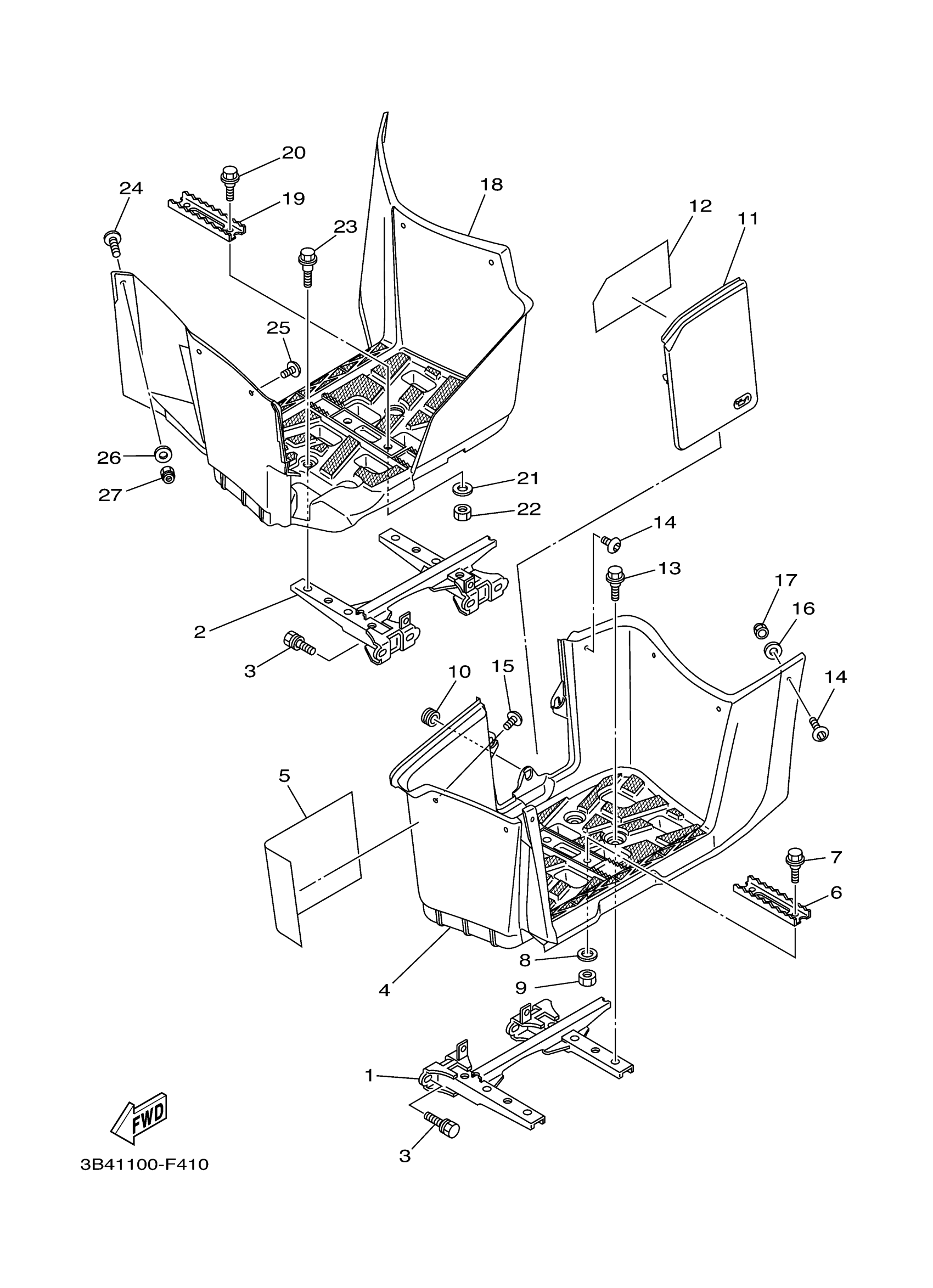

Yamaha YFM7FGPOHW (GRIZZLY 700 OUTDOORSMAN EDITION) 3B45 2007 STAND FOOTREST Diagram

#

Description
Price

1

BRACKET, FOOTREST 1

3B4-27452-00-00

$124.65

2

BRACKET, FOOTREST 2

3B4-27462-00-00

$117.07

3

BOLT, WITH WASHER

90119-10033-00

$3.98

4

COVER 1

3B4-27453-01-00

$179.42

5

SEAL 1

3B4-21732-00-00

$8.45

6

ARM 1

5GH-2741A-10-00

Unavailable

7

BOLT(3KJ)

90109-063F5-00

$5.86

8

WASHER, PLATE(36Y)

90201-063J2-00

$4.15

9

NUT(6TA)

95317-06600-00

$2.52

10

GROMMET(3SX)

90480-14532-00

$4.07

11

COVER 3

3B4-28239-02-00

Unavailable

12

SEAL 2

3B4-21735-00-00

Unavailable

13

BOLT(3KJ)

90109-063F1-00

$2.15

14

BOLT, HEXAGON SOCKET HEAD(3HE)

90110-06200-00

$5.86

15

BOLT, HEXAGON SOCKET HEAD(1KF)

90110-06104-00

Unavailable

16

WASHER, PLATE

90201-06557-00

Unavailable

17

NUT, NYLON

95707-06300-00

Unavailable

18

COVER 2

3B4-27463-01-00

Unavailable

19

ARM 1

5GH-2741A-10-00

Unavailable

20

BOLT(3KJ)

90109-063F5-00

$5.86

21

WASHER, PLATE(36Y)

90201-063J2-00

$4.15

22

NUT(6TA)

95317-06600-00

$2.52

23

BOLT(3KJ)

90109-063F1-00

$2.15

24

BOLT, HEXAGON SOCKET HEAD(3HE)

90110-06200-00

$5.86

25

BOLT, HEXAGON SOCKET HEAD(1KF)

90110-06104-00

Unavailable

26

WASHER, PLATE

90201-06557-00

Unavailable

27

NUT, NYLON

95707-06300-00

Unavailable
