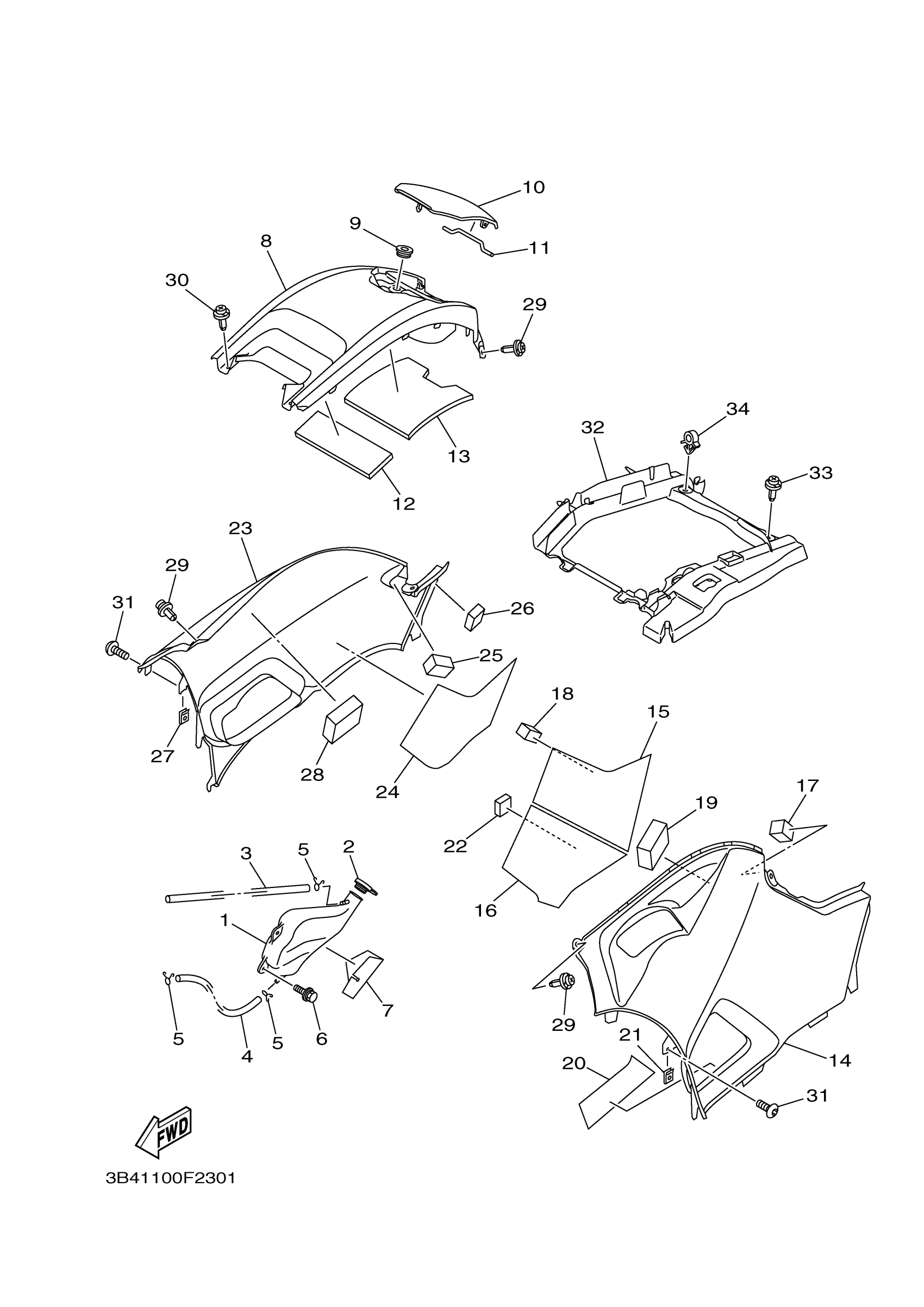

Yamaha YFM7FGPOHW (GRIZZLY 700 OUTDOORSMAN EDITION) 3B45 2007 SIDE COVER Diagram

#

Description
Price

1

TANK, RECOVERY

1HP-F1871-01-00

$14.31

2

CAP

1S3-21875-00-00

$9.12

3

HOSE (L545)

90445-09361-00

Unavailable

4

HOSE (L1500)

90445-090F6-00

$26.35

5

CLIP 101235600

90467-08003-00

$6.13

6

BOLT, WITH WASHER

90119-06152-00

$2.74

7

PLATE

1HP-F176E-01-00

$4.35

8

COVER, TOP

1HP-F171A-00-00

Unavailable

9

GROMMET(4DN)

90480-01558-00

$3.95

10

LID, COVER

1HP-F177B-00-00

Unavailable

11

PIN, HINGE

3B4-2177K-00-00

$9.97

12

DAMPER

3B4-21746-00-00

Unavailable

13

DAMPER

3B4-21747-01-00

$5.80

14

COVER, SIDE 1

3B4-21711-A0-00

$595.99

15

INSULATOR, SIDE COVER

3B4-2174A-00-00

$11.38

16

SEAL 4

3B4-2173N-00-00

$12.27

17

DAMPER

3B4-21717-00-00

$3.45

18

DAMPER

3B4-2174X-00-00

$3.45

19

DAMPER

3B4-2174Y-00-00

$6.74

20

SEAL 3

3B4-2173M-00-00

$5.63

21

NUT, SPRING(4ES)

90183-06069-00

$5.93

22

DAMPER, LOCATING 4

3B4-2177N-01-00

$24.22

23

COVER, SIDE 2

3B4-21721-A0-00

Unavailable

24

INSULATOR, SIDE CO

1HP-F174T-00-00

$8.03

25

DAMPER

3B4-21717-00-00

$3.45

26

DAMPER

3B4-2174X-00-00

$3.45

27

NUT, SPRING(4ES)

90183-06069-00

$5.93

28

DAMPER

3B4-2174Y-00-00

$6.74

29

RIVET(4JH)

90269-07076-00

$6.00

30

RIVET

90269-06081-00

$5.69

31

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

$4.40

32

DAMPER, PLATE 1

3B4-2414H-00-00

$21.14

33

RIVET

90269-07010-00

$3.75

34

CLAMP

90464-16012-00

$5.43
