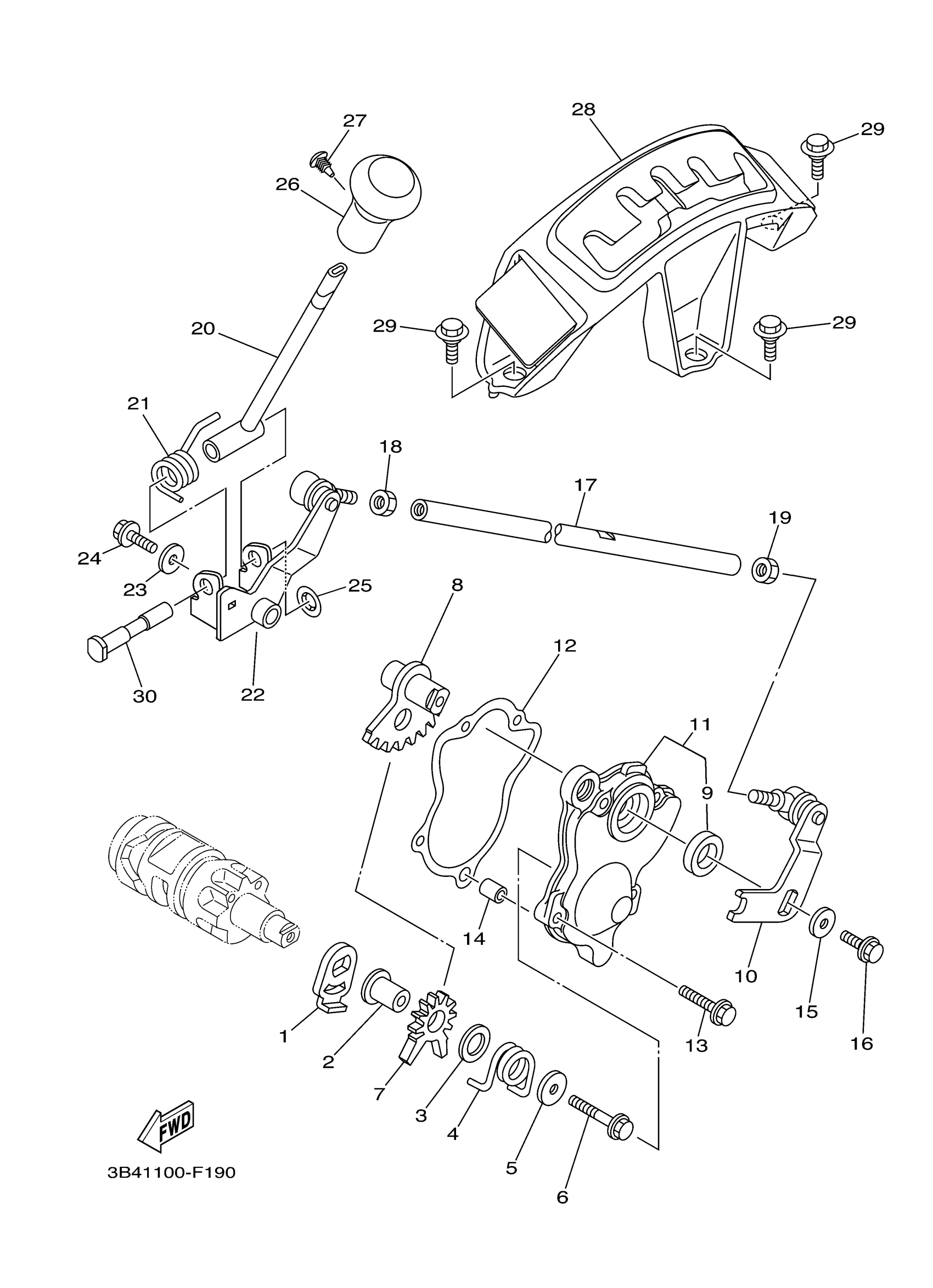

Yamaha YFM7FGPOHW (GRIZZLY 700 OUTDOORSMAN EDITION) 3B45 2007 SHIFT SHAFT Diagram

#

Description
Price

1

LEVER

4SH-18198-00-00

$19.46

2

COLLAR

90387-0613B-00

$7.26

3

WASHER, PLATE

90201-13013-00

$6.29

4

SPRING, TORSION(1YW)

90508-35764-00

$4.20

5

WASHER, PLATE

90201-06036-00

$6.26

6

95812-06035

95812-06035-00

$5.35

7

LEVER

5KM-18191-00-00

$22.14

8

SHIFT SHAFT COMP.

3B4-18103-01-00

Unavailable

9

OIL SEAL (3X3)

93102-15212-00

$7.34

10

SHIFT GUIDE COMP.

3B4-18104-20-00

Unavailable

11

SHIFTER BRKT. ASSY

3B4-18380-00-00

$103.31

12

GASKET

3B4-18146-00-00

$5.93

13

BOLT, FLANGE

95022-06020-00

$3.32

14

PIN, DOWEL

99530-08012-00

$6.62

15

WASHER, PLATE

90201-06036-00

$6.26

16

BOLT, FLANGE

95817-06016-00

$1.49

17

ROD, SHIFT

3B4-18115-00-00

Unavailable

18

NUT(1KT)

90170-08358-00

$6.68

19

. NUT

95380-08700-00

$2.89

20

LEVER COMP. 1

3B4-18190-01-00

Unavailable

21

SPRING, RETURN

3B4-18196-01-00

$6.89

22

ARM, SHIFT 2

3B4-18169-01-00

Unavailable

23

WASHER, PLATE

90201-06036-00

$6.26

24

BOLT, FLANGE

95817-06016-00

$1.49

25

NUT, SPRING

90183-080A1-00

$6.25

26

KNOB, SHIFT LEVER

3B4-18174-01-00

Unavailable

27

RIVET(81E)

90269-05055-00

$7.02

28

SHIFT GUIDE ASSY

3B4-18160-00-00

$47.92

29

BOLT(3KJ)

90109-063F1-00

$2.24

30

SHAFT, SHIFT

3B4-18125-00-00

$10.09
