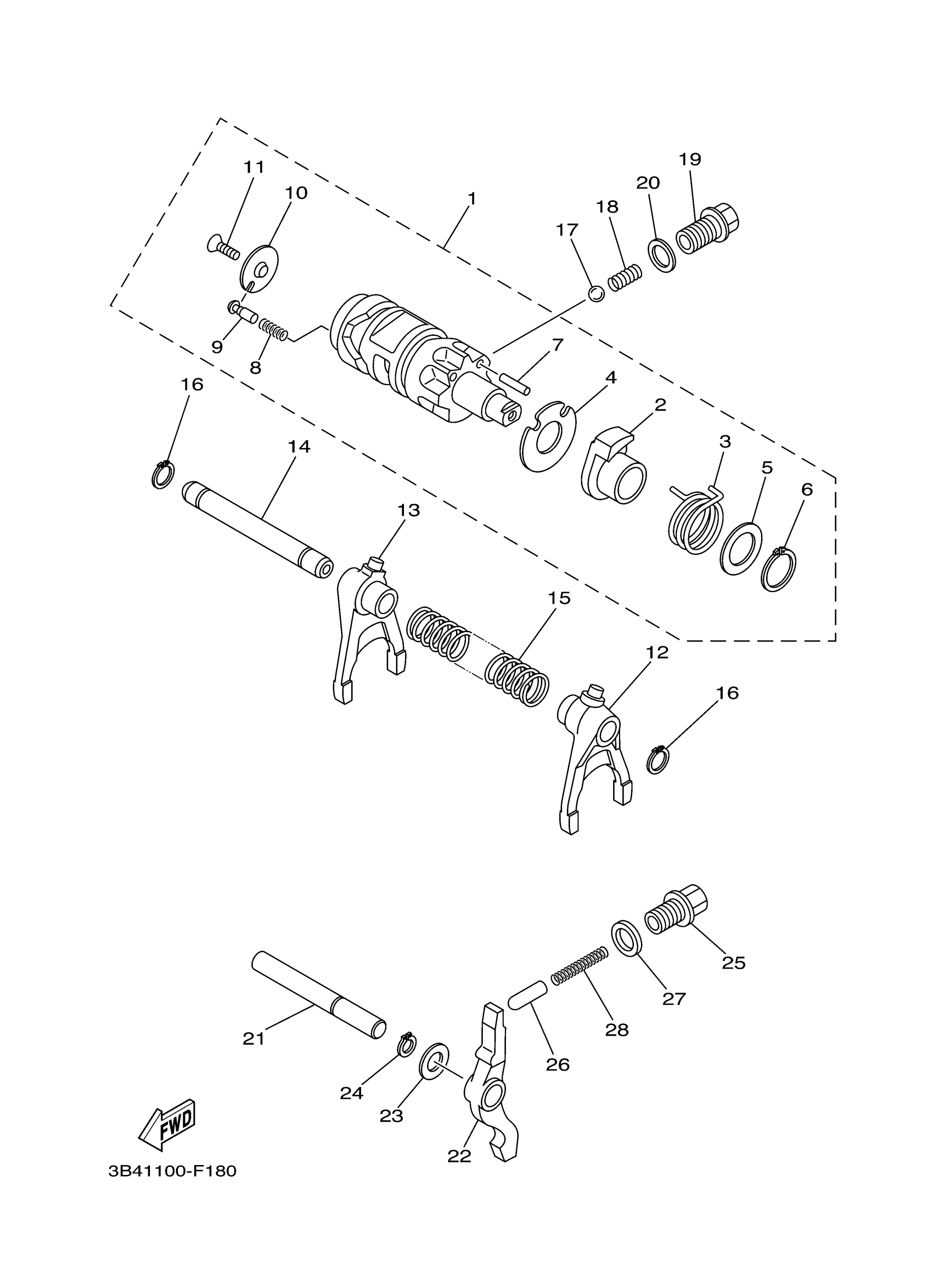

Yamaha YFM7FGPOHW (GRIZZLY 700 OUTDOORSMAN EDITION) 3B45 2007 SHIFT CAM FORK Diagram

#

Description
Price

1

SHIFT CAM ASSY

3B4-18540-00-00

Unavailable

2

CAM, LEVER

5KM-18171-00-00

$42.65

3

SPRING, TORSION

90508-32018-00

Unavailable

4

PLATE, SHIFT CAM

3B4-18331-00-00

$2.78

5

WASHER, PLATE (3Y1)

90201-20792-00

$7.26

6

CIRCLIP (525)

93410-20038-00

$2.62

7

PIN, DOWEL (363)

93604-18100-00

$2.22

8

SPRING COMPRESSION278185450000

90501-06022-00

$6.17

9

POINT, NEUTRAL

5KM-18542-00-00

$12.68

10

PLATE, SIDE 2

4UN-18566-00-00

$17.29

11

SCREW

90149-05015-00

$5.26

12

FORK, SHIFT 1

3B4-18511-00-00

$120.78

13

FORK, SHIFT 2

3B4-18512-00-00

Unavailable

14

BAR, SHIFT FORK GUIDE 1

3B4-18531-00-00

$17.68

15

SPRING, COMPRESSION

90501-120A6-00

$2.03

16

CIRCLIP(10Y)

99009-12400-00

$3.08

17

BALL

93503-08007-00

$2.35

18

SPRING, COMPRESSION (465)

90501-10353-00

$6.86

19

BOLT, FLANGE

90105-14003-00

$6.63

20

GASKET(59V)

90430-14194-00

$6.17

21

SHAFT, SHIFTER

3B4-18318-00-00

$11.29

22

LEVER, STOPPER

3B4-18148-00-00

$72.32

23

WASHER, PLATE(55K)

90201-127J6-00

$5.66

24

CIRCLIP(10Y)

99009-12400-00

$3.08

25

BOLT

90109-14002-00

$10.29

26

STOPPER, CAM

1J7-18547-00-00

$9.00

27

GASKET 256131670000

90430-14043-00

$6.46

28

SPRING, COMPRESSION

90501-12004-00

$5.38
