Description

Price

1

REAR WHEEL COMP.

2BG-F5390-10-00

$250.34

2

AT25X10.00-12 MU20

94110-12814-00

$228.43

3

VALVE, RIM(2GH)

93900-00030-00

$14.46

4

NUT

90179-10007-00

$5.38

5

HUB ASSY 2

B16-F510D-03-00

$51.07

6

BOLT, SERRATION

90114-10014-00

$2.74

7

REAR KNUCKLE ASSY.,2

3B4-2532F-00-00

$483.69

8

BEARING

93305-00602-00

$98.89

9

CIRCLIP

99009-55500-00

$7.26

10

BUSH, SOLID(2NL)

90381-17067-00

$12.49

11

NIPPLE, GREASE

93700-06M03-00

$7.15

12

RING, WHEEL 2 (RIGHT)

3B4-2515A-00-00

$11.95

13

PLATE 2

3B4-2539G-00-00

$21.37

14

RIVET, BLIND(8CH)

90267-47187-00

$1.84

15

WASHER, PLATE

90201-04027-00

$1.88

16

SCREW, BINDING (31K)

90154-06014-00

$7.68

17

SPACER

5KM-23448-00-00

$15.04

18

COVER, THRUST 1

3JN-23517-00-00

$3.92

19

BOLT, WASHER BASED(2NL)

90105-10480-00

$6.91

20

NUT, SELFLOCKING (533 FRAME)

90185-10060-00

$6.02

21

WASHER, PLATE(47X)

90201-101J1-00

$6.17

22

DOUBLE OFF SET JOINT

3B4-2530V-00-00

$199.11

23

BALL JOINT SET

3B4-2510F-00-00

$495.78

24

BOOT SET(DOUBLE OFFSET JOINT)

3B4-2510H-00-00

$54.64

25

BOOT SET (BALL JOINT)

3B4-2510G-00-00

$53.99

26

SHAFT

3B4-2518E-10-00

$177.71

27

BOOT BAND(DOUBLE OFFSET JOINT)

3B4-2511H-00-00

$12.09

28

BOOT BAND (SMALL)

3B4-2512G-00-00

$10.48

29

BOOT BAND (BALL JOINT)

3B4-2511G-00-00

$7.05

30

SNAP RING

3B4-2512J-00-00

$8.12

31

CIRCLIP

3B4-2512H-00-00

$5.12

32

CIRCLIP

3B4-25182-00-00

$5.03

33

CLIP, SPRING

3B4-2536E-00-00

$6.43

34

NUT

90179-20016-00

$11.20

35

CAP, WHEEL

1HP-F512A-00-00

$1.74

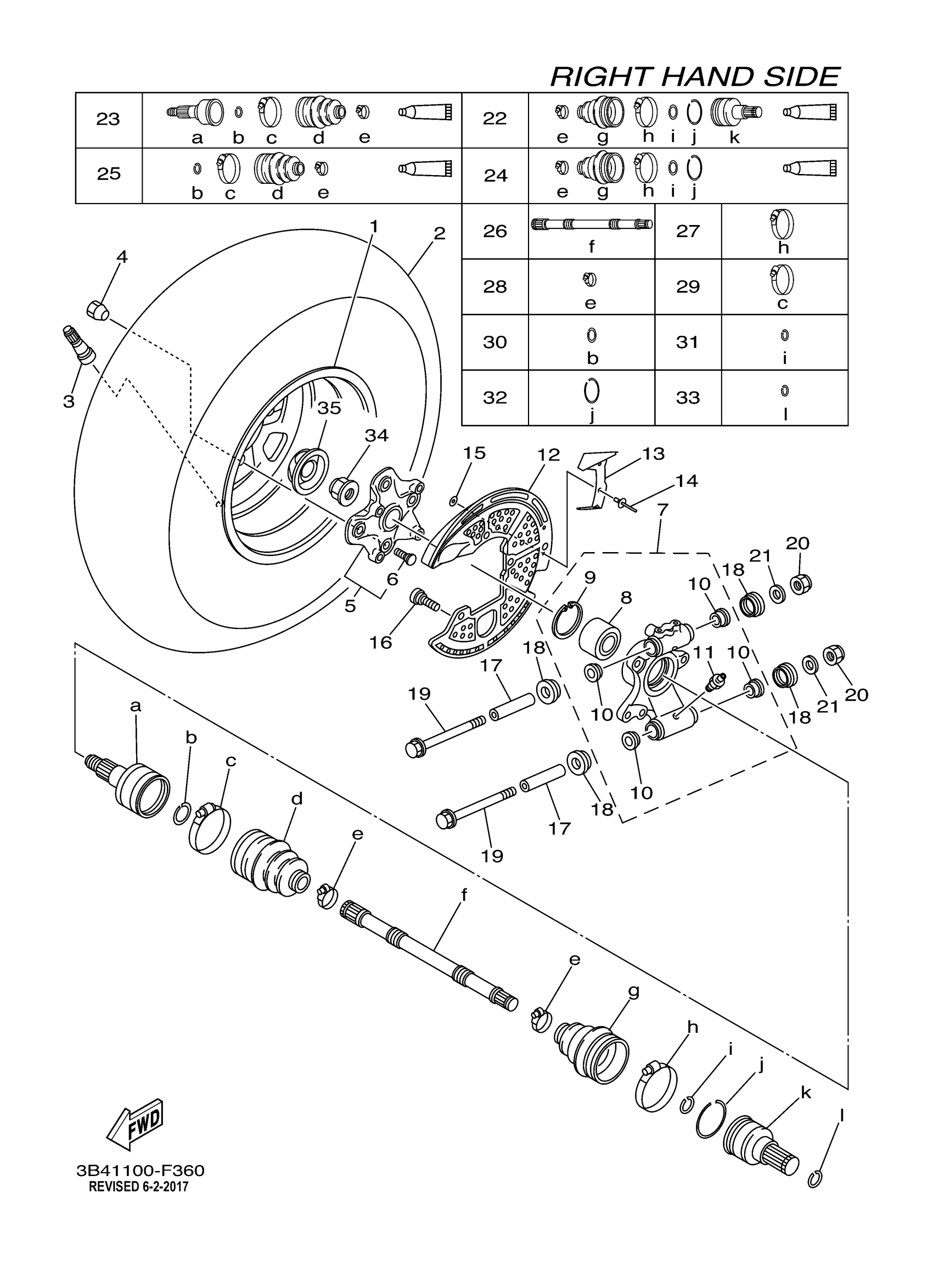

Yamaha YFM7FGPOHW (GRIZZLY 700 OUTDOORSMAN EDITION) 3B45 2007 REAR WHEEL 2 Diagram
