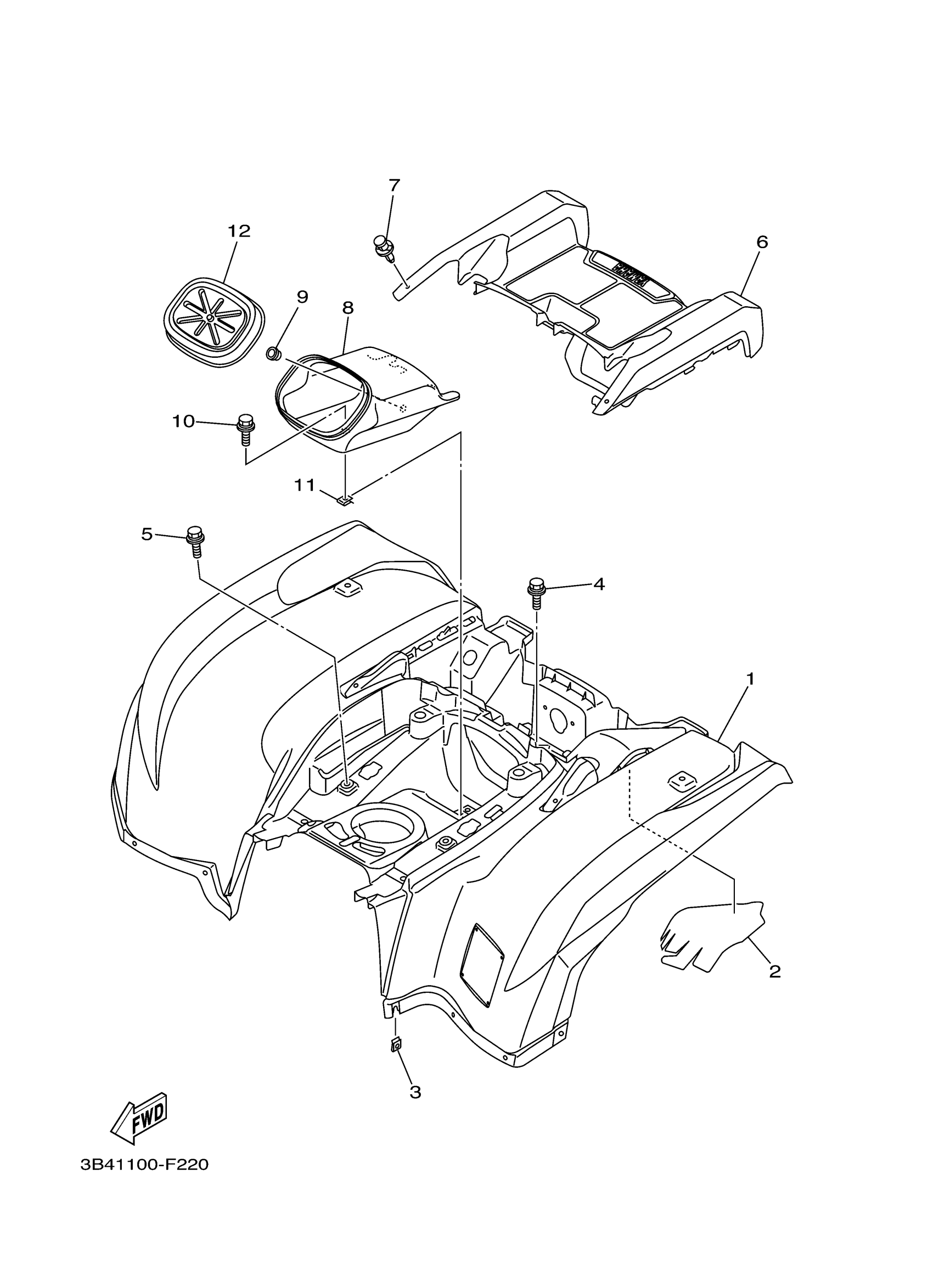

Yamaha YFM7FGPOHW (GRIZZLY 700 OUTDOORSMAN EDITION) 3B45 2007 REAR FENDER Diagram

#

Description
Price

1

REAR FENDER COMP.

3B4-W2161-A0-00

Unavailable

2

PROTECTOR

3B4-21652-01-00

Unavailable

3

NUT, SPRING(4ES)

90183-06069-00

$5.69

4

BOLT, WITH WASHER

90119-06152-00

$2.56

5

BOLT, WITH WASHER

90119-06152-00

$2.56

6

COVER, REAR FENDER

3B4-21651-01-00

$196.24

7

RIVET

90269-07010-00

$3.49

8

BOX

1HP-F160E-00-00

$85.59

9

PLUG (10V)

90338-09130-00

$5.53

10

BOLT, WITH WASHER

90119-06152-00

$2.56

11

NUT, SPRING(4ES)

90183-06069-00

$5.69

12

LID

1HP-F160F-00-00

$3.49
