Description

Price

1

ARM,REAR 1

1HP-F2171-01-00

$32.11

2

BUSH

1HP-F3526-00-00

$21.28

3

BOLT, FLANGE

90105-10222-00

$5.14

4

WASHER

5KM-22149-00-00

$6.58

5

ARM, REAR 2

1HP-F2172-01-00

$31.70

6

BUSH

1HP-F3526-00-00

$21.28

7

BOLT, FLANGE

90105-10222-00

$5.14

8

WASHER

5KM-22149-00-00

$6.58

9

ARM 1

1HP-F217M-01-00

$60.69

10

BUSH

1HP-F3526-00-00

$21.28

11

BOLT, FLANGE

90105-10222-00

$5.14

12

WASHER

5KM-22149-00-00

$6.58

13

ARM 2

1HP-F217N-01-00

$60.69

14

BUSH

1HP-F3526-00-00

$21.28

15

BOLT, FLANGE

90105-10222-00

$5.14

16

WASHER

5KM-22149-00-00

$6.58

17

NUT, SELFLOCKING (533 FRAME)

90185-10060-00

$6.02

18

COVER, THRUST 1

3B4-22128-00-00

$14.25

19

BOLT, HEXAGON SOCKET HEAD(3HE)

90110-06200-00

$6.28

20

NUT, NYLON

95707-06300-00

$3.20

21

COVER, THRUST 2

3B4-22129-00-00

$14.25

22

BOLT, HEXAGON SOCKET HEAD(3HE)

90110-06200-00

$6.28

23

NUT, NYLON

95707-06300-00

$3.20

24

HOLDER, BRAKE HOSE 1

3B4-25875-00-00

$3.23

25

BOLT(3KJ)

90109-063F1-00

$2.24

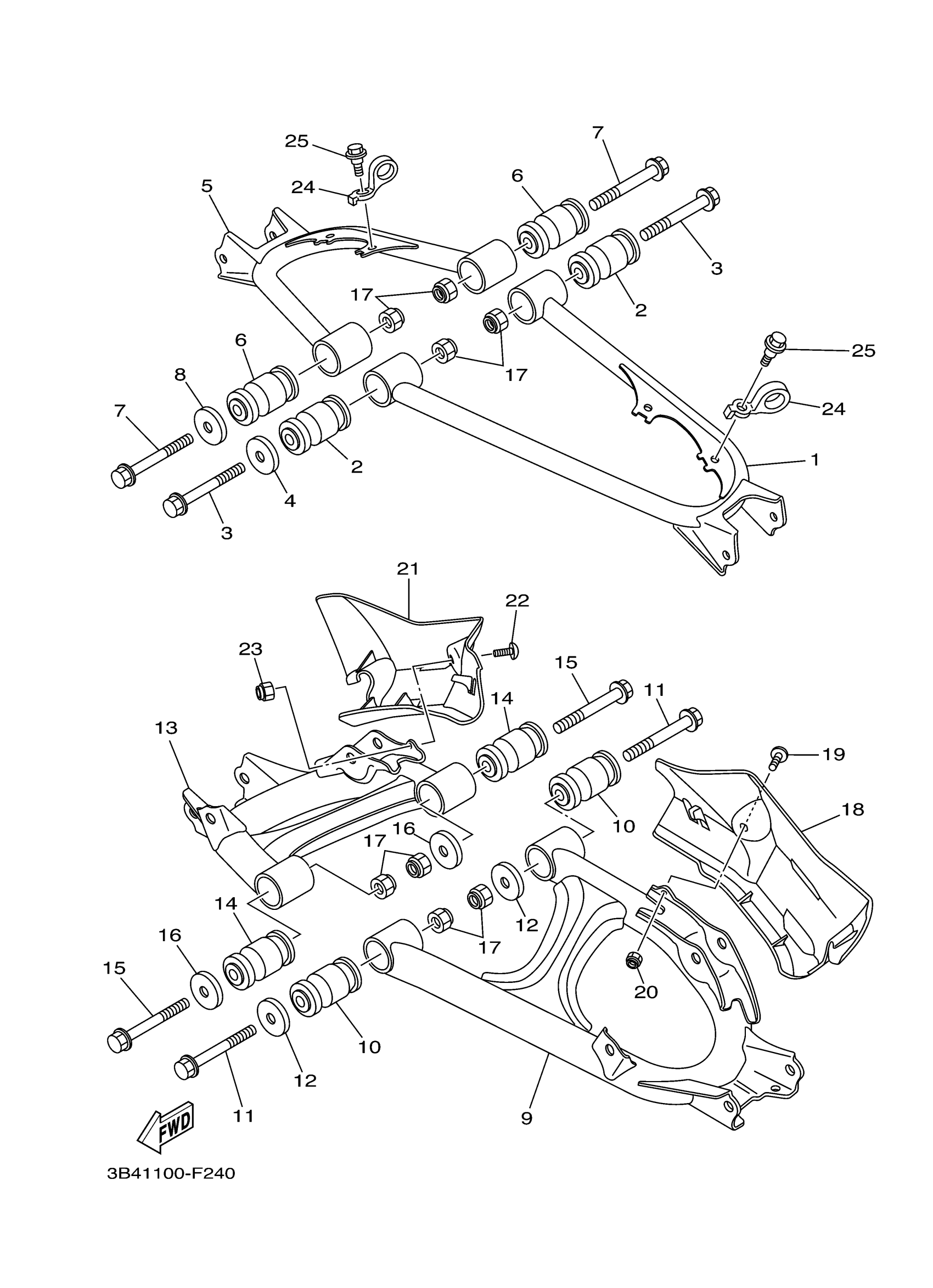

Yamaha YFM7FGPOHW (GRIZZLY 700 OUTDOORSMAN EDITION) 3B45 2007 REAR ARM Diagram
