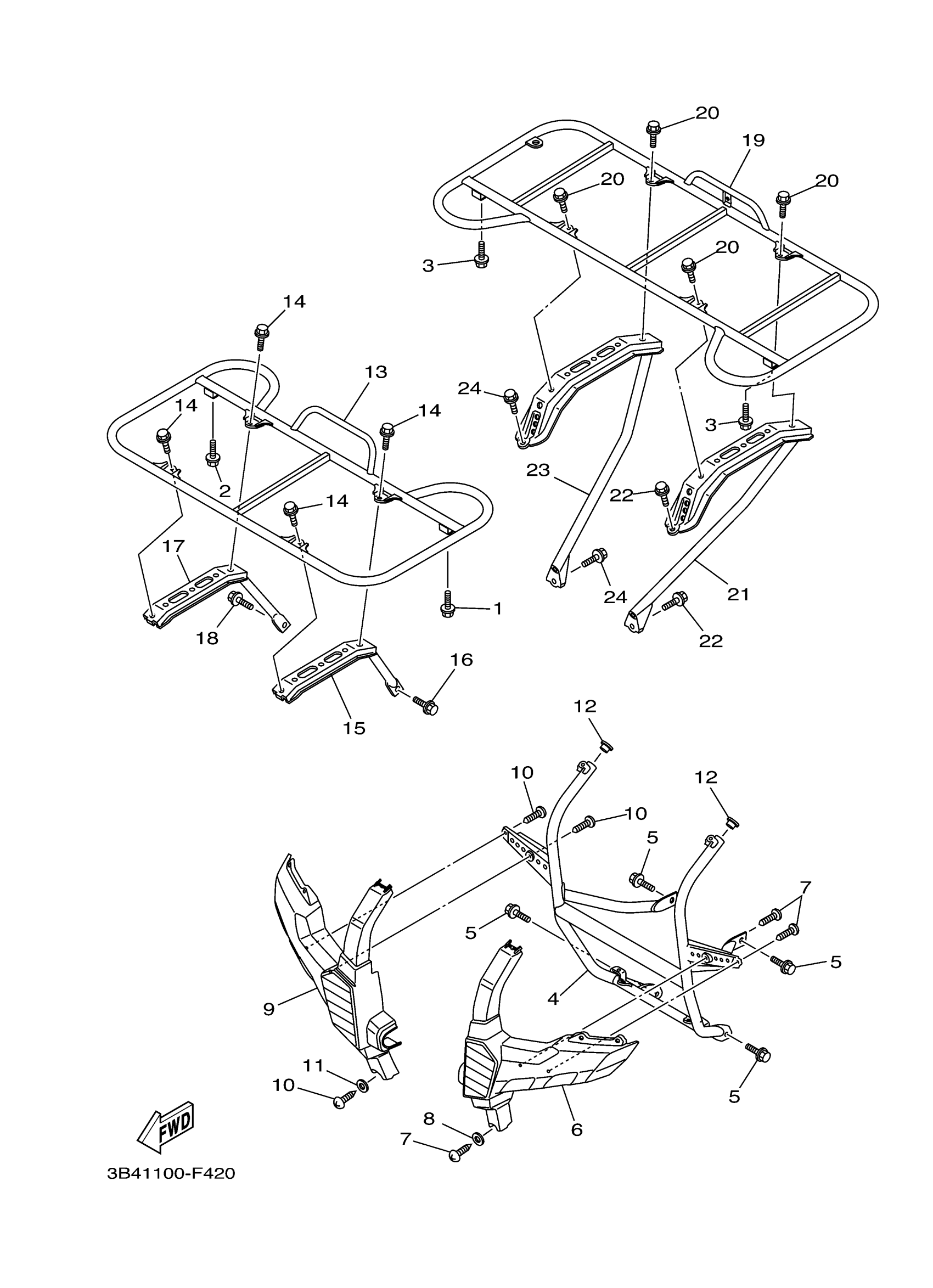

Yamaha YFM7FGPOHW (GRIZZLY 700 OUTDOORSMAN EDITION) 3B45 2007 GUARD Diagram

#

Description
Price

1

BOLT, WITH WASHER

90119-06152-00

$2.74

2

BOLT, WITH WASHER

90119-06152-00

$2.74

3

BOLT, WITH WASHER

90119-06152-00

$2.74

4

BAR, CARRY FRONT

1HP-F845N-01-00

Unavailable

5

BOLT, FLANGE

95817-08014-00

$1.94

6

COVER 1

3B4-2842M-00-00

$39.88

7

SCREW, PAN HEAD TAPPING (AK5)

97780-50116-00

$1.33

8

. WASHER, PLAIN

92990-05200-00

$5.08

9

COVER 2

3B4-2842N-00-00

$27.71

10

SCREW, PAN HEAD TAPPING (AK5)

97780-50116-00

$1.33

11

. WASHER, PLAIN

92990-05200-00

$5.08

12

PLUG (5R2)

90338-18122-00

$6.71

13

CARRIER, FRONT

1HP-F4841-00-00

Unavailable

14

BOLT, FLANGE

95817-08014-00

$1.94

15

STAY, FRONT CARRIE

1HP-F4821-00-00

Unavailable

16

BOLT, FLANGE

95817-08014-00

$1.94

17

STAY, FRONT CARRIE

1HP-F4822-00-00

Unavailable

18

BOLT, FLANGE

95817-08014-00

$1.94

19

CARRIER, REAR

1HP-F4842-00-00

$201.95

20

BOLT, FLANGE

95817-08014-00

$1.94

21

FRAME, CARRIER 1

1HP-F482J-00-00

$614.99

22

BOLT, WITH WASHER

90119-10033-00

$4.28

23

FRAME, CARRIER 2

1HP-F482K-00-00

$382.62

24

BOLT, WITH WASHER

90119-10033-00

$4.28
