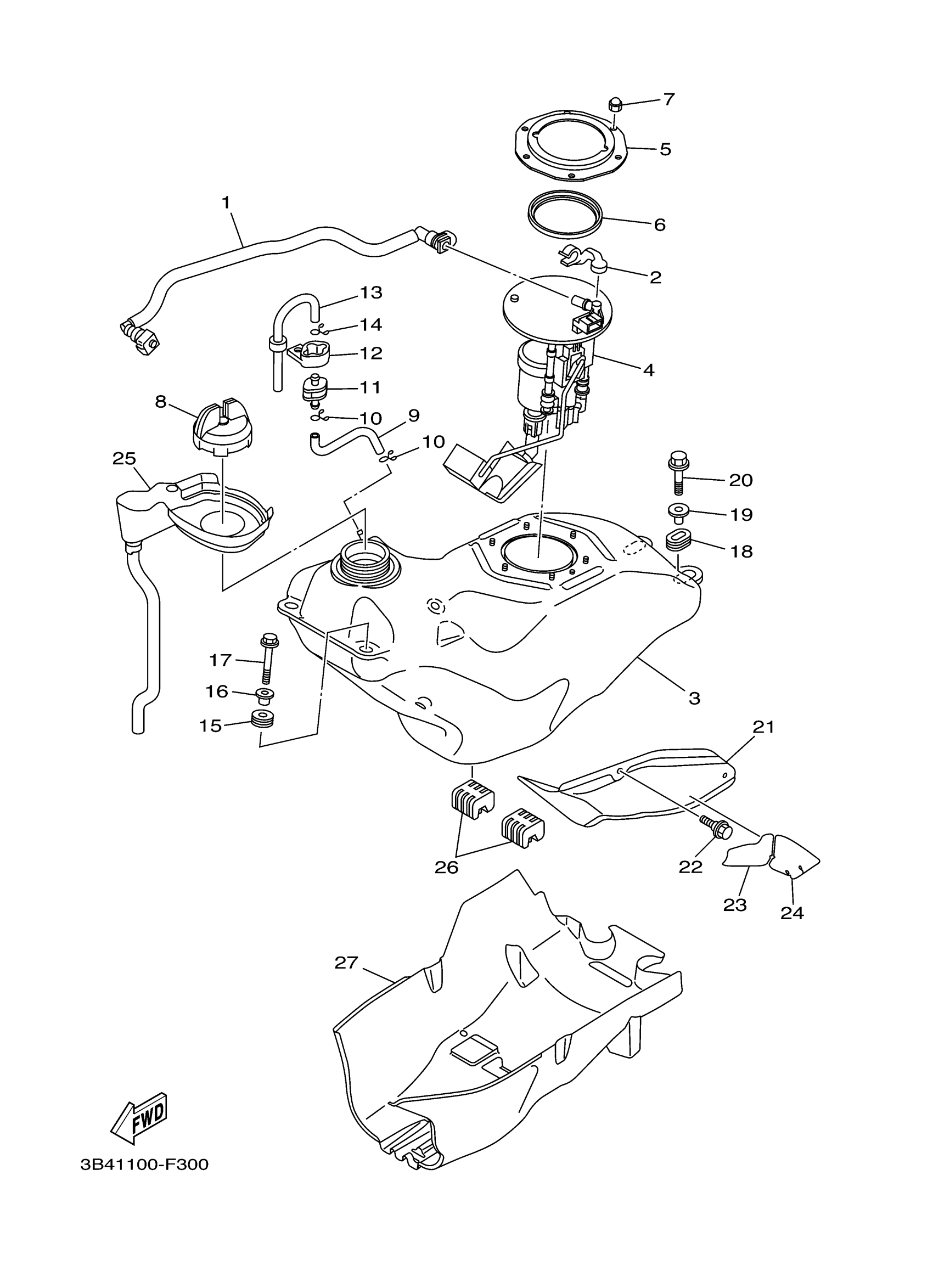

Yamaha YFM7FGPOHW (GRIZZLY 700 OUTDOORSMAN EDITION) 3B45 2007 FUEL TANK Diagram

#

Description
Price

1

PIPE, FUEL 1

3B4-13971-11-00

$63.34

2

CLAMP

90464-14004-00

$5.40

3

FUEL TANK COMP.

3B4-24110-00-00

Unavailable

4

Fuel Pump Comp

3B4-13907-13-00

$277.31

5

BRACKET, FUEL PUMP

3B4-24491-00-00

$18.97

6

O-RING

1S3-24486-00-00

$15.04

7

NUT(4MY)

95307-06800-00

$2.86

8

CAP ASSY

3B4-24610-10-00

$116.80

9

PIPE 2

3B4-24312-00-00

Unavailable

10

CLIP

90467-090A2-00

$2.51

11

PIPE JOINT ASSY

3B4-24380-11-00

$41.29

12

BAND 1

3B4-24398-00-00

$7.75

13

PIPE 3

3B4-24313-00-00

Unavailable

14

CLIP

90467-090A2-00

$2.51

15

GROMMET (4V1)

90480-18290-00

$7.02

16

COLLAR (36R)

90387-066J1-00

$6.86

17

BOLT, FLANGE

95817-06030-00

$3.91

18

GROMMET(38W)

90480-01400-00

$10.06

19

COLLAR (17W)

90387-075H4-00

$6.45

20

BOLT, FLANGE

95817-06030-00

$3.91

21

COVER, SIDE 1

3B4-24129-00-00

$20.40

22

BOLT(3KJ)

90109-063F1-00

$2.24

23

DAMPER, PLATE 2

1HP-F414J-00-00

Unavailable

24

DAMPER, PLATE 3

1HP-F414K-00-00

Unavailable

25

COVER, FILLER COMP.

3B4-2414F-00-00

$54.65

26

DAMPER, LOCATING 1

3B4-24181-00-00

$5.77

27

PROTECTOR, FUEL TANK

3B4-24141-01-00

$35.45
