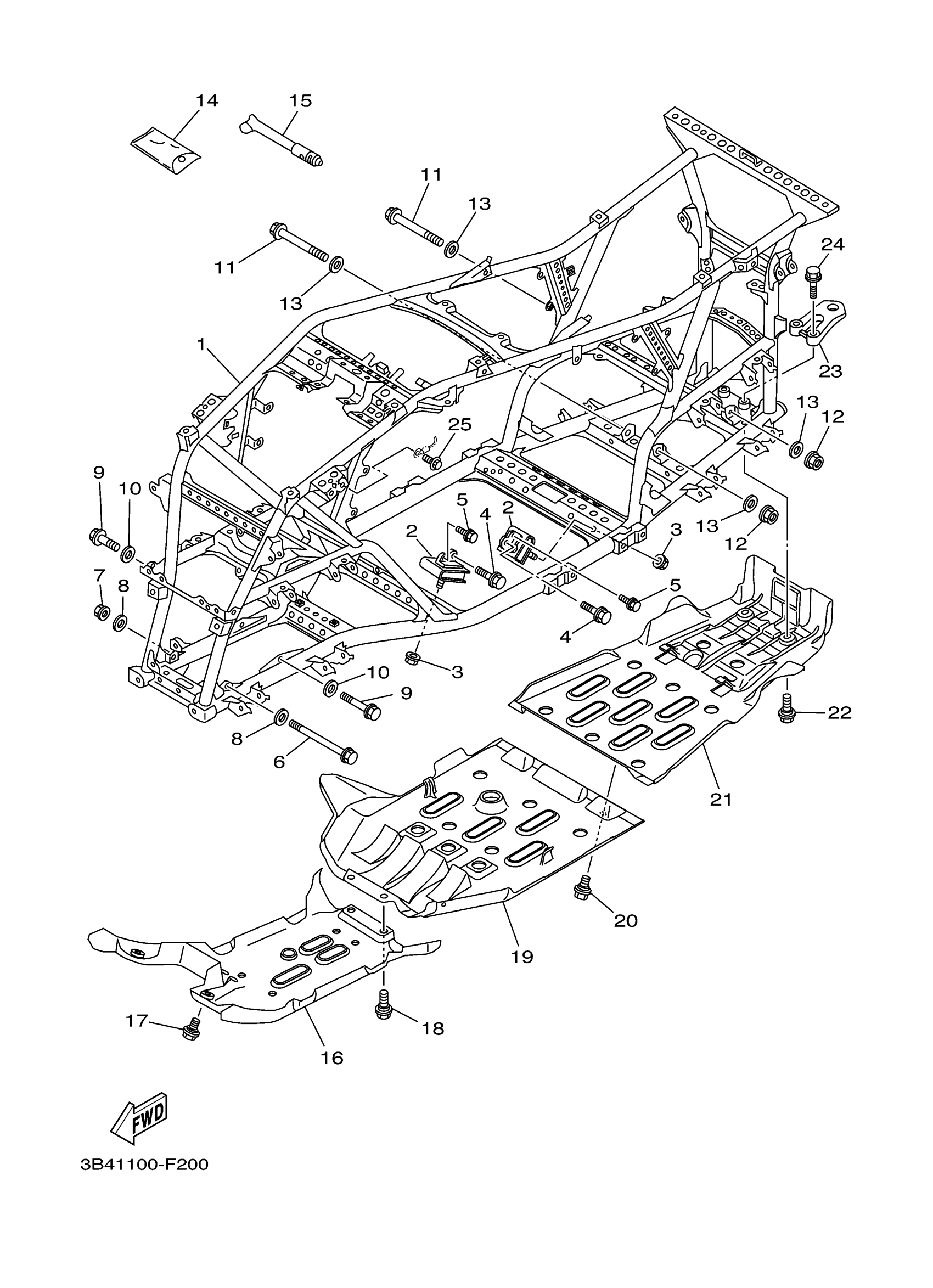

Yamaha YFM7FGPOHW (GRIZZLY 700 OUTDOORSMAN EDITION) 3B45 2007 FRAME Diagram

#

Description
Price

1

FRAME COMPLETE

1HP-F1110-A9-00

Unavailable

2

DAMPER, RUBBER 1

3B4-21485-01-00

$40.01

3

NUT, S/L FLANGE

95602-10200-00

$2.29

4

BOLT, FLANGE

95812-10035-00

$4.86

5

BOLT, FLANGE(2UJ)

95024-06016-00

$6.68

6

BOLT, FLANGE

90105-10110-00

$8.31

7

NUT, SELF-LOCKING

90185-10011-00

$3.92

8

WASHER, PLATE(47X)

90201-101J1-00

$6.17

9

BOLT, FLANGE

95817-10030-00

$6.17

10

WASHER, PLATE(47X)

90201-101J1-00

$6.17

11

BOLT, FLANGE

90105-10073-00

Unavailable

12

NUT, SELF-LOCKING

90185-10011-00

$3.92

13

WASHER, PLATE(47X)

90201-101J1-00

$6.17

14

TOOL KIT

5TG-28100-00-00

Unavailable

15

GAUGE, AIR

1NV-2811A-01-00

$49.11

16

GUARD, ENGINE 1

1HP-F147A-01-00

Unavailable

17

BOLT

90109-06086-00

$4.91

18

BOLT(3KJ)

90109-063F5-00

$6.29

19

GUARD, ENGINE 2

1HP-F147E-02-00

$29.29

20

BOLT(3KJ)

90109-063F5-00

$6.29

21

GUARD, ENGINE 3

1HP-F147F-01-00

Unavailable

22

BOLT

90109-06086-00

$4.91

23

HOOK

1HP-F8488-00-00

$21.26

24

BOLT, FLANGE

95817-10035-00

$6.85

25

BOLT, FLANGE

95817-06012-00

$1.49
