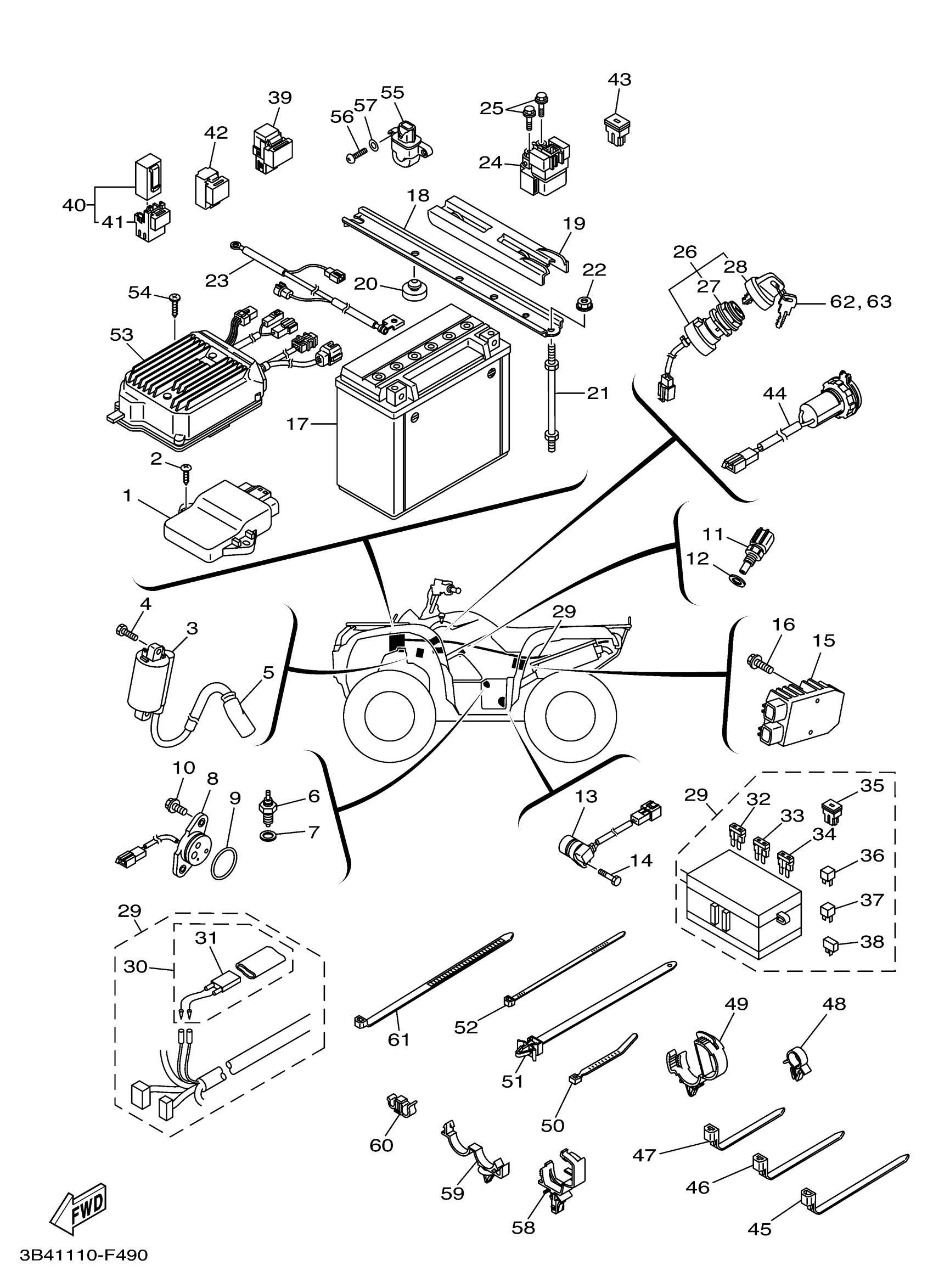

Yamaha YFM7FGPOHW (GRIZZLY 700 OUTDOORSMAN EDITION) 3B45 2007 ELECTRICAL 1 Diagram

#

Description
Price

1

ENGINE CONTROL UNIT ASSY

3B4-8591A-03-00

Unavailable

2

SCREW, TAPPING

97702-60025-00

$6.26

3

IGNITION COIL ASSY

4DN-82320-01-00

$97.02

4

BOLT(3JK)

97027-05020-00

$2.48

5

PLUG CAP ASSY

5VK-82370-00-00

$56.94

6

NEUTRAL SWITCH ASSY

3GB-82540-01-00

$52.07

7

GASKET (1KH,1.0T)

90430-10148-00

$4.74

8

NEUTRAL SWITCH ASSY

3B4-82540-03-00

$68.10

9

O-RING (371)

93210-29196-00

$6.45

10

BOLT, WITH WASHER

90119-06137-00

$6.25

11

THERMOSENSOR ASSY

8CC-85790-01-00

$86.91

12

GASKET(2GH)

90430-12202-00

$7.09

13

SENSOR, SPEED

3B4-83755-01-00

$115.46

14

BOLT,SOCKET HEAD

91314-06020-00

$2.05

15

RECTIFIER & REGULATOR ASSY

1D7-81960-01-00

$277.19

16

BOLT, FLANGE

95817-06020-00

$2.69

17

BATTERY ASSY (YUASA YTX20L-BS)

YTX-20LBS-00-00

$165.99

18

BRACKET, BATTERY

1HP-H2128-00-00

$6.11

19

COVER, BATTERY

3B4-82129-00-00

$6.46

20

PAD, SEAT

22W-24741-00-00

$7.72

21

SCREW, FITTING

3B4-82133-10-00

$24.57

22

NUT, FLANGE

95702-06500-00

$1.98

23

WIRE, MINUS LEAD

3B4-82116-10-00

$47.08

24

STARTER RELAY ASSY (2768113-A)

3B4-81940-00-00

$76.02

25

BOLT, FLANGE

95022-06008-00

$6.26

26

MAIN SWITCH ASSY

3B4-82510-01-00

Unavailable

27

NUT, MAIN SWITCH

3HN-82569-00-00

$5.26

28

CAP, KEY

3HN-82579-00-00

$12.27

29

WIRE HARNESS ASSY

3B4-82590-00-00

Unavailable

30

CIRCUIT BREAKER ASSY

5GT-82180-00-00

$27.83

31

THERMO SWITCH ASSY

4GB-82560-00-00

$33.54

32

FUSE (15A)

67F-82151-50-00

$3.71

33

. FUSE (10A)

67F-82151-40-00

$6.67

34

FUSE (5A)

67F-82151-20-00

$6.00

35

SLOW BLOW FUSE

JR9-82151-00-00

$9.62

36

DIODE ASSY

4WA-81980-00-00

$25.93

37

DIODE ASSY

5TJ-81980-00-00

$22.51

38

DIODE ASSY

5VG-81980-00-00

$15.91

39

RELAY ASSY

5DM-81950-01-00

$24.72

40

RELAY ASSY (5EA-02)

5EA-81950-20-00

$49.46

41

HOLDER,RELAY

5EA-81952-00-00

$6.72

42

RELAY ASSY (29U-93)

29U-81950-93-00

$67.77

43

SLOW BLOW FUSE

JR9-82151-00-00

$9.62

44

TERMINAL COMP.

1HP-H254B-10-00

$15.91

45

CLAMP(4FM)

90464-15195-00

$2.77

46

CLAMP(4FM)

90464-15195-00

$2.77

47

CLAMP

90464-25004-00

$2.30

48

CLAMP(3XV)

90464-15157-00

$6.17

49

CLAMP(4AP)

90464-20181-00

$2.80

50

CLAMP

90465-10098-00

$2.24

51

CLAMP(2TV)

90464-10112-00

$6.18

52

CLAMP

5Y9-12491-00-00

$6.38

53

POWER STEERING CONT. UNIT ASSY

3B4-859A0-00-00

Unavailable

54

SCREW, BIND (J17)

98980-06020-00

$6.68

55

LEAN ANGLE SENSOR

3B4-82576-00-00

$88.69

56

BOLT(6A1)

97095-05016-00

$1.46

57

WASHER, PLAIN (646)

92990-05600-00

Unavailable

58

CLAMP(4SV)

90464-20237-00

$1.78

59

CLAMP

90464-20010-00

$2.17

60

CLAMP

90464-09013-00

$4.15

61

BAND, SWITCH CORD

25G-83936-01-00

$4.12

62

KEY BLANK (A-TYPE)

90890-560001-00

Unavailable

63

KEY BLANK (B-TYPE)

90890-560002-00

Unavailable
