Description

Price

1

CRANKSHAFT ASSY

3B4-11400-00-00

$989.20

2

CRANK SUB ASSY 1

3B4-11401-09-00

$334.05

3

CRANK SUB ASSY 2

3B4-11402-09-00

$258.72

4

PIN, CRANK 1

1S3-11681-00-00

$88.69

5

BEARING

93310-84017-00

$91.41

6

ROD, CONNECTING

1S3-11651-00-00

$130.67

7

GEAR, DRIVE

5KM-11536-10-00

$119.18

8

WASHER, BEARING COVER

5KM-11565-00-00

$11.35

9

SPRING, COMPRESSION

90501-220A1-00

$6.09

10

PIN, DOWEL

93606-09002-00

$3.09

11

CIRCLIP(6U2)

93410-35M10-00

$4.54

12

KEY, WOODRUFF

90280-05001-00

$10.68

13

WASHER, PLATE(10L)

90201-165H4-00

$7.72

14

NUT

90179-16004-00

$13.69

15

BEARING

93306-30810-00

$65.73

16

PISTON (STD)

1S3-11631-10-00

$144.93

17

PISTON RING SET (STD)

1S3-11603-10-00

$51.87

18

PIN, PISTON

5VK-11633-00-00

$36.42

19

CIRCLIP

93450-24154-00

$2.86

20

SPACER 1

3B4-16181-00-00

$97.23

21

SEAL, CRANK

3B4-11447-00-00

$30.64

22

WEIGHT 1

3B4-11454-00-00

$156.95

23

GEAR, BALANCE WEIGHT

3B4-11531-00-00

$94.85

24

SPROCKET, DRIVE

3B4-13354-00-00

Unavailable

25

KEY, STRAIGHT

90282-05007-00

$10.40

26

NUT

90170-18003-00

$11.86

27

WASHER, LOCK

90215-18001-00

$9.65

28

BEARING(3RR)

93306-30560-00

$71.07

29

BRG,R-B 6304C3 52MM 144G KY

93306-30421-00

$54.91

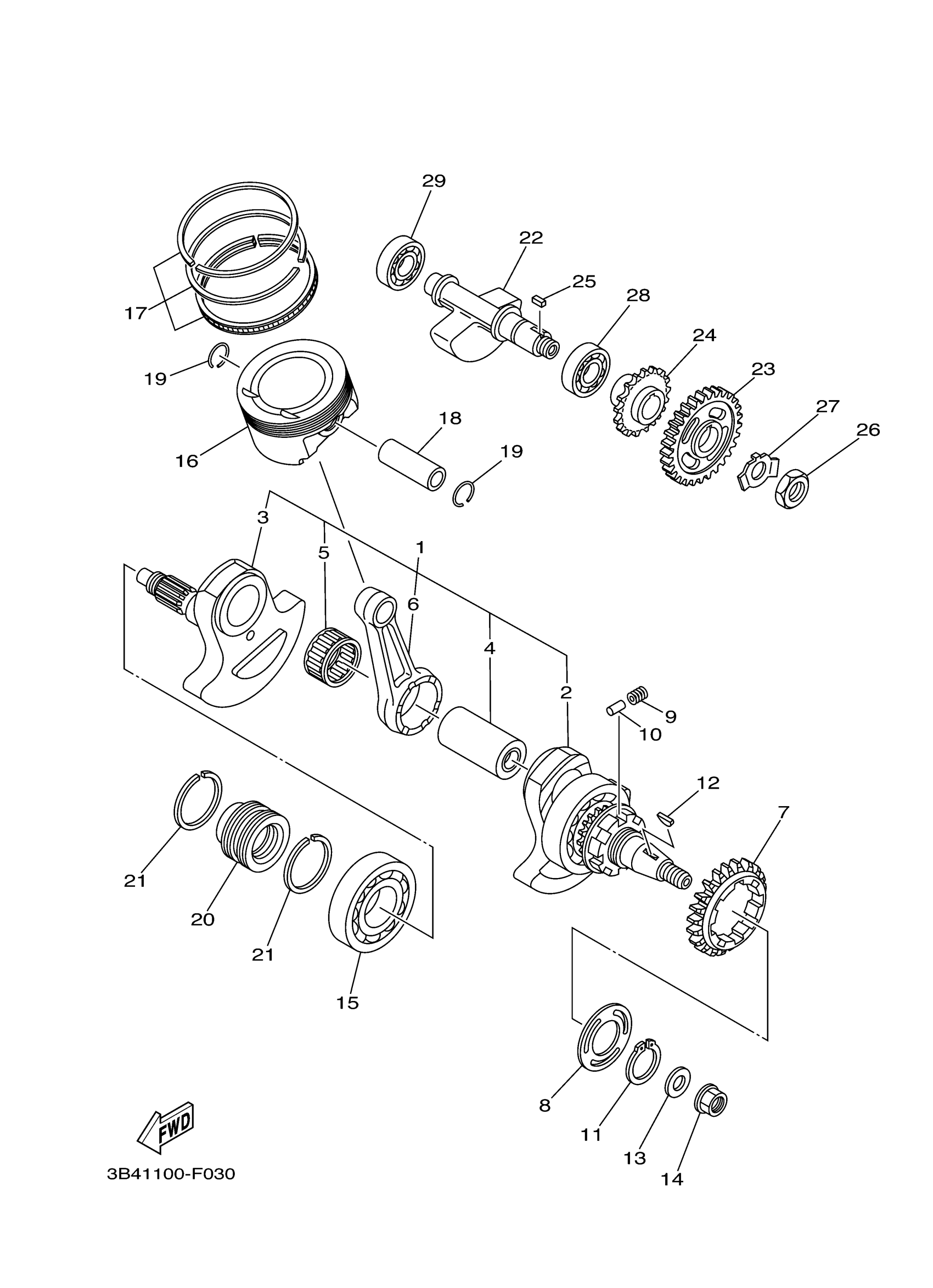

Yamaha YFM7FGPOHW (GRIZZLY 700 OUTDOORSMAN EDITION) 3B45 2007 CRANKSHAFT PISTON Diagram
