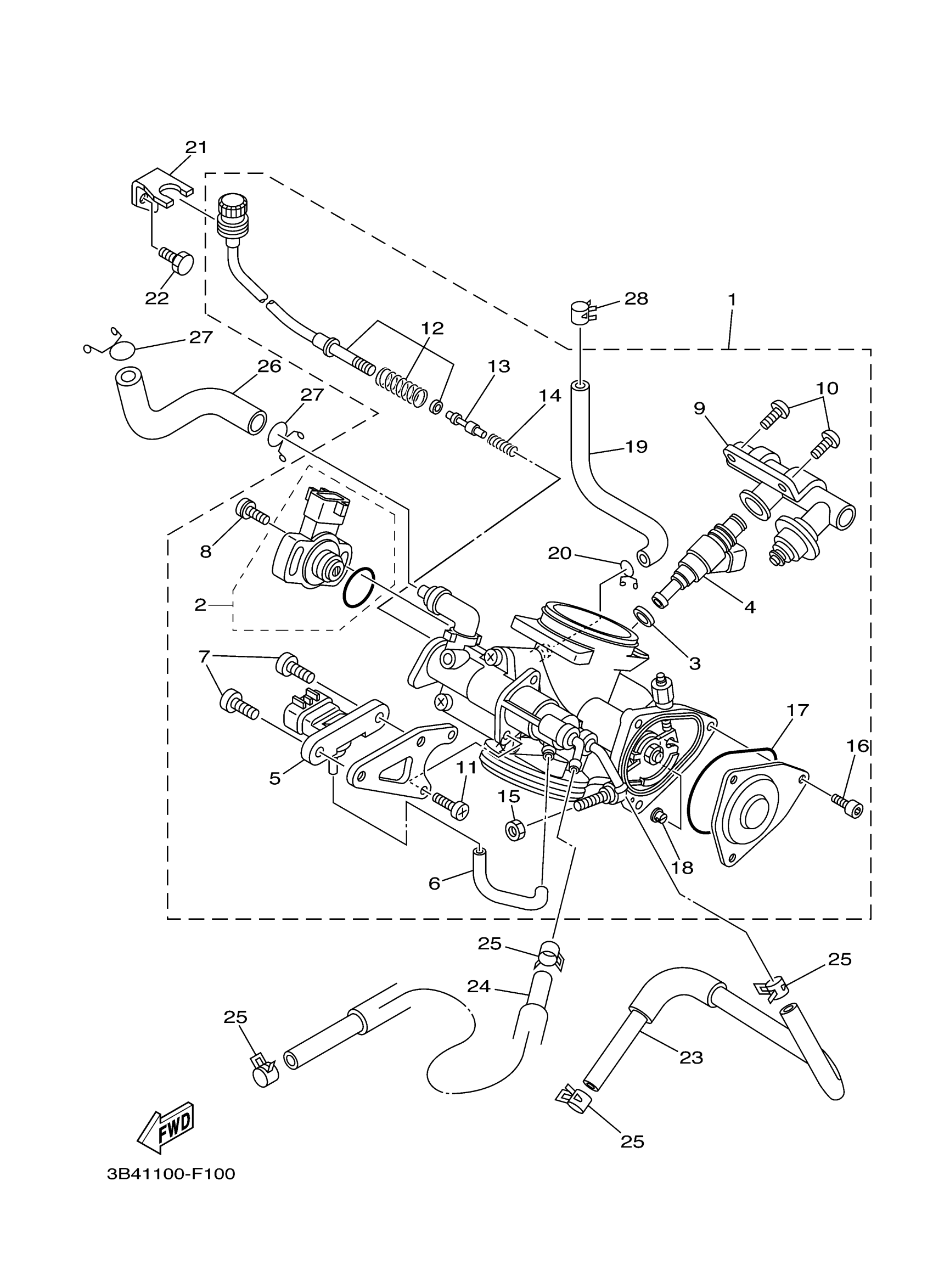

Yamaha YFM7FGPDUW (GRIZZLY 700 DUCKS) 3B48 2007 THROTTLE BODY ASSY 1 Diagram

#

Description
Price

1

THROTTLE BODY ASSY

3B4-13750-03-00

Unavailable

2

THROTTLE SENSOR SET

3B4-W8588-00-00

$291.46

3

GASKET, MANIFOLD

8FP-13556-00-00

$12.27

4

INJECTOR ASSY

3B4-13761-00-00

$198.78

5

SENSOR, PRESSURE

1C7-82380-00-00

$158.39

6

PIPE 1

5JW-14348-00-00

$18.31

7

SCREW, PAN

98507-06010-00

$2.69

8

SCREW

8CC-14216-10-00

$7.12

9

DELIVERY PIPE ASSY 1

3B4-13160-00-00

$257.42

10

SCREW, PAN

98517-06012-00

$3.14

11

SCREW, PAN

98517-05012-00

$3.91

12

. ADJUST SCREW SET

3B4-14503-00-00

Unavailable

13

PLUNGER

1S3-13493-00-00

$43.08

14

. SPRING, AIR ADJUSTING

4BH-14134-00-00

$2.66

15

NUT, CABLE ADJUSTING

1S3-14161-00-00

$6.38

16

BOLT

91312-04006-00

$2.71

17

O-RING

5LP-14147-00-00

$10.17

18

GUIDE, CABLE

1UY-14155-00-00

$15.83

19

HOSE, AIR

3B4-13543-00-00

$35.11

20

CLIP

90467-090A2-00

$2.51

21

STAY

3B4-14413-00-00

Unavailable

22

BOLT (661)

97013-06012-00

$4.71

23

HOSE 1

3B4-1243A-00-00

Unavailable

24

HOSE (L630)

90445-12006-00

Unavailable

25

CLIP

90467-110A2-00

$6.69

26

HOSE 1

3B4-13545-00-00

Unavailable

27

CLIP

90467-140A4-00

$8.31

28

CLIP

90467-090A3-00

$2.91
