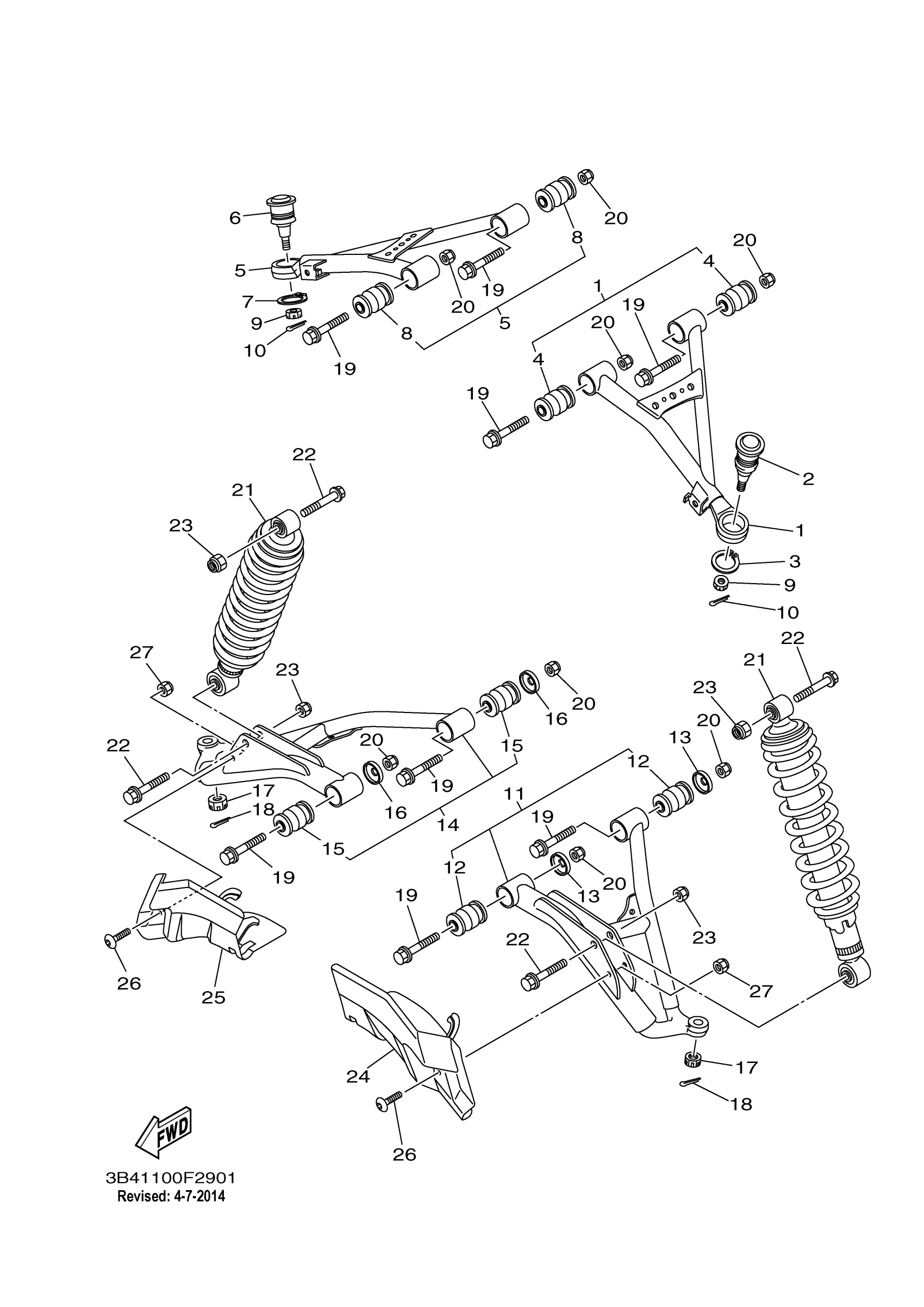

Yamaha YFM7FGPDUW (GRIZZLY 700 DUCKS) 3B48 2007 FRONT SUSPENSION WHEEL Diagram

#

Description
Price

1

FRONT UPPER ARM CO

1HP-F3540-01-00

$46.37

2

BALL JOINT

5LP-23579-00-00

$57.01

3

CIRCLIP(4A6)

99009-30400-00

$6.55

4

BUSH

1HP-F3526-00-00

$21.28

5

FRONT UPPER ARM CO

1HP-F3550-01-00

$46.37

6

BALL JOINT

5LP-23579-00-00

$57.01

7

CIRCLIP(4A6)

99009-30400-00

$6.55

8

BUSH

1HP-F3526-00-00

$21.28

9

NUT, CASTLE

90171-10001-00

$2.85

10

PIN, COTTER

91490-20025-00

$1.31

11

FRONT LOWER ARM CO

1HP-F3570-11-00

$63.85

12

BUSH

1HP-F3526-00-00

$21.28

13

WASHER

5KM-22149-00-00

$6.58

14

FRONT LOWER ARM CO

1HP-F3580-11-00

$61.86

15

BUSH

1HP-F3526-00-00

$21.28

16

WASHER

5KM-22149-00-00

$6.58

17

NUT, CASTLE(36R)

90171-12039-00

$7.00

18

PIN, COTTER

91490-25020-00

$2.94

19

BOLT, FLANGE

90105-10222-00

$5.14

20

NUT, SELFLOCKING (533 FRAME)

90185-10060-00

$6.02

21

SHOCK ABSORBER ASSY

3B4-23350-01-00

$317.23

22

BOLT, WASHER BASED(59V)

90105-10388-00

Unavailable

23

NUT, SELFLOCKING (533 FRAME)

90185-10060-00

$6.02

24

COVER, LOWER 1

3B4-23123-00-00

Unavailable

25

COVER, LOWER 2

3B4-23133-00-00

Unavailable

26

BOLT, HEXAGON SOCKET HEAD(3HE)

90110-06200-00

$6.28

27

NUT, NYLON

95707-06300-00

$3.20
