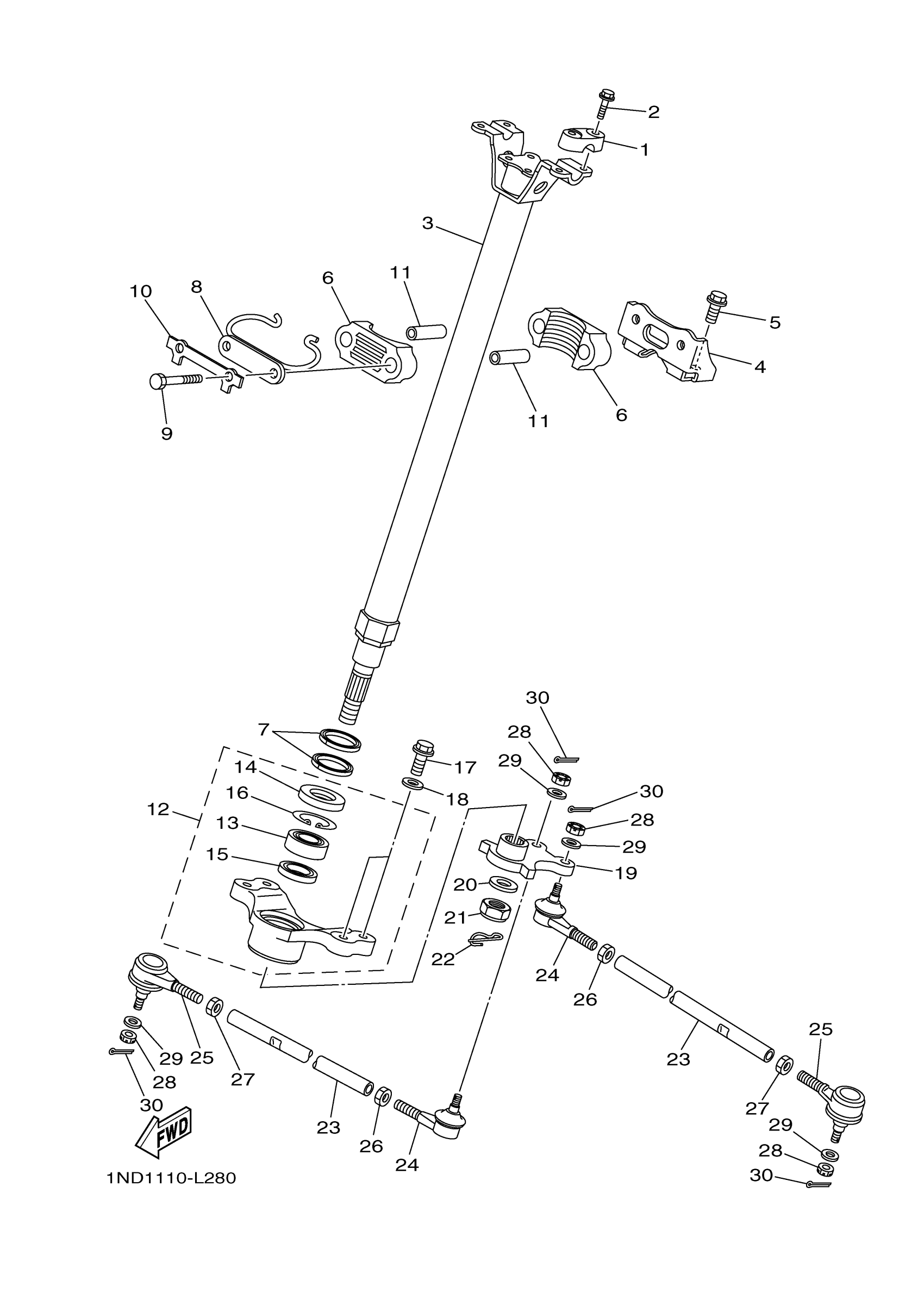

Yamaha YFM7FGBGR (GRIZZLY 700 4WD) 1ND1 2012 STEERING Diagram

#

Description
Price

1

HOLDER, HANDLE UPPER

1E6-23441-00-00

$22.38

2

BOLT, FLANGE

95812-08030-00

$3.25

3

COLUMN, STEERING 2

1ND-F3813-00-00

Unavailable

4

SUPT., STRG. COLUMN

1HP-F2517-00-00

Unavailable

5

BOLT, FLANGE

95812-10016-00

$8.25

6

PLANE BEARING, STE

37S-F3812-00-00

$6.25

7

OIL SEAL

93112-31800-00

$1.48

8

BRACKET, STEERING

1HP-F3868-00-00

$8.23

9

BOLT, HEXAGON

97017-08060-00

$7.72

10

WASHER, LOCK 1

1UY-23894-01-00

$6.86

11

COLLAR(85G)

90387-106T4-00

$11.29

12

STEERING COLUMN SUPPORT ASSY

5C0-22502-10-00

$215.18

13

BEARING

93306-20352-00

$26.25

14

OIL SEAL (25X44X6-810)

93102-25081-00

$4.11

15

OIL SEAL (25X36X8-334)

93102-25099-00

$10.57

16

CIR-CLIP (70R)

93420-40064-00

$6.98

17

BOLT, FLANGE

95812-08030-00

$3.25

18

WASHER, PLATE

90201-08048-00

$5.75

19

ARM, PITMAN

1ND-F3816-00-00

$32.84

20

WASHER, PLATE

90201-14021-00

$5.14

21

NUT, SELF-LOCKING

90185-14009-00

$8.31

22

PIN, COTTER

91490-20035-00

$3.25

23

ROD, TIE

5KM-23831-00-00

$22.96

24

JOINT, UNIVERSAL 1

1UY-23841-01-00

$66.52

25

JOINT, UNIVERSAL 2

1UY-23845-01-00

$66.52

26

NUT (682)

95380-10700-00

$5.78

27

NUT

90170-10010-00

$2.78

28

NUT, CASTLE

90171-10001-00

$2.85

29

WASHER (25G)

90209-10229-00

$5.86

30

PIN, COTTER

91490-20025-00

$1.31
