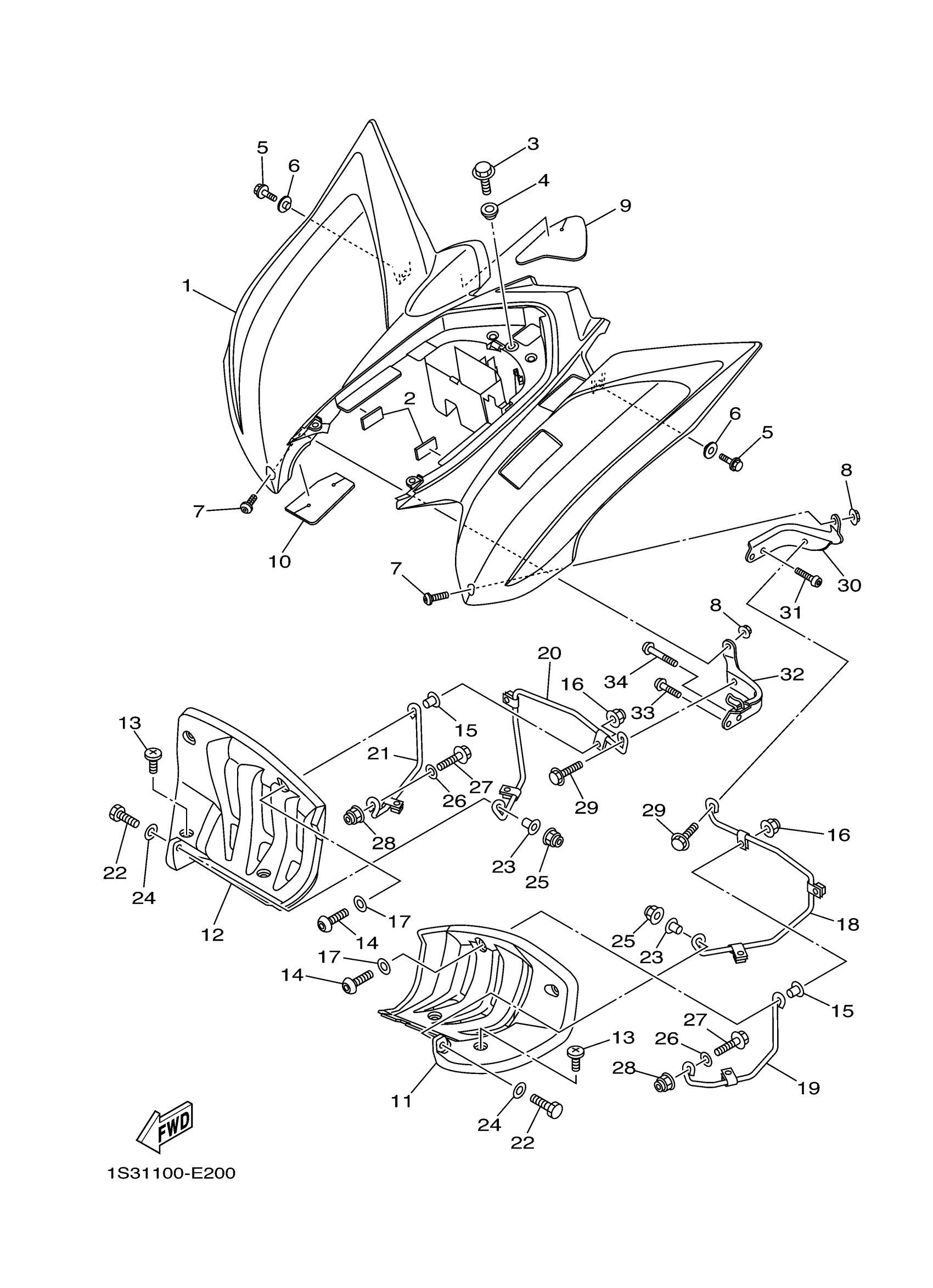

Yamaha YFM70RYRW (RAPTOR 700 GYTR EDITION) 1S3D 2007 REAR FENDER Diagram

#

Description
Price

1

REAR FENDER COMP. (BLUISH WHITE SOLID 1)

1S3-W2161-10-00

Unavailable

2

DAMPER, STOPPER

1S3-2140A-00-00

$6.38

3

BOLT, FLANGE

90105-06084-00

$3.92

4

COLLAR

90387-06153-00

$5.75

5

BOLT, FLANGE

95812-06014-00

$5.45

6

COLLAR

90387-06153-00

$5.75

7

BOLT

90111-06038-00

$3.45

8

NUT, U FLANGE

95604-06200-00

$2.35

9

COVER, REAR FENDER 1

1S3-2163A-00-00

$4.15

10

COVER, REAR FENDER 2

1S3-2163E-00-00

$3.57

11

FLAP

5TG-21621-00-00

$43.82

12

FLAP

5TG-21691-00-00

$43.82

13

SCREW, BINDING (10V)

90154-05013-00

$4.71

14

BOLT, BUTTON HEAD

92012-06025-00

$2.88

15

SPACER (4F2)

90560-06201-00

$12.20

16

NUT, U FLANGE

95604-06200-00

$2.35

17

WASHER, PLATE

90201-06380-00

$0.57

18

STAY 1

1S3-2164F-10-00

$84.11

19

STAY 3

1S3-2164H-00-00

Unavailable

20

STAY 2

5TG-2164G-20-00

$71.37

21

STAY 4

1S3-2164J-20-00

$42.45

22

BOLT, HEXAGON

97017-06025-00

$2.98

23

COLLAR

90387-06204-00

$6.17

24

WASHER, PLATE

90201-06093-00

Unavailable

25

NUT,SELF-LOCKING

95607-06200-00

$10.25

26

WASHER, PLATE (3L7)

90201-08784-00

$2.54

27

BOLT, FLANGE(8AB)

95817-08020-00

$7.00

28

NUT, SELF-LOCKING

90185-08169-00

$7.09

29

BOLT, FLANGE(JN5)

95817-08016-00

$4.12

30

STAY, REAR

1S3-21643-00-00

Unavailable

31

BOLT, BUTTON

92017-08020-00

$5.86

32

STAY, REAR

1S3-21644-00-00

Unavailable

33

BOLT, BUTTON

92017-08016-00

$4.72

34

BOLT, BUTTON HEAD

92017-08035-00

$5.80
