Description

Price

1

BRACKET, DISC

1S3-25712-00-00

$136.88

2

DISK, REAR BRAKE 2

1S3-2582W-10-00

$195.52

3

BOLT

90109-08077-00

$2.88

4

NUT

90179-36003-00

$42.44

5

WASHER, CONICAL SPRING

90208-37001-00

$9.46

6

BOLT, SET (8K2)

90113-06039-00

$6.97

7

CIRCLIP

1S3-25415-00-00

$5.75

8

CALIPER ASSY, REAR 1

1S3-2580V-12-00

$531.04

9

PISTON ASSY, CALIPER

5UG-W0057-00-00

$75.89

10

CALIPER SEAL KIT

3GD-W0047-00-00

$13.06

11

SUPPORT, PAD

4GY-25919-50-00

$29.07

12

BLEED SCREW KIT

36Y-W0048-00-00

$8.51

13

BRAKE PAD KIT 2

1S3-W0046-01-00

$33.14

14

PIN, PAD

5GH-25924-00-00

$14.94

15

SHIM, CALIPER

5UG-25827-00-00

$23.43

16

SHIM, CALIPER

5GH-25828-00-00

$14.25

17

BOLT

1UY-25926-51-00

$3.34

18

WASHER, SPRING

1UY-25938-51-00

$7.51

19

BOOT 2

1UY-25937-51-00

$12.27

20

BOLT

3JD-25926-00-00

$6.43

21

BOOT, CALIPER

3JD-25917-00-00

$7.51

22

NUT

3JD-25961-00-00

$6.94

23

GASKET

5UG-25898-00-00

$3.52

24

SHAFT L

1S3-25978-00-00

$42.34

25

BOOT

1UY-25974-51-00

$6.43

26

NUT

1S3-25973-00-00

$9.75

27

ADJUSTBOLT

1S3-25972-00-00

$20.85

28

BOLT, FITTING

5UG-25833-00-00

$5.93

29

SPRING, RETURN

5TG-25977-50-00

$6.43

30

BOLT, FLANGE

90105-08104-00

$6.46

31

WASHER, PLATE

90201-08060-00

$7.35

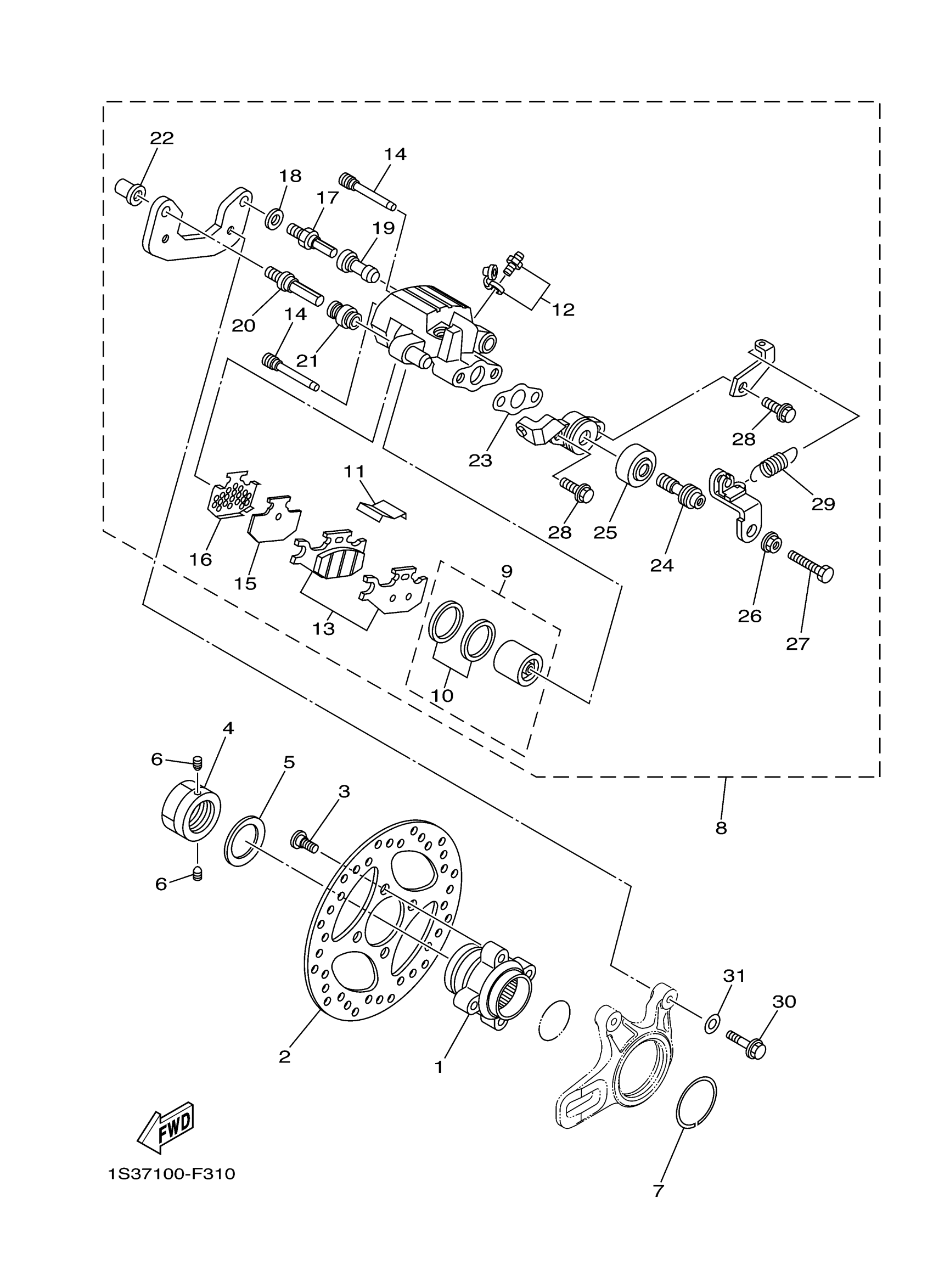

Yamaha YFM70RYRW (RAPTOR 700 GYTR EDITION) 1S3D 2007 REAR BRAKE CALIPER Diagram
