Description

Price

1

REAR ARM COMP.

1S3-22110-00-00

$884.99

2

HUB, REAR

1S3-25311-01-00

$215.41

3

BEARING

93306-90804-00

$76.81

4

OIL SEAL

93106-46003-00

$13.85

5

SPACER, BEARING

1S3-25317-01-00

$104.35

6

O-RING

1S3-23147-01-00

$8.70

7

BEARING

93306-90805-00

$72.85

8

O-RING

93210-66001-00

$3.56

9

O-RING

93210-71001-00

$6.09

10

BRACKET, CALIPER

1S3-25721-01-00

$171.15

11

COLLAR

90387-16014-00

$24.34

12

BOLT, HEXAGON SOCKET HEAD

90110-12002-00

$8.31

13

CIRCLIP

93410-67085-00

$10.68

14

BOLT,SOCKET

91314-08040-00

$5.10

15

.. WASHER, PLATE

92990-08600-00

$2.36

16

SEAL, DUST

1S3-22475-00-00

$5.32

17

BEARING, CYLINDRICAL (23X)

93317-32231-00

$38.51

18

BUSH, SOLID (23X)

90380-22111-00

$17.11

19

OIL SEAL (23X)

93106-22019-00

$9.34

20

BUSH

1S3-22184-00-00

$21.00

21

COVER, THRUST 2

4X7-22129-00-00

$19.54

22

WASHER

3YF-22149-00-00

$8.03

23

PLUG

1S3-22417-00-00

$6.40

24

PLUG

90338-23004-00

$3.43

25

SHAFT, PIVOT

1S3-22141-00-00

$60.97

26

WASHER, PLATE

90201-16018-00

$6.71

27

NUT, SELF-LOCKING

90185-16002-00

$15.11

28

SEAL, GUARD

1S3-22151-00-00

$66.52

29

BOLT

90109-06172-00

$2.71

30

ARM, RELAY

1S3-2217A-00-00

Unavailable

31

BUSH, FORMED(1RX)

90383-20033-00

$13.38

32

OIL SEAL

93109-20076-00

$13.58

33

COLLAR

90387-12021-00

$16.49

34

BOLT

90109-10018-00

$6.22

35

NIPPLE, GREASE

93700-06M03-00

$7.15

36

WASHER, PLATE (J22)

90201-063F3-00

$6.46

37

WASHER, PLATE

90201-12030-00

$5.25

38

WASHER, PLATE

90201-10034-00

$6.29

39

NUT, SELF-LOCKING

90185-10012-00

$2.98

40

ROD, CONNECTING 1

1S3-2217F-00-00

$135.62

41

BUSH, FORMED(1RX)

90383-20032-00

$10.52

42

COVER, THRUST 2

5YT-22129-00-00

$15.09

43

COLLAR(36Y)

90387-125K2-00

$25.40

44

NIPPLE, GREASE

93700-06M03-00

$7.15

45

BOLT

90109-10020-00

$5.85

46

WASHER, PLATE

90201-10035-00

$3.56

47

NUT, SELF-LOCKING

90185-10012-00

$2.98

48

COLLAR

90387-12010-00

$15.58

49

BOLT

90109-12009-00

$17.17

50

NIPPLE, GREASE

93700-06M03-00

$7.15

51

COLLAR

90387-12028-00

$6.23

52

WASHER, PLATE

90201-12032-00

$4.55

53

NUT, SELF-LOCKING

90185-12007-00

$8.94

54

COVER

1S3-2219X-00-00

$55.11

55

BOLT

90109-06199-00

$5.78

56

GUARD, CHAIN

1S3-22153-00-00

$50.67

57

RIVET, BLIND(8CH)

90267-47187-00

$1.84

58

WASHER, PLATE

90201-04027-00

$1.88

59

HOLDER, BRAKE HOSE

1S3-25886-00-00

$6.68

60

HOLDER, CABLE

1S3-23317-00-00

$16.58

61

BOLT, FLANGE

95022-06012-00

$3.00

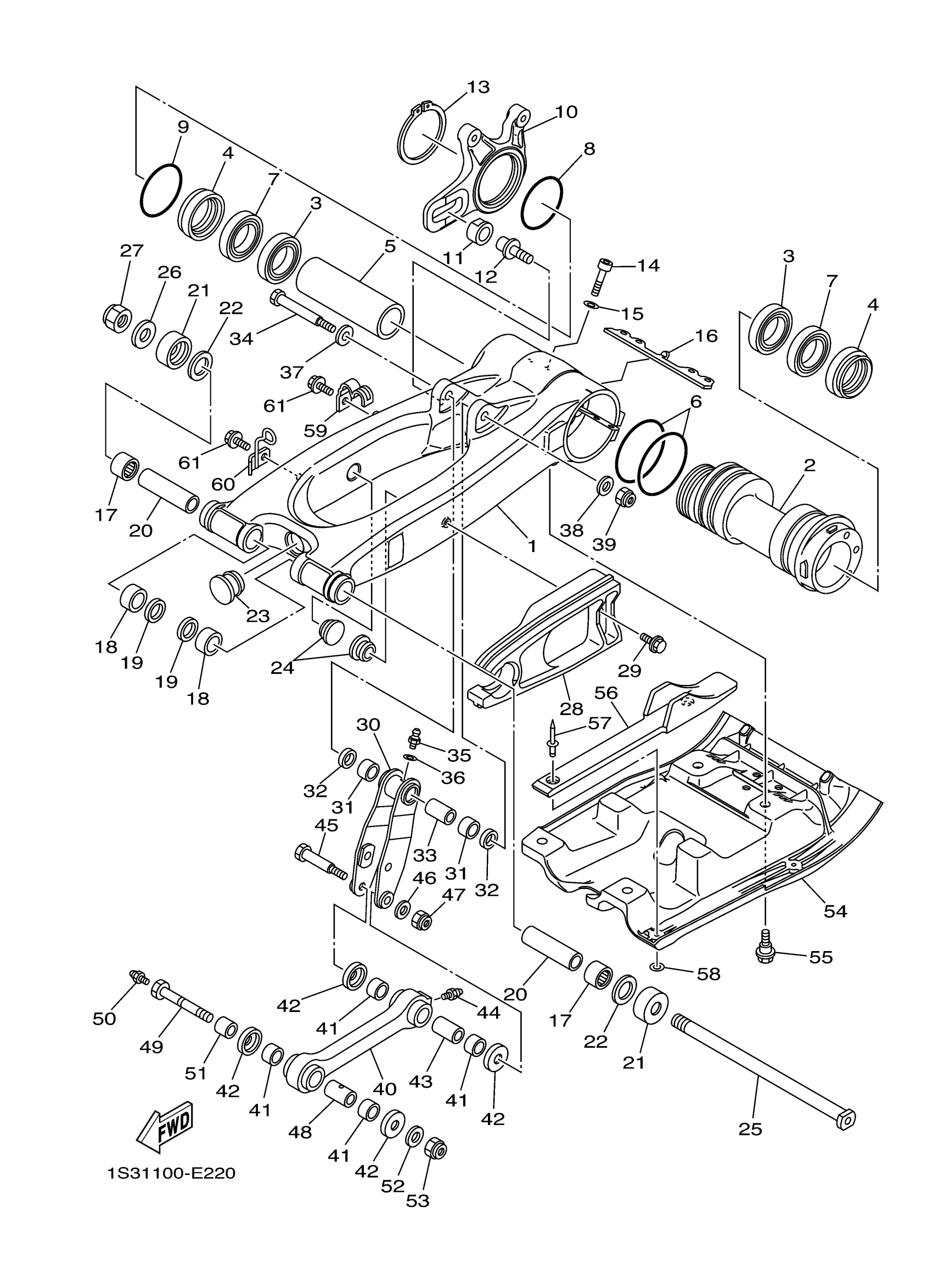

Yamaha YFM70RYRW (RAPTOR 700 GYTR EDITION) 1S3D 2007 REAR ARM Diagram

ARM, RELAY
