Description

Price

1

COVER, CRANKCASE 1

1S3-15411-00-00

$227.89

2

GASKET, CRANKCASE COVER 1

1S3-15451-00-00

$15.83

3

PIN, DOWEL(3VD)

99530-10114-00

$2.23

4

BOLT, FLANGE

95022-06030-00

$1.40

5

PLUG, STRAIGHT SCREW

90340-14003-00

$26.83

6

O-RING (2H9)

93210-14369-00

$5.80

7

PLUG, STRAIGHT SCREW

90340-36001-00

$21.37

8

O-RING

93210-35804-00

$0.49

9

BOLT

91312-05014-00

$2.74

10

PLATE

1S3-15113-00-00

$15.25

11

COVER, CRANKCASE 2

1S3-15421-00-00

$20.00

12

GUIDE, CHAIN

1S3-17466-00-00

$16.00

13

BOLT,SOCKET

91317-06025-00

$2.05

14

COVER, CRANKCASE 3

1S3-15431-00-00

$356.22

15

GASKET, CRANKCASE COVER 3

1S3-15462-00-00

$18.00

16

PIN, DOWEL(3BM)

99530-10120-00

$2.57

17

BOLT, FLANGE

95022-06030-00

$1.40

18

HOLDER, CLUTCH CABLE

1S3-15441-00-00

$18.21

19

OIL SEAL(4GY)

93101-14164-00

$9.71

20

HOLDER

1S3-15118-00-00

$6.43

21

BOLT,SOCKET

91317-06012-00

$6.17

22

CLAMP

90461-10011-00

$10.66

23

HOLDER

1S3-1546C-00-00

$22.80

24

PLUG

4H7-15189-00-00

$25.82

25

O-RING

93210-20802-00

$0.84

26

CLAMP

90462-08046-00

$5.18

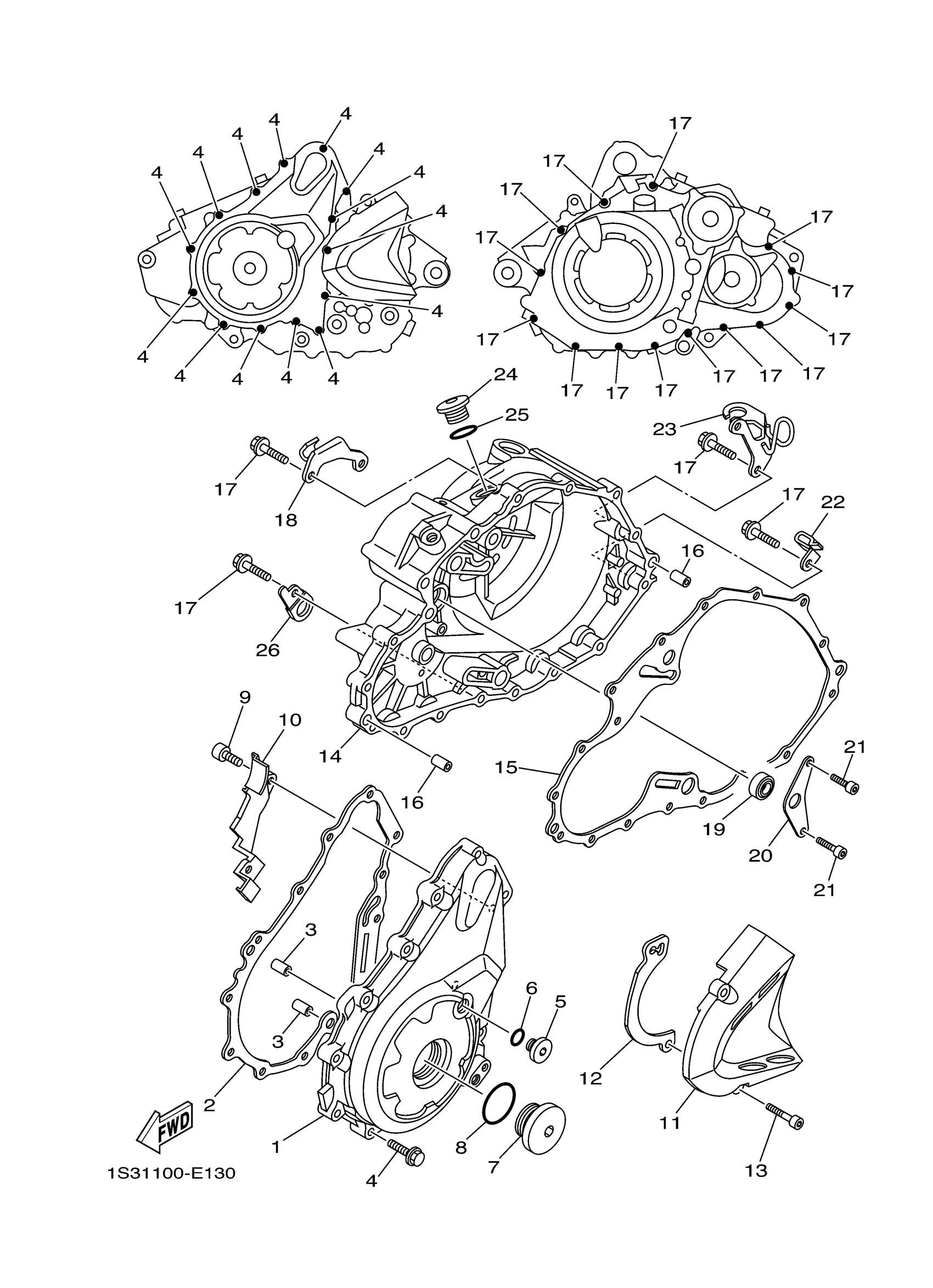

Yamaha YFM70RW (RAPTOR 700) 1S37 2007 CRANKCASE COVER 1 Diagram
