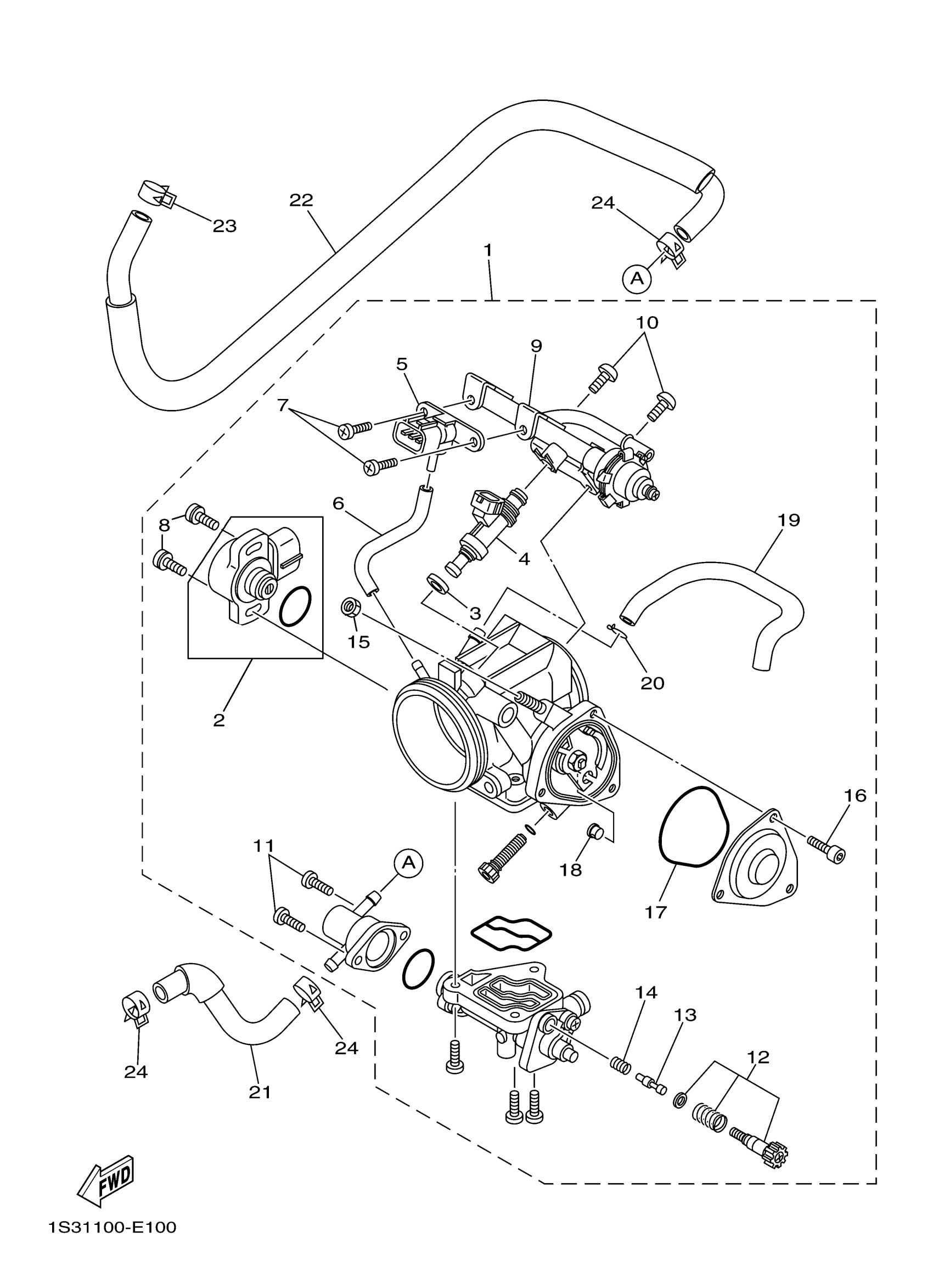

Yamaha YFM70RSEW (RAPTOR 700 SPECIAL EDITION) 1S3A 2007 THROTTLE BODY ASSY 1 Diagram

#

Description
Price

1

THROTTLE BODY ASSY

1S3-13750-02-00

Unavailable

2

THROTTLE SENSOR SET

1S3-W8588-00-00

$262.14

3

GASKET, MANIFOLD

8FP-13556-00-00

$12.27

4

INJECTOR ASSY

5VK-13761-00-00

$228.09

5

SENSOR, PRESSURE

1C7-82380-00-00

$158.39

6

PIPE 1

5JW-14348-00-00

$18.31

7

SCREW, PAN

98507-06010-00

$2.69

8

SCREW

8CC-14216-10-00

$7.12

9

DELIVERY PIPE ASSY 1

1S3-13160-00-00

$343.85

10

SCREW, PAN

98517-06012-00

$3.14

11

SCREW, PAN

98517-05012-00

$3.91

12

ADJUST SCREW SET

5VX-14503-00-00

$73.65

13

PLUNGER

1S3-13493-00-00

$43.08

14

. SPRING, AIR ADJUSTING

4BH-14134-00-00

$2.66

15

NUT, CABLE ADJUSTING

1S3-14161-00-00

$6.38

16

BOLT

91312-04006-00

$2.71

17

O-RING

4WV-14147-10-00

$18.75

18

GUIDE, CABLE

1UY-14155-00-00

$15.83

19

. HOSE, AIR

1S3-13543-00-00

Unavailable

20

CLIP

90467-090A2-00

$2.51

21

HOSE 1

1S3-1243A-00-00

$12.80

22

HOSE 2

1S3-1243E-00-00

$40.48

23

CLIP(3BM)

90467-10135-00

$6.91

24

CLIP(3BM)

90467-10135-00

$6.91
