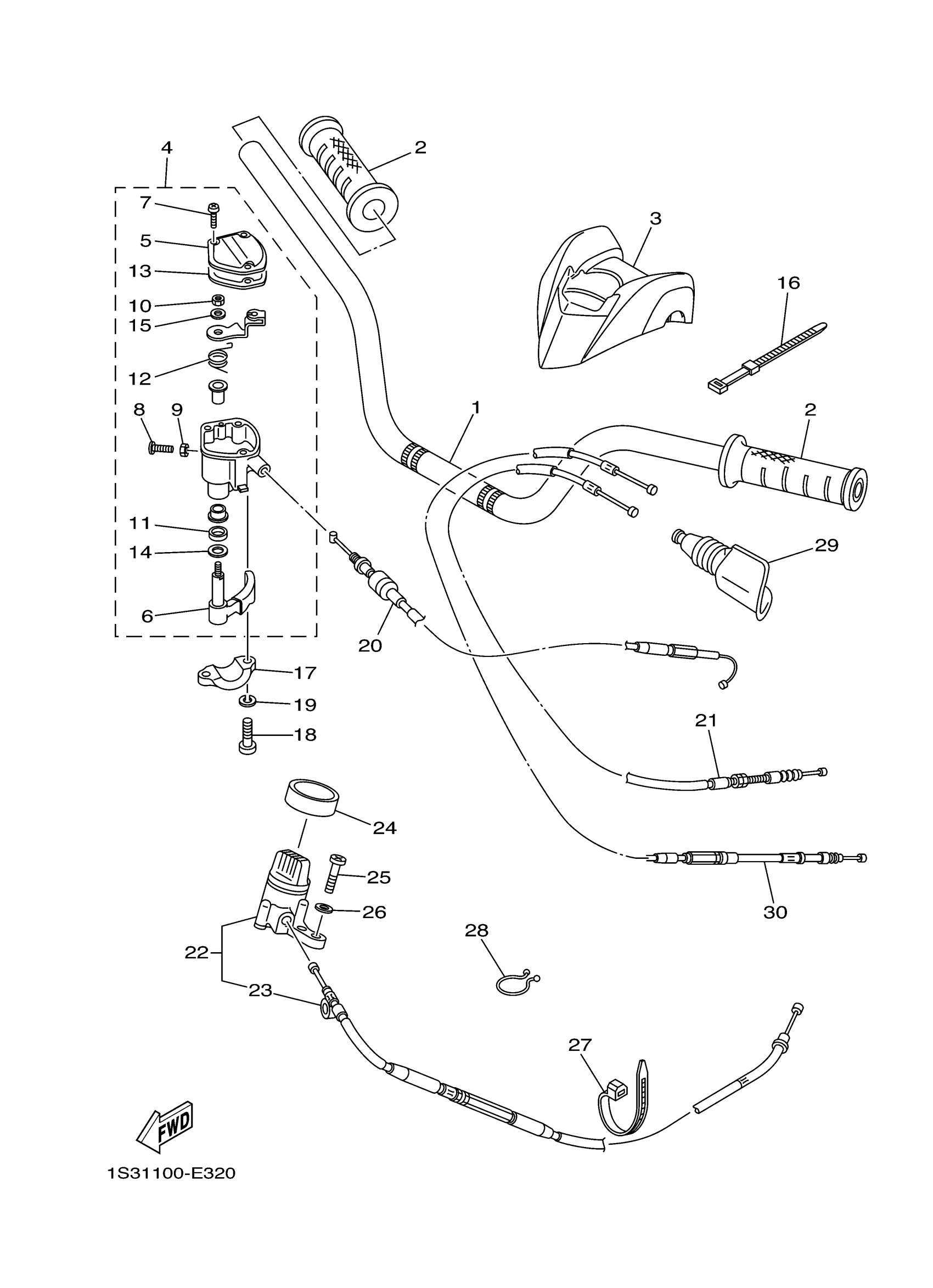

Yamaha YFM70RSEW (RAPTOR 700 SPECIAL EDITION) 1S3A 2007 STEERING HANDLE CABLE Diagram

#

Description
Price

1

HANDLEBAR

1S3-26111-10-00

$88.97

2

GRIP (LEFT)

5LP-26241-00-00

$21.75

3

PROTECTOR, HANDLEBAR

1S3-26124-00-00

$14.78

4

THROTTLE LEVER ASSY

4KB-26250-22-00

Unavailable

5

CAP, GEAR

4KB-2628F-20-00

$31.31

6

LEVER, THROTTLE

1NV-2625G-02-00

Unavailable

7

SCREW(3HE)

90149-04278-00

$0.74

8

SCREW, PAN HEAD

98517-05020-00

$1.35

9

NUT, U

95617-05100-00

$6.68

10

NUT, HEXAGON SMALL

95317-05700-00

$6.18

11

OIL SEAL (9X15X4-256)

93104-09025-00

$5.46

12

SPRING

1NV-26304-00-00

$11.17

13

GASKET

4KB-2628G-00-00

$10.63

14

WASHER

1NV-26129-00-00

$6.43

15

. WASHER, SPECIAL

53L-83909-00-00

Unavailable

16

BAND, SWITCH CORD

437-83936-01-00

$4.63

17

HOLDER, LEVER LOWER

4V4-82913-00-00

$23.09

18

SCREW, PAN HEAD

98517-05020-00

$1.35

19

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

20

CABLE, THROTTLE 1

1S3-26311-11-00

$20.75

21

CABLE, CLUTCH

1S3-26335-01-00

$36.89

22

REV. LEVER ASSY.

1S3-26150-10-00

$119.58

23

CABLE, CONTROL 1

1S3-2637E-00-00

$49.55

24

DAMPER

1S3-26113-00-00

$6.58

25

SCREW, PAN HEAD(4MY)

98507-05018-00

$2.48

26

WASHER, PLAIN (646)

92990-05600-00

Unavailable

27

CLAMP(4FM)

90464-15195-00

$2.77

28

CLAMP

90464-25267-00

$5.62

29

COVER, HANDLE LEVER 1

31A-26372-00-00

$28.00

30

CABLE, BRAKE

1S3-26341-00-00

$69.32
