Description

Price

1

COLUMN, STEERING 2

1S3-23813-10-00

$206.70

2

ARM, PITMAN

5TG-23816-10-00

$64.14

3

ROD, TIE

1S3-23831-00-00

$76.65

4

JOINT, UNIVERSAL 1

1S3-23841-00-00

$57.81

5

JOINT, UNIVERSAL 2

1S3-23845-00-00

$58.57

6

NUT, HEXAGON SMALL

95317-12700-00

$6.17

7

NUT (821-23834-00)

90170-12054-00

$6.17

8

NUT, CASTLE

90171-10001-00

$2.85

9

WASHER (25G)

90209-10229-00

$5.86

10

PIN, COTTER

91490-20025-00

$1.31

11

HOLDER, HANDLE UPPER

1E6-23441-00-00

$22.38

12

BOLT, FLANGE(6TA)

95817-08030-00

$6.17

13

PLANE BEARING, STEERING

1UY-23812-00-00

$21.15

14

OIL SEAL(1UY)

93112-31011-00

$7.52

15

BRACKET, STEERING LOWER

3GD-23868-01-00

$17.91

16

BOLT, HEXAGON

97017-08060-00

$7.72

17

WASHER, LOCK 1

1UY-23894-01-00

$6.86

18

COLLAR(85G)

90387-106T4-00

$11.29

19

WASHER, PLATE

90201-14226-00

Unavailable

20

NUT, SELF-LOCKING (1J7)

90185-14070-00

$10.45

21

CLIP(3YF)

90468-16191-00

$6.17

22

NUT, CASTLE

90171-10001-00

$2.85

23

WASHER (25G)

90209-10229-00

$5.86

24

PIN, COTTER

91490-20025-00

$1.31

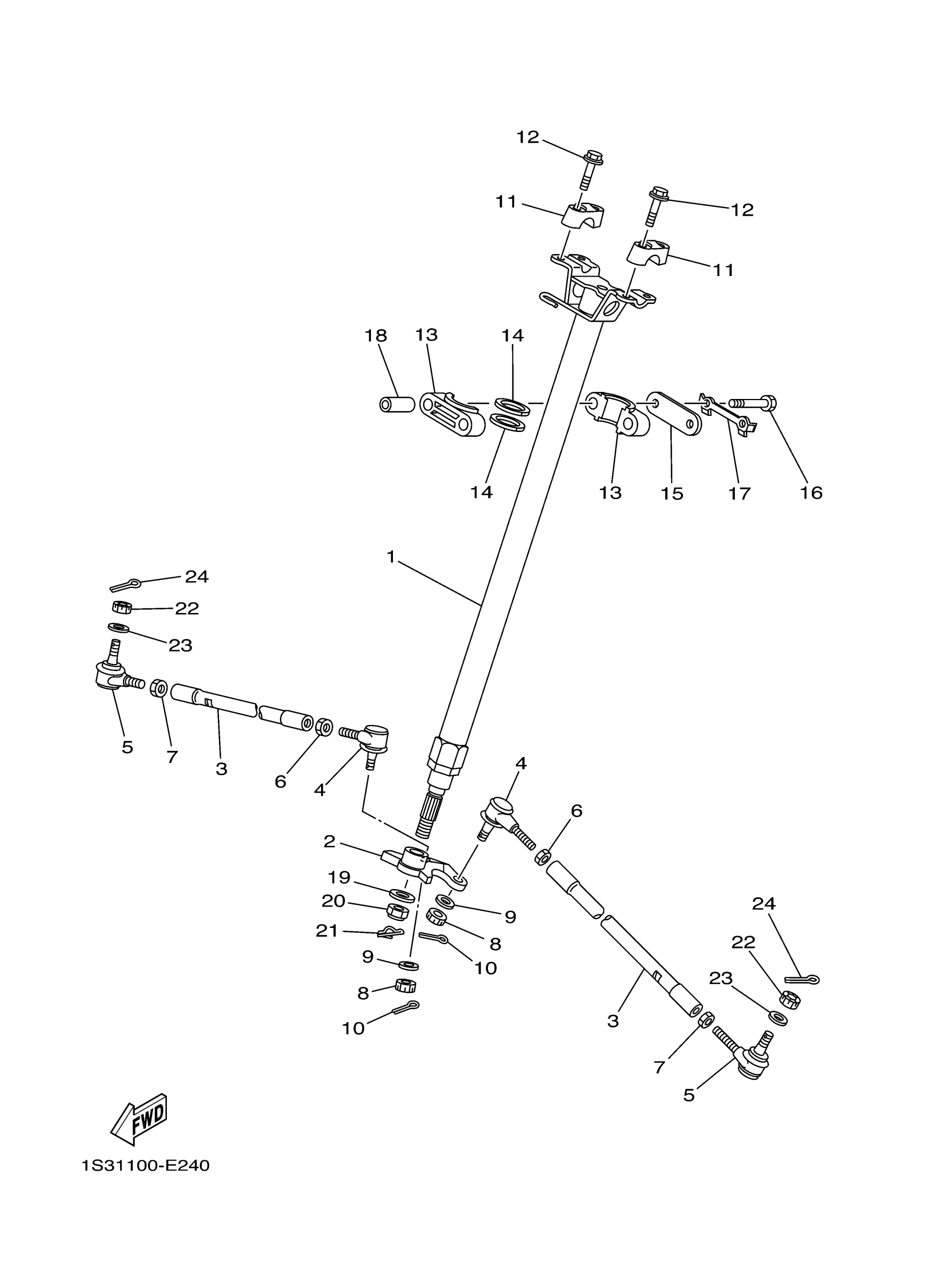

Yamaha YFM70RSE2W (RAPTOR 700 SPECIAL EDITION 2) 1S3E 2007 STEERING Diagram
