Description

Price

1

REAR MASTER CYLINDER ASSY

1S3-2580E-00-00

$110.87

2

CYLINDER KIT, REAR MASTER

31A-W0042-50-00

$93.80

3

JOINT

1AE-2582A-00-00

$11.55

4

O-RING (22U)

93210-15566-00

$5.78

5

SCREW, PAN HEAD

98517-04012-00

$3.28

6

WASHER(6TA)

92907-04100-00

$5.98

7

WASHER(JF2)

92907-04600-00

$1.23

8

NUT, HEXAGON SMALL

95317-08700-00

$7.05

9

JOINT

2YK-27222-00-00

$19.20

10

BOLT, BUTTON HEAD

92017-08035-00

$5.80

11

PIN, CLEVIS(2YK)

90240-08124-00

$5.68

12

WASHER, PLATE 1562722600

90201-08083-00

$6.29

13

PIN, COTTER

91490-16020-00

$6.23

14

TANK, RESERVOIR

5JJ-25894-01-00

$37.55

15

CAP, RESERVOIR

3XP-25852-50-00

$18.37

16

DIAPHRAGM, RESERVOIR

2VN-25854-00-00

$19.62

17

BUSH,DIAPHRAGM

2VN-25855-00-00

$9.49

18

STAY

1S3-26292-00-00

$6.94

19

BOLT, WITH WASHER

90119-06242-00

$5.86

20

GROMMET

90480-15009-00

$5.23

21

HOSE, RESERVOIR

1S3-25895-00-00

$30.34

22

CLIP (7K7)

90467-11044-00

$5.10

23

CLIP (5K4)

90467-14057-00

$7.51

24

COVER 1

1S3-27453-01-00

Unavailable

25

BOLT, BUTTON

92017-08016-00

$4.72

26

HOSE, BRAKE

1S3-25874-10-00

Unavailable

27

BOLT, UNION(3GM)

90401-10159-00

$8.85

28

WASHER, PLATE(481)

90201-10118-00

$2.91

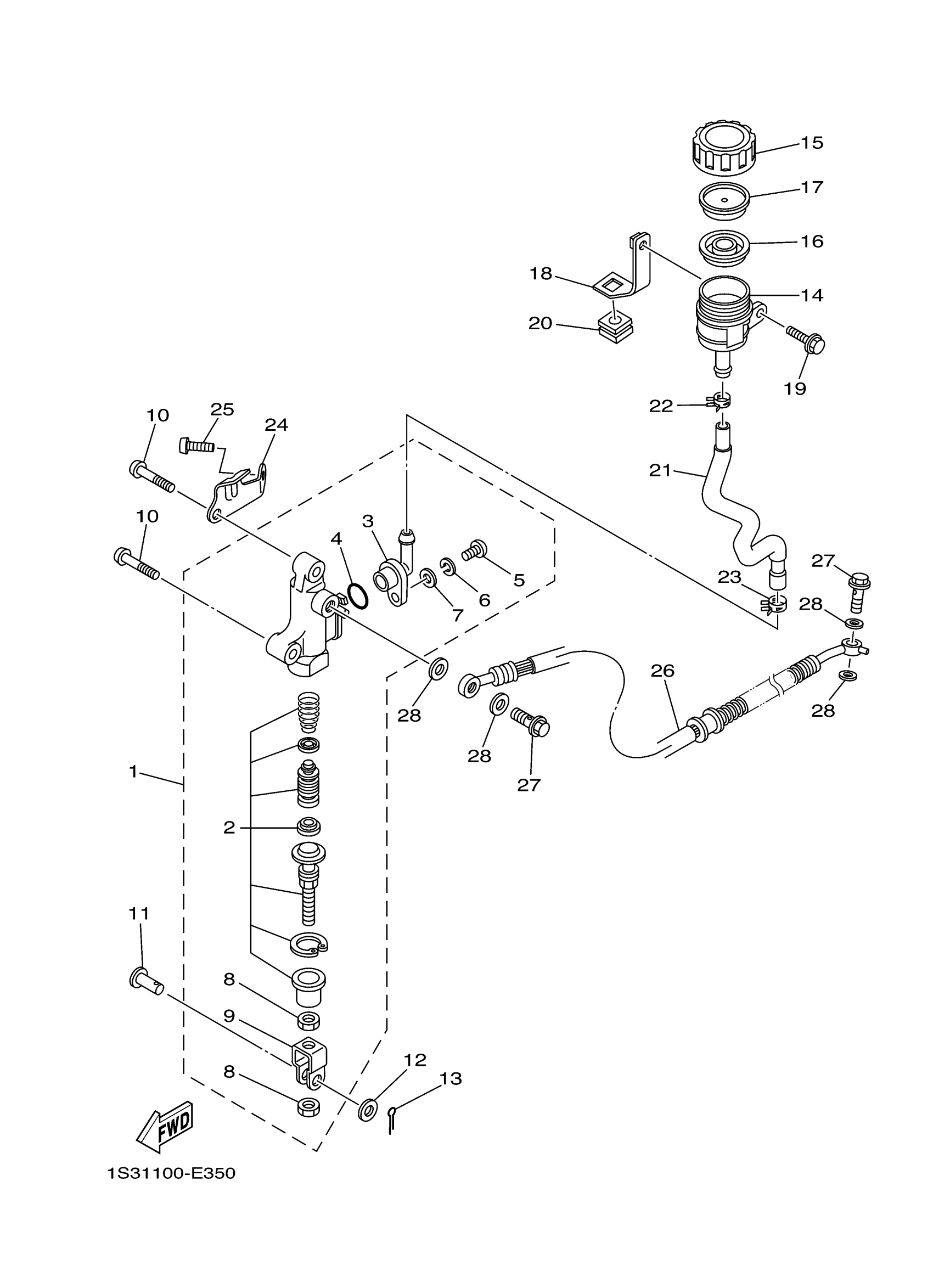

Yamaha YFM70RSE2W (RAPTOR 700 SPECIAL EDITION 2) 1S3E 2007 REAR MASTER CYLINDER Diagram

COVER 1

HOSE, BRAKE
