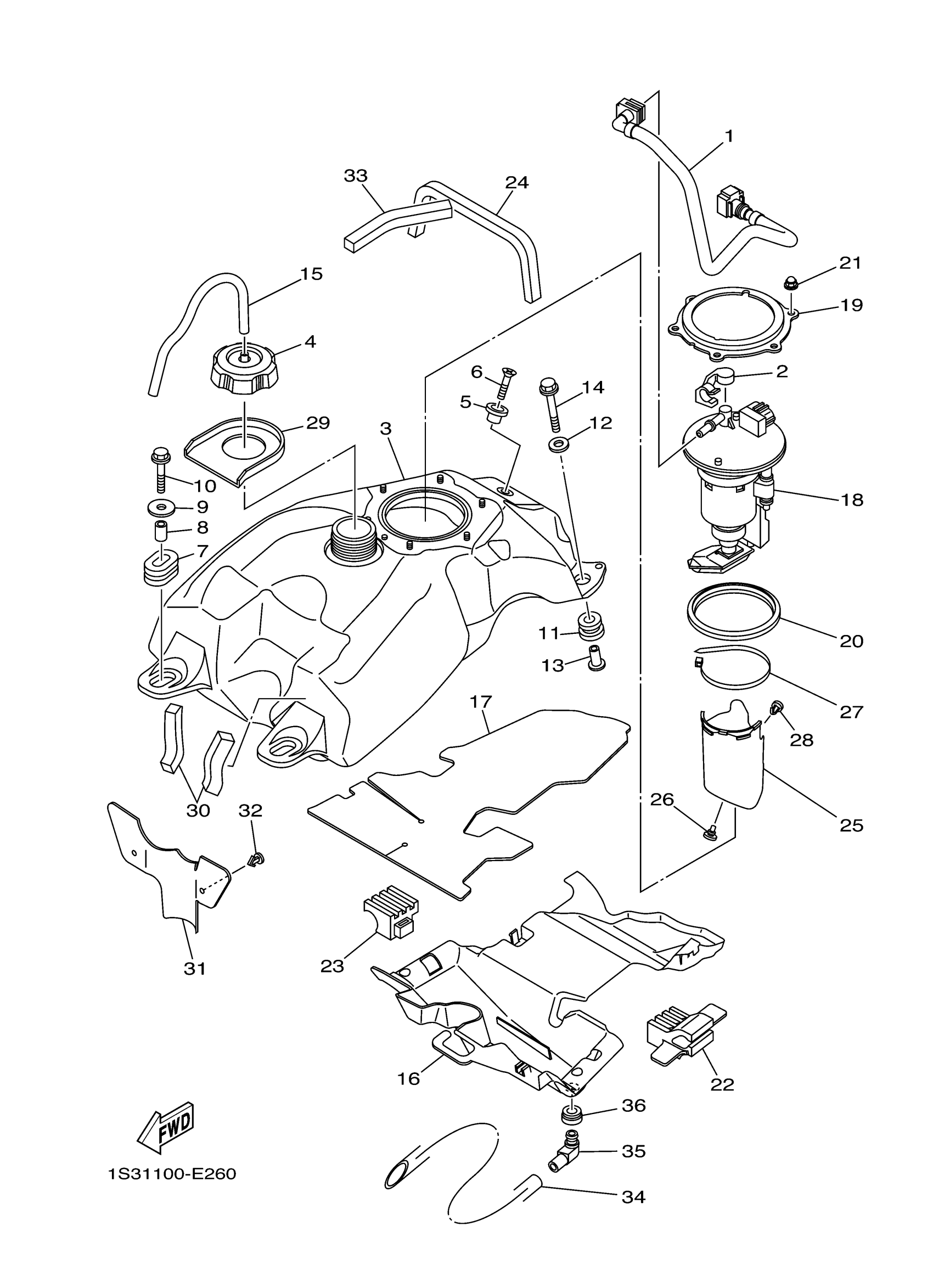

Yamaha YFM70RSE2W (RAPTOR 700 SPECIAL EDITION 2) 1S3E 2007 FUEL TANK Diagram

#

Description
Price

1

PIPE, FUEL 1

1S3-13971-11-00

Unavailable

2

CLAMP

90464-14004-00

$5.40

3

FUEL TANK COMP.

1S3-24110-00-00

Unavailable

4

CAP ASSY

2FJ-24610-20-00

$60.72

5

BRACKET, SEAT

4EW-2412F-00-00

$12.71

6

SCREW, FLAT HEAD

98702-06025-00

$6.15

7

GROMMET

90480-01017-00

$4.60

8

COLLAR, LEVER 1

36Y-83913-01-00

$8.94

9

WASHER, PLATE

90201-06090-00

$5.17

10

BOLT, FLANGE

95817-06035-00

$5.37

11

GROMMET

90480-18005-00

$6.25

12

WASHER, PLATE

90201-06033-00

$2.74

13

COLLAR

90387-06098-00

$7.06

14

BOLT, FLANGE

95817-06035-00

$5.37

15

HOSE (L600)

90445-083J5-00

$7.65

16

DAMPER, PLATE 1

1S3-2414H-00-00

$26.29

17

INSULATOR, FUEL TANK 1

1S3-2416F-00-00

$50.29

18

FUEL PUMP COMP.

1S3-13907-13-00

Unavailable

19

BRACKET, FUEL PUMP

1S3-24491-10-00

$20.20

20

O-RING

1S3-24486-00-00

$15.04

21

NUT(4MY)

95307-06800-00

$2.86

22

STOPPER 1

1S3-24278-00-00

$15.71

23

STOPPER 2

1S3-24279-00-00

$10.40

24

DAMPER, LOCATING 1

1S3-24181-00-00

$4.08

25

COVER

1S3-24452-00-00

$16.02

26

PLUG

90338-05008-00

$2.49

27

CLAMP

90464-66001-00

$1.85

28

RIVET

90269-07011-00

$6.25

29

DAMPER, PLATE 2

1S3-2414J-00-00

$8.43

30

DAMPER, LOCATING 2

1S3-24182-00-00

$3.32

31

PLATE

1S3-2413X-00-00

$9.22

32

RIVET(81E)

90269-05055-00

$7.02

33

DAMPER, LOCATING 3

1S3-24183-00-00

$3.15

34

HOSE (L400)

90445-16007-00

$12.02

35

PIPE

31A-14419-00-00

$6.62

36

GROMMET

31A-14435-01-00

$3.54
