Description

Price

1

FRONT LOWER ARM COMP. (LEFT)

5TG-23570-01-00

$335.48

2

BALL JOINT

5LP-23579-00-00

$57.01

3

CIRCLIP(4A6)

99009-30400-00

$6.55

4

FRONT LOWER ARM COMP. (RIGHT)

5TG-23580-01-00

$342.85

5

BALL JOINT

5LP-23579-00-00

$57.01

6

CIRCLIP(4A6)

99009-30400-00

$6.55

7

FRONT UPPER ARM COMP. (LEFT)

5TG-23540-02-00

$402.91

8

FRONT UPPER ARM COMP. (RIGHT)

5TG-23550-02-00

$326.05

9

BUSH, SOLID(3GG)

90381-15088-00

$20.42

10

BUSH, SOLID(3GG)

90381-15088-00

$20.42

11

COLLAR(1UY)

90387-101R3-00

$17.22

12

COLLAR(3GG)

90387-100Y6-00

$28.35

13

COVER, THRUST 1

1UY-23517-01-00

$6.38

14

COVER, THRUST 1

1UY-23517-01-00

$6.38

15

BOLT, FLANGE

90105-10135-00

$5.14

16

BOLT, WASHER BASED(3GG)

90105-10651-00

$10.78

17

WASHER, PLATE

90201-10037-00

$6.49

18

WASHER, PLATE

90201-10037-00

$6.49

19

NUT, SELF-LOCKING

90185-10012-00

$2.98

20

NUT, SELF-LOCKING

90185-10012-00

$2.98

21

NIPPLE, GREASE

93700-06M03-00

$7.15

22

NIPPLE, GREASE

93700-06M03-00

$7.15

23

SHOCK ABSORBER ASSY

1S3-23350-10-00

Unavailable

24

BOLT, FLANGE

90105-10131-00

$5.14

25

NUT, SELF-LOCKING

90185-10012-00

$2.98

26

WASHER, PLATE

90201-10035-00

$3.56

27

STEERING KNUCKLE ASSY (LEFT)

1S3-23501-01-00

$283.11

28

STEERING KNUCKLE ASSY (RIGHT)

1S3-23502-01-00

$287.80

29

WASHER (25G)

90209-10229-00

$5.86

30

NUT, CASTLE

90171-10001-00

$2.85

31

PIN, COTTER

91490-20025-00

$1.31

32

HOLDER, BRAKE HOSE 1

5TG-25875-00-00

$13.51

33

HOLDER, BRAKE HOSE 2

5TG-25876-00-00

$6.62

34

BOLT(4EW)

90109-067F4-00

$6.57

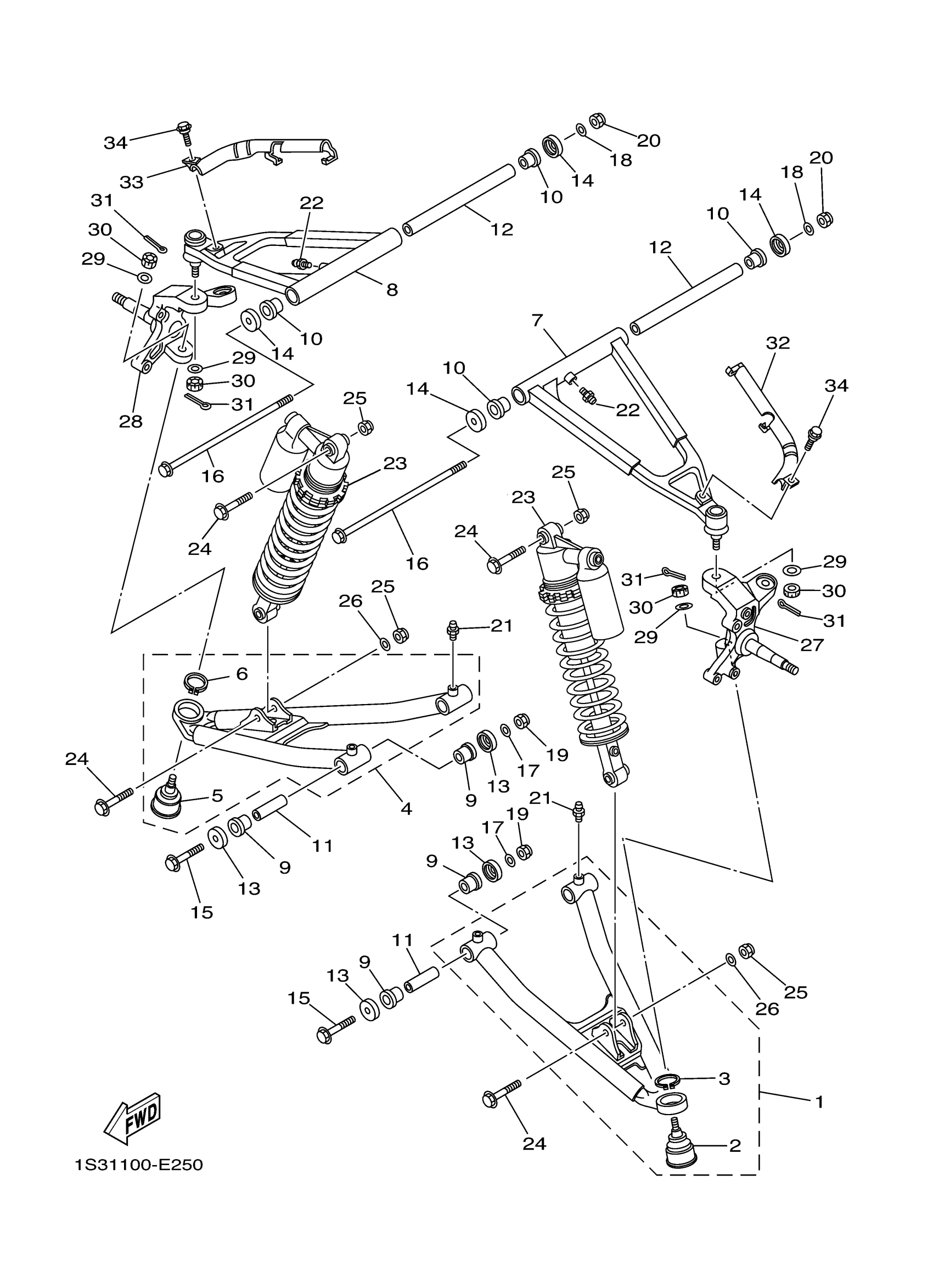

Yamaha YFM70RSE2W (RAPTOR 700 SPECIAL EDITION 2) 1S3E 2007 FRONT SUSPENSION WHEEL Diagram

SHOCK ABSORBER ASSY
