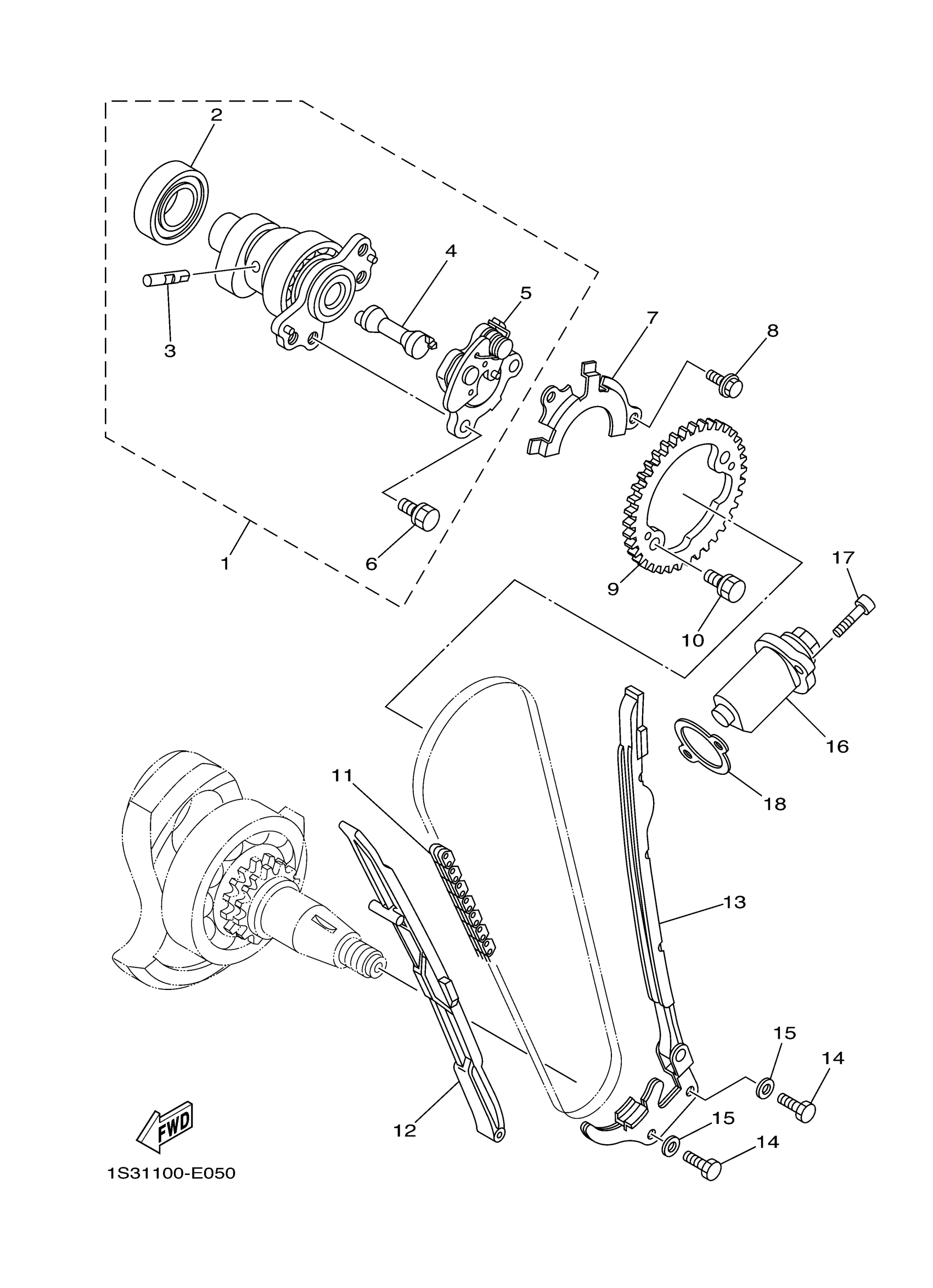

Yamaha YFM70RSE2W (RAPTOR 700 SPECIAL EDITION 2) 1S3E 2007 CAMSHAFT CHAIN Diagram

Description

Price

CAMSHAFT ASSY 1

1S3-12170-01-00

Unavailable

BEARING

93306-07209-00

$36.86

PIN, DECOMPRESSION LEVER

5VK-12284-00-00

$19.18

LEVER, DECOMPRESSION SPRING

1S3-12290-00-00

$53.05

DECOMPRESSION ASSY

1S3-12280-01-00

$93.01

BOLT, FLANGE

90105-07004-00

$5.00

PLATE

5VK-1111F-00-00

$13.06

BOLT, FLANGE

95022-06012-00

$3.00

SPROCKET, CAM CHAIN

1S3-12176-00-00

$64.14

BOLT, FLANGE

90105-07004-00

$5.00

CHAIN

94591-57126-00

$34.05

GUIDE, STOPPER 1

5VK-12231-00-00

$37.53

GUIDE, STOPPER 2

1S3-12241-01-00

$39.50

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.91

WASHER, PLAIN (646)

92990-06600-00

$2.48

TENSIONER ASSY, CAM CHAIN

3TB-12210-00-00

$121.96

BOLT,SOCKET

91317-06025-00

$2.05

GASKET, TENSIONER CASE

4DW-12213-00-00

$7.40
