Description

Price

1

HANDLEBAR

1PE-F6111-00-00

$56.22

2

GRIP

5FU-F6241-10-00

$10.31

3

PROTECTOR, HANDLEB

1PE-F6124-00-00

$3.92

4

THROTTLE LEVER ASS

1S3-26250-02-00

$112.26

5

CAP, GEAR

1S3-2628F-00-00

$15.04

6

GASKET

1S3-2628G-00-00

$8.91

7

NUT, U

95617-05100-00

$6.68

8

. WASHER, SPECIAL

53L-83909-00-00

Unavailable

9

SPRING

1NV-26304-00-00

$11.17

10

COLLAR

1NV-26259-01-00

$6.43

11

COLLAR

1NV-2625K-00-00

$5.86

12

OIL SEAL (9X15X4-256)

93104-09025-00

$5.46

13

WASHER

1NV-26129-00-00

$6.43

14

LEVER, THROTTLE

1S3-2625G-01-00

$52.34

15

SCREW(3HE)

90149-04278-00

$0.74

16

NUT, HEXAGON SMALL

95317-05700-00

$6.18

17

SCREW, PAN HEAD

98517-05020-00

$1.35

18

HOLDER, LEVER LOWER 1

1S3-82913-00-00

$11.28

19

SCREW, PAN HEAD

98517-05020-00

$1.35

20

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

21

BAND, SWITCH CORD

437-83936-01-00

$4.63

22

CABLE, THROTTLE 1

1S3-26311-11-00

$20.75

23

CABLE, CLUTCH

1S3-26335-01-00

$36.89

24

REV. LEVER ASSY.

1S3-26150-10-00

$119.58

25

CABLE, CONTROL 1

1S3-2637E-11-00

$28.54

26

DAMPER

1S3-26113-00-00

$6.58

27

SCREW, PAN HEAD(4MY)

98507-05018-00

$2.48

28

WASHER, PLAIN (646)

92990-05600-00

Unavailable

29

CLAMP(4FM)

90464-15195-00

$2.77

30

BAND, SWITCH CORD

25G-83936-01-00

$4.12

31

COVER, HANDLE LEVER 1

31A-26372-00-00

$28.00

32

WIRE, BRAKE 1

1PE-26341-00-00

$65.95

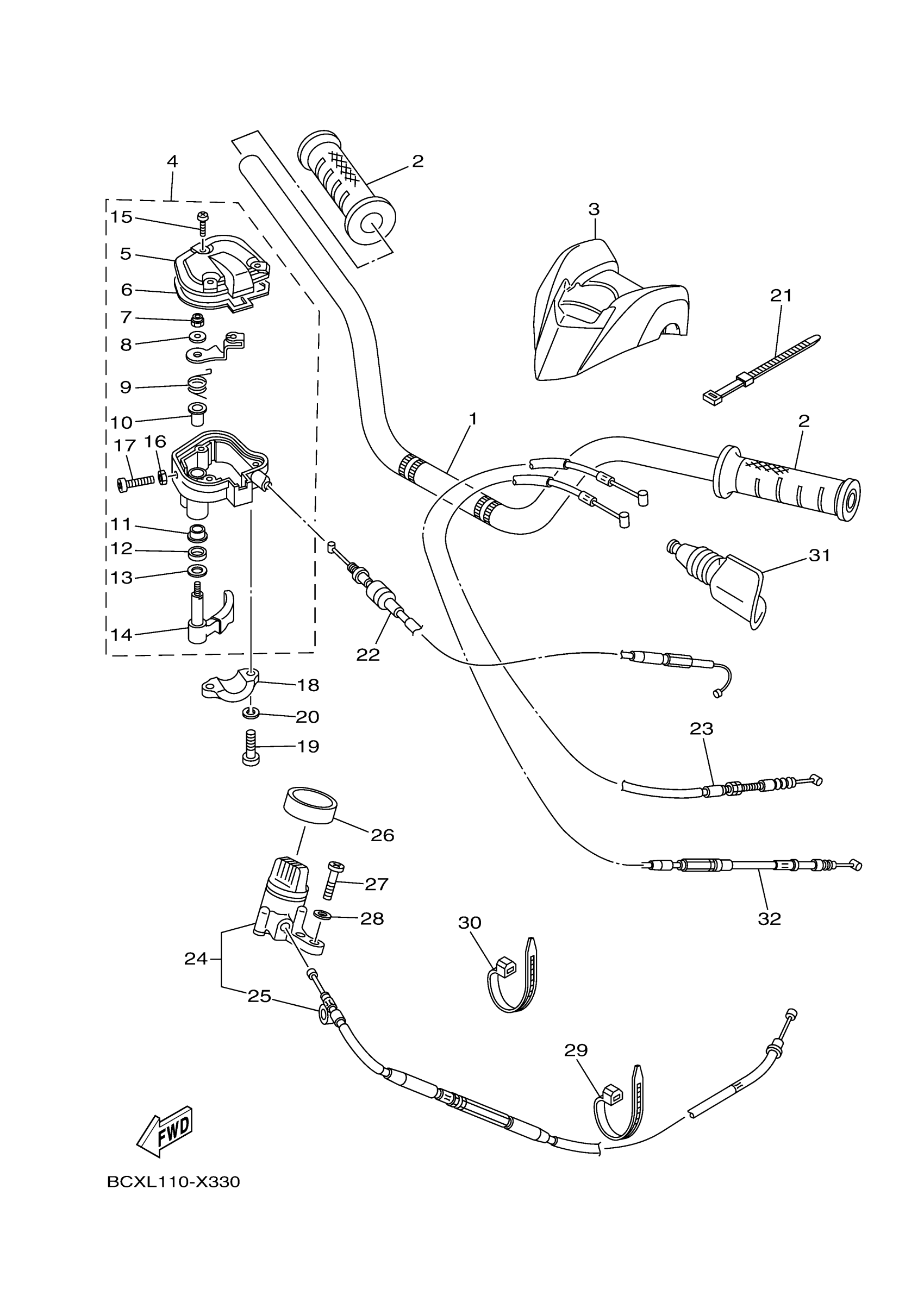

Yamaha YFM70RSCTG (RAPTOR 700R SE) DE32 2026 STEERING HANDLE & CABLE Diagram

. WASHER, SPECIAL

YBS67-5 WASHER, SPRING

WASHER, PLAIN (646)
