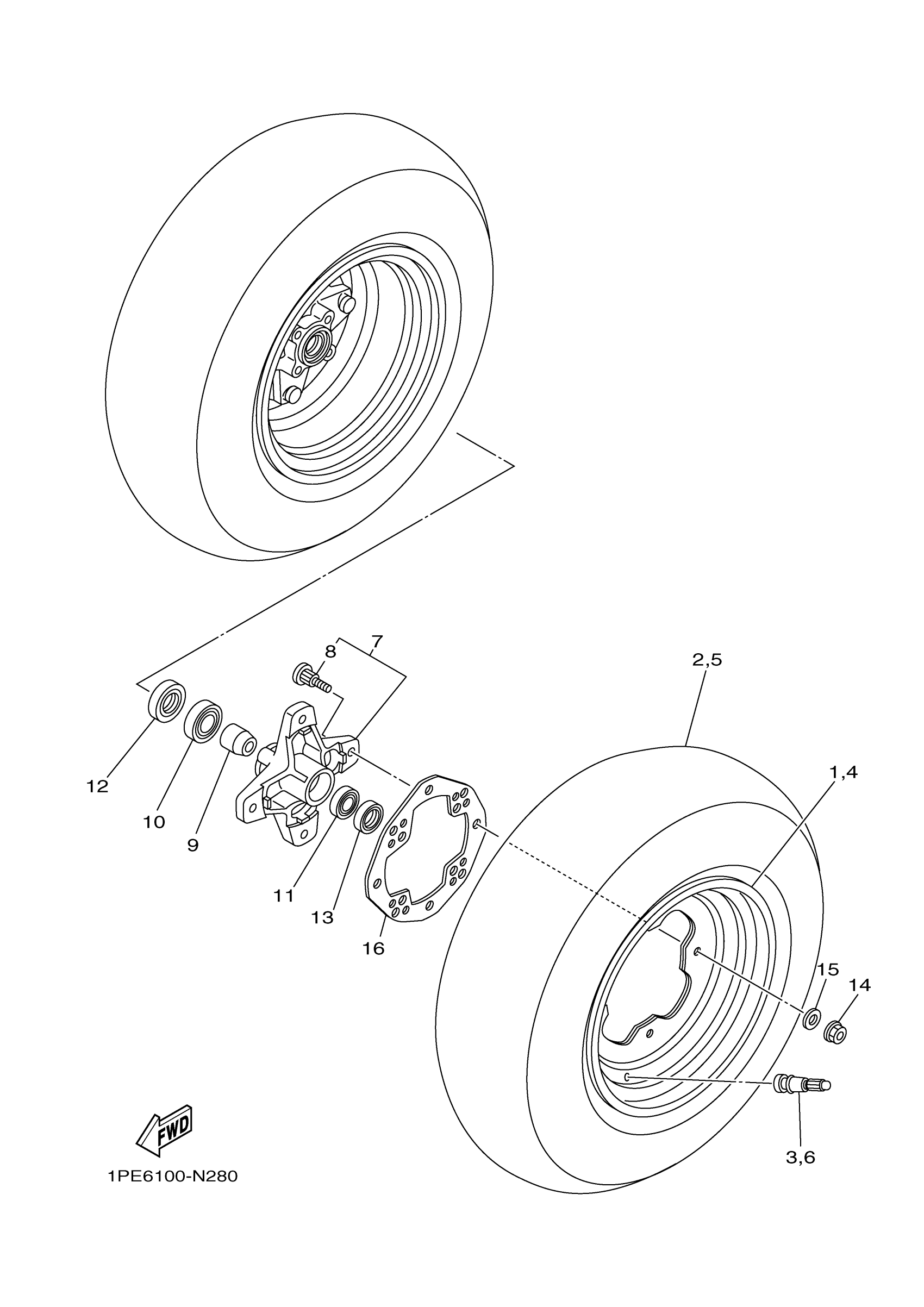

Yamaha YFM70RCBTS (RAPTOR 700 CAL) BFKL 2026 FRONT WHEEL Diagram

#

Description
Price

1

WHEEL,FRONT

1TD-F5180-11-00

$183.99

2

AT22X7-10 MS13 TL 2LS/B46

94107-10803-00

$168.65

3

VALVE, RIM

93900-00812-00

$7.49

4

WHEEL,FRONT

1TD-F5180-11-00

$183.99

5

AT22X7-10 MS13 TL 2LS/B46

94107-10803-00

$168.65

6

VALVE, RIM

93900-00812-00

$7.49

7

HUB ASSY., 2

1PE-F510D-00-00

$63.83

8

BOLT, SERRATION

90114-10006-00

$5.14

9

SPACER, BEARING

5LP-25117-00-00

$15.04

10

BEARING

93306-00446-00

$35.97

11

. BEARING

93306-20231-00

$20.58

12

OIL SEAL(1UY)

93105-26026-00

$10.68

13

OIL SEAL (7H5)

93102-22216-00

$9.89

14

NUT, FLANGE(3BM)

95704-10500-00

$1.71

15

958-69527-00 WASHER, PLAIN

92990-10200-00

$3.00

16

COVER, PLATE

1S3-25127-01-00

$7.15
