Description

Price

1

MASTER CYLINDER AS

1PE-2583T-00-00

$168.80

2

CYLINDER KIT, MAST

B16-F5807-00-00

$25.58

3

. DIAPHRAGM, RESERVOIR

1HP-25854-00-00

$3.60

4

CAP, RESERVOIR

B16-F5852-00-00

$5.94

5

PLATE, DIAPHRAGM

1HP-2585B-00-00

$6.43

6

SEPARATOR

1HP-25889-00-00

$2.15

7

BRACKET, MASTER CY

B16-F5867-00-00

$6.38

8

BOLT

B16-F6332-00-00

$4.28

9

SCREW, FLAT HEAD

98780-04012-00

$2.08

10

BOLT, LEVER

B16-F589F-10-00

$3.97

11

NUT, FLANGE

95702-06500-00

$1.98

12

LEVER 2

1PE-83922-00-00

$50.83

13

FRONT STOP SWITCH ASSY

1HP-83980-03-00

$29.98

14

SCREW, PAN HEAD

98511-04012-00

Unavailable

15

WASHER, PLAIN (646)

92990-04600-00

$0.92

16

COLLAR

1UY-26259-00-00

$17.31

17

HOSE, BRAKE 1

1PE-F5872-01-00

$15.60

18

HOSE, BRAKE 2

5TG-25873-21-00

$127.58

19

PIPE, BRAKE

1PE-F5871-00-00

$10.66

20

BLOT, FLANGE DEEP RECESS

95D32-06025-00

$0.83

21

CIRCLIP

2GU-25866-00-00

$8.70

22

BOLT, UNION

90401-10015-00

$9.89

23

WASHER, PLATE(481)

90201-10118-00

$2.91

24

HOLDER

1AS-25522-01-00

$6.11

25

CLAMP 1

5KM-81677-00-00

$5.75

26

BOLT

90109-06241-00

$5.86

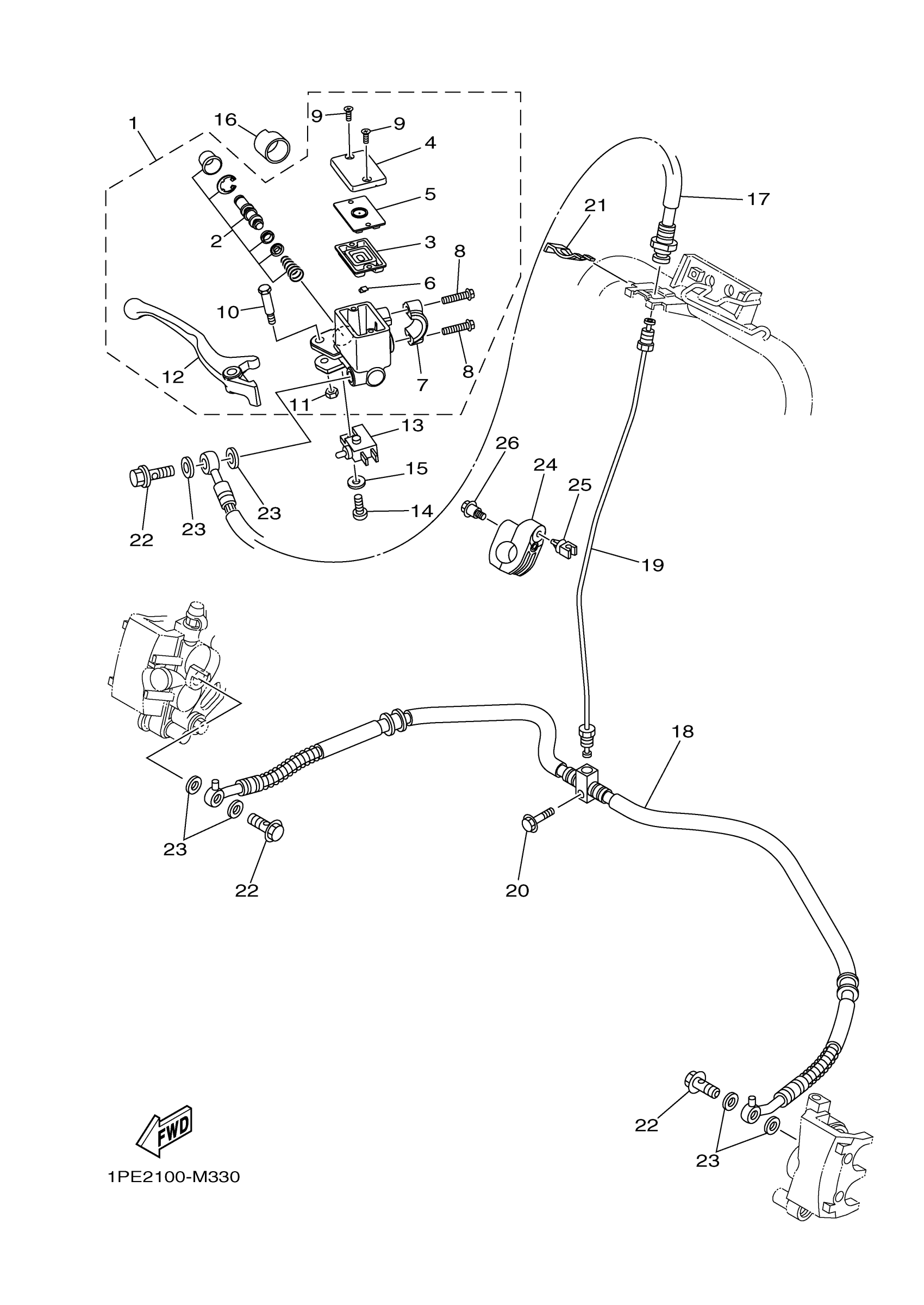

Yamaha YFM70RCBTS (RAPTOR 700 CAL) BFKL 2026 FRONT MASTER CYLINDER Diagram
