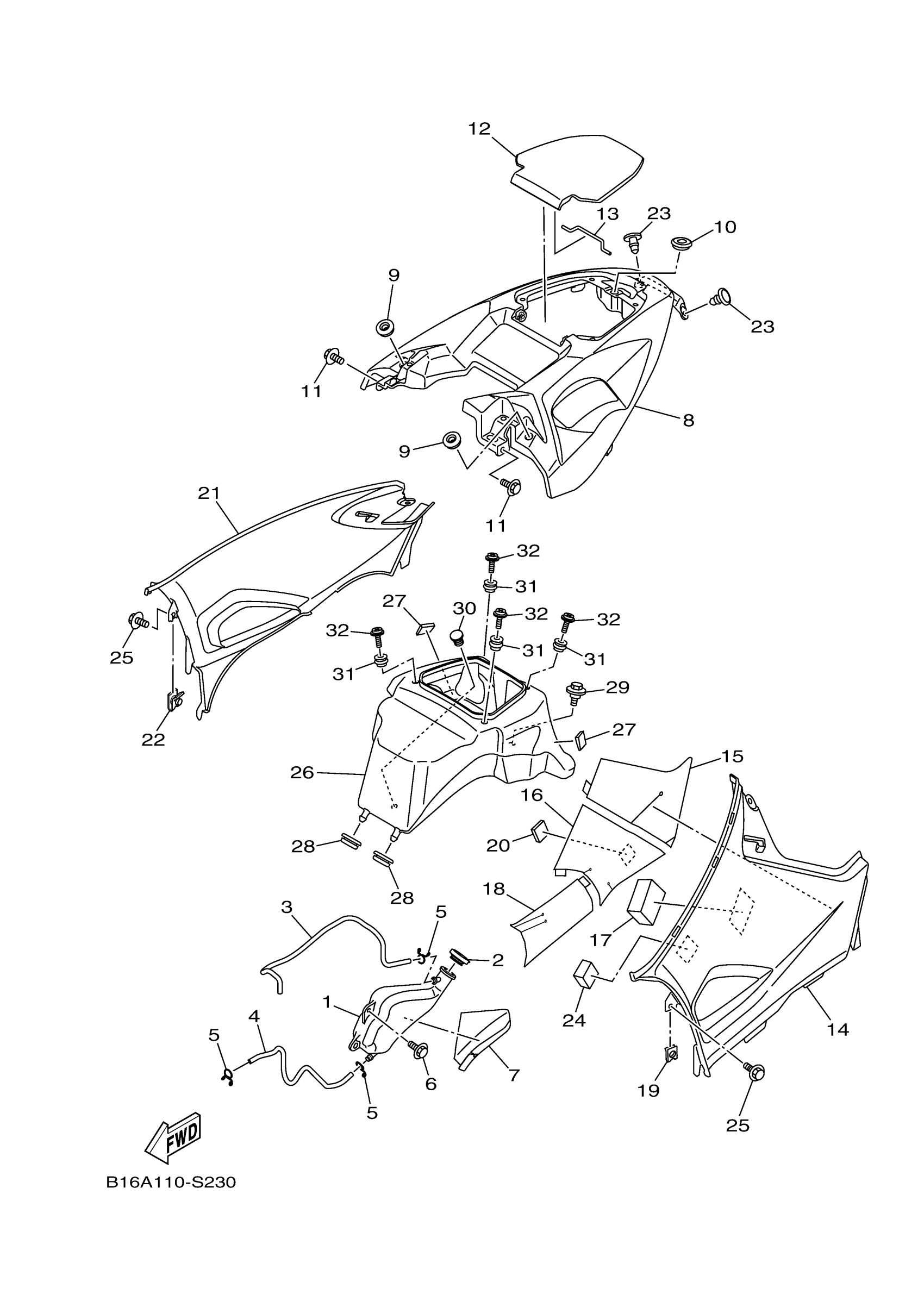

Yamaha YFM70KPZTM (KODIAK 700 EPS XT R) BVGP 2026 SIDE COVER Diagram

#

Description
Price

1

TANK, RECOVERY

1HP-F1871-01-00

$14.31

2

CAP

1S3-21875-00-00

$9.12

3

HOSE

90445-08841-00

$2.34

4

HOSE (L420)

90445-08840-00

$1.82

5

CLIP 101235600

90467-08003-00

$6.13

6

BOLT, WITH WASHER

90119-06152-00

$2.74

7

PLATE

1HP-F176E-01-00

$4.35

8

COVER, TOP

B16-F171A-C0-00

$41.17

9

GROMMET(4FU)

90480-13567-00

$3.88

10

GROMMET(4DN)

90480-01558-00

$3.95

11

BOLT, WITH WASHER

90119-06152-00

$2.74

12

LID, COVER

B16-F177B-C0-00

$16.18

13

PIN, HINGE

3B4-2177K-00-00

$9.97

14

COVER, SIDE 1

B16-F1711-F0-00

Unavailable

15

INSULATOR, SIDE COVER

B16-F174A-02-00

$6.11

16

SEAL 4

B16-F173N-02-00

$10.83

17

DAMPER

3B4-2174Y-00-00

$6.74

18

SEAL 3

B16-F173M-02-00

$5.83

19

NUT, SPRING(4ES)

90183-06069-00

$5.93

20

DAMPER, LOCATING 4

3B4-2177N-01-00

$24.22

21

COVER, SIDE 2

B16-F1721-F0-00

Unavailable

22

NUT, SPRING(4ES)

90183-06069-00

$5.93

23

RIVET

90269-07010-00

$3.75

24

DAMPER, PLATE

90520-50800-00

$6.09

25

BOLT, WITH WASHER

90119-06152-00

$2.74

26

BOX

B16-F177A-01-00

$58.58

27

DAMPER, PLATE

90520-10027-00

$1.05

28

GROMMET(4DN)

90480-01558-00

$3.95

29

BOLT

90109-06202-00

$2.46

30

. PLUG, BLIND

90605-502U1-00

$2.46

31

NUT(1KT)

90179-05523-00

$4.33

32

SCREW, WITH WASHER

90159-05053-00

$1.23
