Description

Price

1

FRONT UPPER ARM CO

1HP-F3540-01-00

$46.37

2

BUSH

1HP-F3526-00-00

$21.28

3

BALL JOINT 2

3B4-23579-01-00

$72.96

4

CIRCLIP(4A6)

99009-30400-00

$6.55

5

FRONT UPPER ARM CO

1HP-F3550-01-00

$46.37

6

BUSH

1HP-F3526-00-00

$21.28

7

BALL JOINT 2

3B4-23579-01-00

$72.96

8

CIRCLIP(4A6)

99009-30400-00

$6.55

9

NUT, CASTLE

90171-12001-00

$2.85

10

PIN, COTTER

91490-25020-00

$2.94

11

FRONT LOWER ARM CO

1HP-F3570-11-00

$63.85

12

BUSH

1HP-F3526-00-00

$21.28

13

WASHER

5KM-22149-10-00

$6.38

14

FRONT LOWER ARM CO

1HP-F3580-11-00

$61.86

15

BUSH

1HP-F3526-00-00

$21.28

16

WASHER

5KM-22149-10-00

$6.38

17

NUT, CASTLE

90171-12001-00

$2.85

18

PIN, COTTER

91490-25020-00

$2.94

19

BOLT, FLANGE

90105-10484-00

$5.40

20

NUT, S/L FLANGE

95602-10200-00

$2.29

21

WASHER, PLATE

90201-10035-00

$3.56

22

SHOCK ABSORBER ASS

2SM-F3350-00-00

$156.01

23

BOLT, FLANGE

90105-10131-00

$5.14

24

NUT, SELF-LOCKING

90185-10012-00

$2.98

25

COVER, UNDER 1

1HP-F3123-01-00

$31.24

26

COVER, UNDER 2

1HP-F3133-01-00

$31.24

27

BOLT,HEX SKT HEAD

90111-06814-00

$1.55

28

NUT, NYLON

95707-06300-00

$3.20

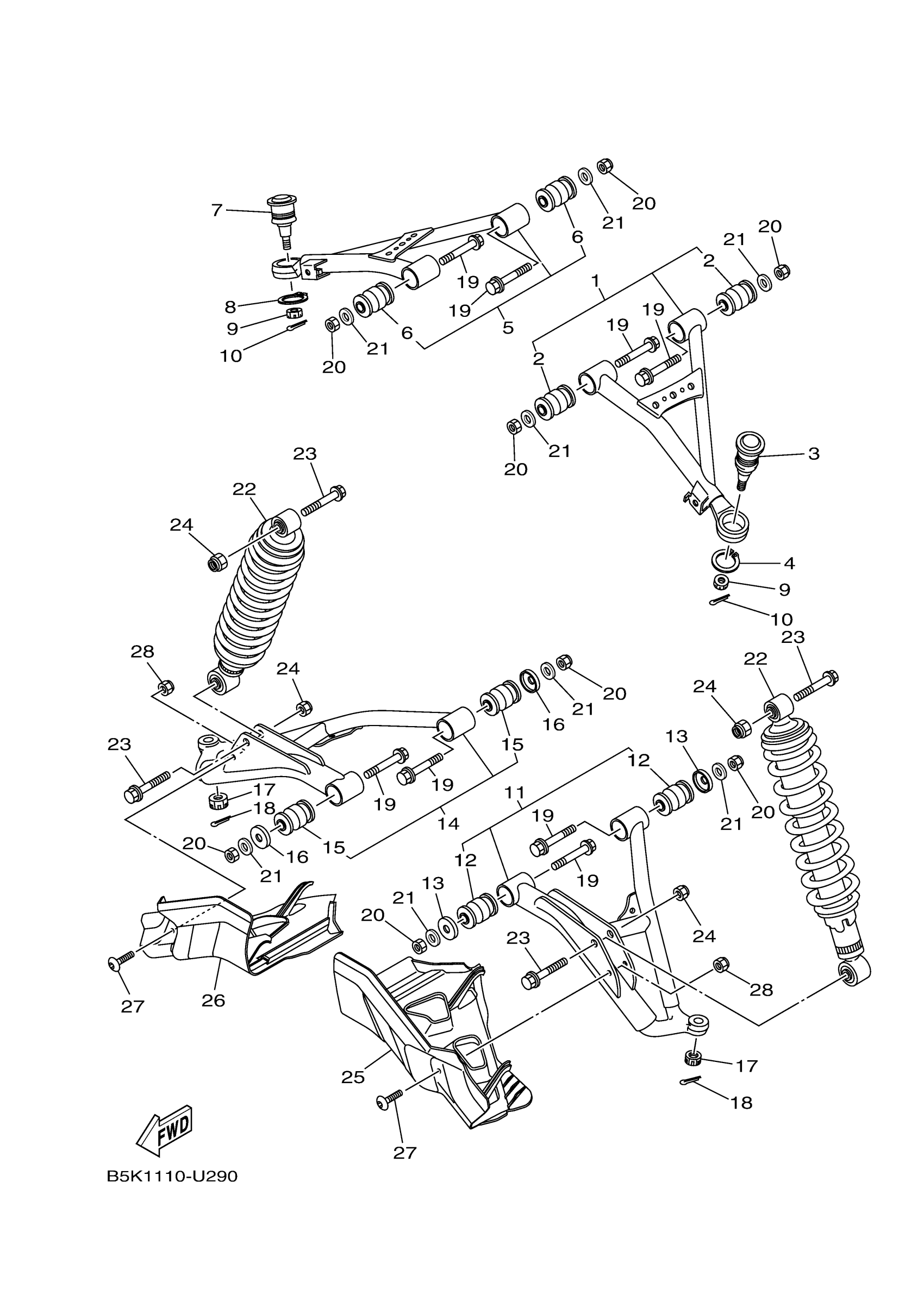

Yamaha YFM70KPZTM (KODIAK 700 EPS XT R) BVGP 2026 FRONT SUSPENSION & WHEEL Diagram
