Description

Price

1

HOLDER, HANDLE UPPER

1E6-23441-00-00

$22.38

2

BOLT, FLANGE

95812-08030-00

$3.25

3

COLUMN, STEERING 2

1HP-F3813-10-00

$152.85

4

PLUG, TAPER(2HR)

90336-28053-00

$8.74

5

SUPT., STRG. COLUM

1HP-F2517-10-00

$12.28

6

BOLT, FLANGE

90105-10876-00

$1.12

7

BRACKET, STEERING

1CT-F1957-00-00

$5.49

8

PLANE BEARING, STE

1CT-F3812-00-00

$5.46

9

BRACKET, STEERING

1CT-F3868-00-00

$5.38

10

BOLT

97012-08080-00

$2.54

11

WASHER, LOCK 1

1CT-F3894-00-00

$0.77

12

COLLAR, 2

1CT-F1545-01-00

$2.92

13

BOLT

90109-08843-00

$2.32

14

POWER STRG. ACTUATOR ASSY

3B4-238B0-51-00

Unavailable

15

COVER, MOTOR

1HP-F38B6-00-00

$3.12

16

BOLT

90109-06043-00

$2.31

17

BOLT, FLANGE

95812-08030-00

$3.25

18

ARM, PITMAN

2SM-F3816-00-00

$20.42

19

WASHER, PLATE

90201-16021-00

$7.49

20

NUT U

95612-16100-00

$14.89

21

PIN, COTTER

91490-20035-00

$3.25

22

ROD, TIE

5KM-23831-00-00

$22.96

23

JOINT, UNIVERSAL 1

1UY-23841-01-00

$66.52

24

JOINT, UNIVERSAL 2

1UY-23845-01-00

$66.52

25

NUT (682)

95380-10700-00

$5.78

26

NUT

90170-10010-00

$2.78

27

NUT, CASTLE

90171-10001-00

$2.85

28

WASHER (25G)

90209-10229-00

$5.86

29

PIN, COTTER

91490-20025-00

$1.31

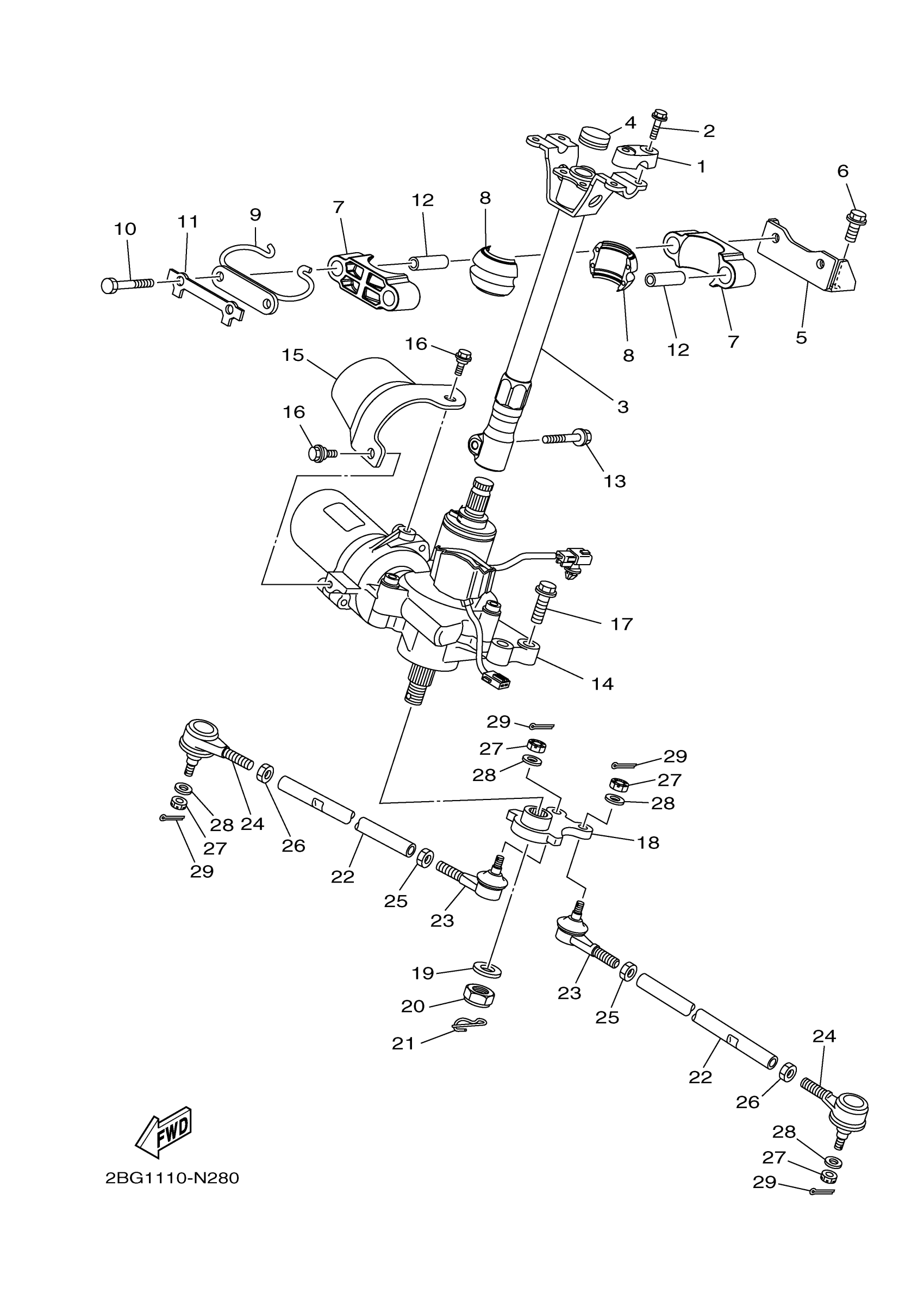

Yamaha YFM70KPSJB (_KPSJS KODIAK 700 EPS 4WD SE) B32B 2018 STEERING Diagram

POWER STRG. ACTUATOR ASSY
