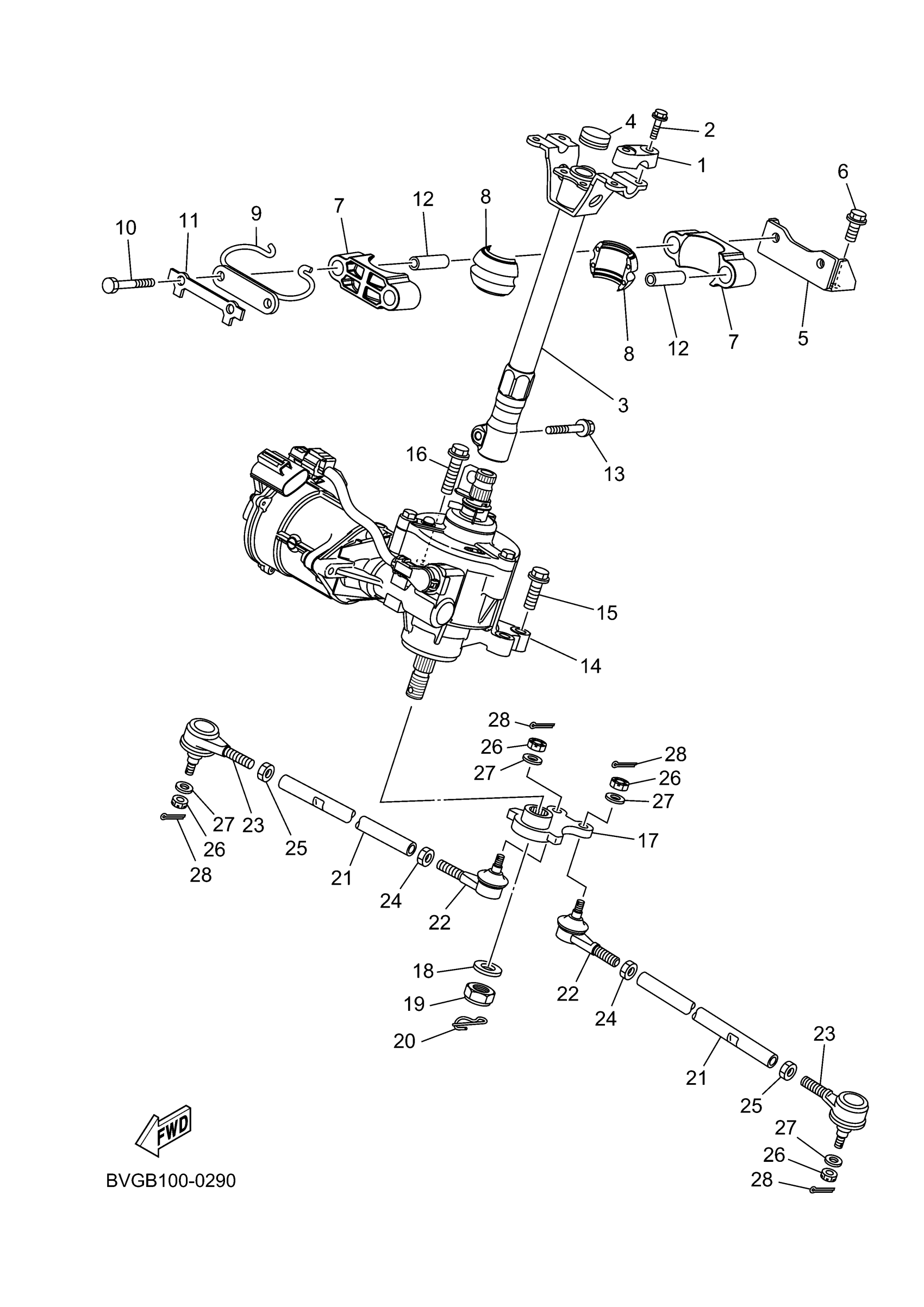

Yamaha YFM70KPATG (KODIAK 700 EPS) BVGK 2026 STEERING Diagram

#

Description
Price

1

HOLDER, HANDLE UPPER

1E6-23441-00-00

$22.38

2

BOLT, FLANGE

95812-08030-00

$3.25

3

COLUMN, STEERING 2

BVG-F3813-00-00

Unavailable

4

PLUG, TAPER(2HR)

90336-28053-00

$8.74

5

SUPT., STRG. COLUM

1HP-F2517-10-00

$12.28

6

BOLT, FLANGE

90105-10876-00

$1.12

7

BRACKET, STEERING

1CT-F1957-00-00

$5.49

8

PLANE BEARING, STE

1CT-F3812-00-00

$5.46

9

BRACKET, STEERING

1CT-F3868-00-00

$5.38

10

BOLT

97012-08080-00

$2.54

11

WASHER, LOCK 1

1CT-F3894-00-00

$0.77

12

COLLAR, 2

1CT-F1545-01-00

$2.92

13

BOLT, FLANGE

90105-08291-00

Unavailable

14

POWER STRG. ACTUATOR ASSY

BVG-238B0-05-00

Unavailable

15

BOLT, FLANGE

90105-08150-00

$4.14

16

BOLT, FLANGE

90105-08298-00

Unavailable

17

ARM, PITMAN

BVG-F3816-00-00

$52.55

18

WASHER, PLATE

90201-16021-00

$7.49

19

NUT U

95612-16100-00

$14.89

20

PIN, COTTER

91490-20035-00

$3.25

21

ROD, TIE

5KM-23831-00-00

$22.96

22

JOINT, UNIVERSAL 1

1UY-23841-01-00

$66.52

23

JOINT, UNIVERSAL 2

1UY-23845-01-00

$66.52

24

NUT (682)

95380-10700-00

$5.78

25

NUT

90170-10010-00

$2.78

26

NUT, CASTLE

90171-10001-00

$2.85

27

WASHER (25G)

90209-10229-00

$5.86

28

PIN, COTTER

91490-20025-00

$1.31
