Description

Price

1

WHEEL COMP.

B16-F5180-00-00

$178.98

2

AT25X8.00-12 MU19

94108-12817-00

$211.72

3

VALVE, RIM

93900-00812-00

$7.49

4

NUT

90179-10020-00

$5.14

5

HUB ASSY 2

B16-F510D-03-00

$51.07

6

BOLT, SERRATION

90114-10014-00

$2.74

7

STEERING,KNUCKLE (R)

2BG-F3502-11-00

$140.97

8

BEARING

93305-00602-00

$98.89

9

CIRCLIP

99009-55500-00

$7.26

10

BALL JOINT 2

3B4-23579-01-00

$72.96

11

CIRCLIP(4A6)

99009-30400-00

$6.55

12

RING, WHEEL 1 (LEF

BB5-F514A-00-00

$12.25

13

SCREW, BIND(1JK)

98980-06010-00

$6.89

14

DRIVE SHAFT ASSY

28P-2518F-04-00

$199.19

15

DOUBLE OFF SET JOI

28P-2510J-02-00

$286.69

16

BALL JOINT SET

28P-2510F-05-00

$503.28

17

BOOT SET(DOUBLE OF

28P-2510H-03-00

$56.18

18

BOOT SET (BALL JOI

28P-2510G-02-00

$53.03

19

SHAFT

28P-2518E-01-00

$96.51

20

BOOT BAND(DOUBLE OFFSET JOINT)

3B4-2511H-00-00

$12.09

21

BOOT BAND (SMALL)

3B4-2512G-00-00

$10.48

22

BOOT BAND (SMALL)

28P-2512G-00-00

$14.25

23

SNAP RING

3B4-2512J-00-00

$8.12

24

CIRCLIP

3B4-2512H-00-00

$5.12

25

CIRCLIP

3B4-25182-00-00

$5.03

26

BOOT BAND(DOUBLE OFFSET JOINT)

28P-2511H-00-00

$13.06

27

CIRCLIP(2HR)

93450-22119-00

$5.10

28

NUT

90179-20016-00

$11.20

29

CAP, WHEEL

1HP-F512A-00-00

$1.74

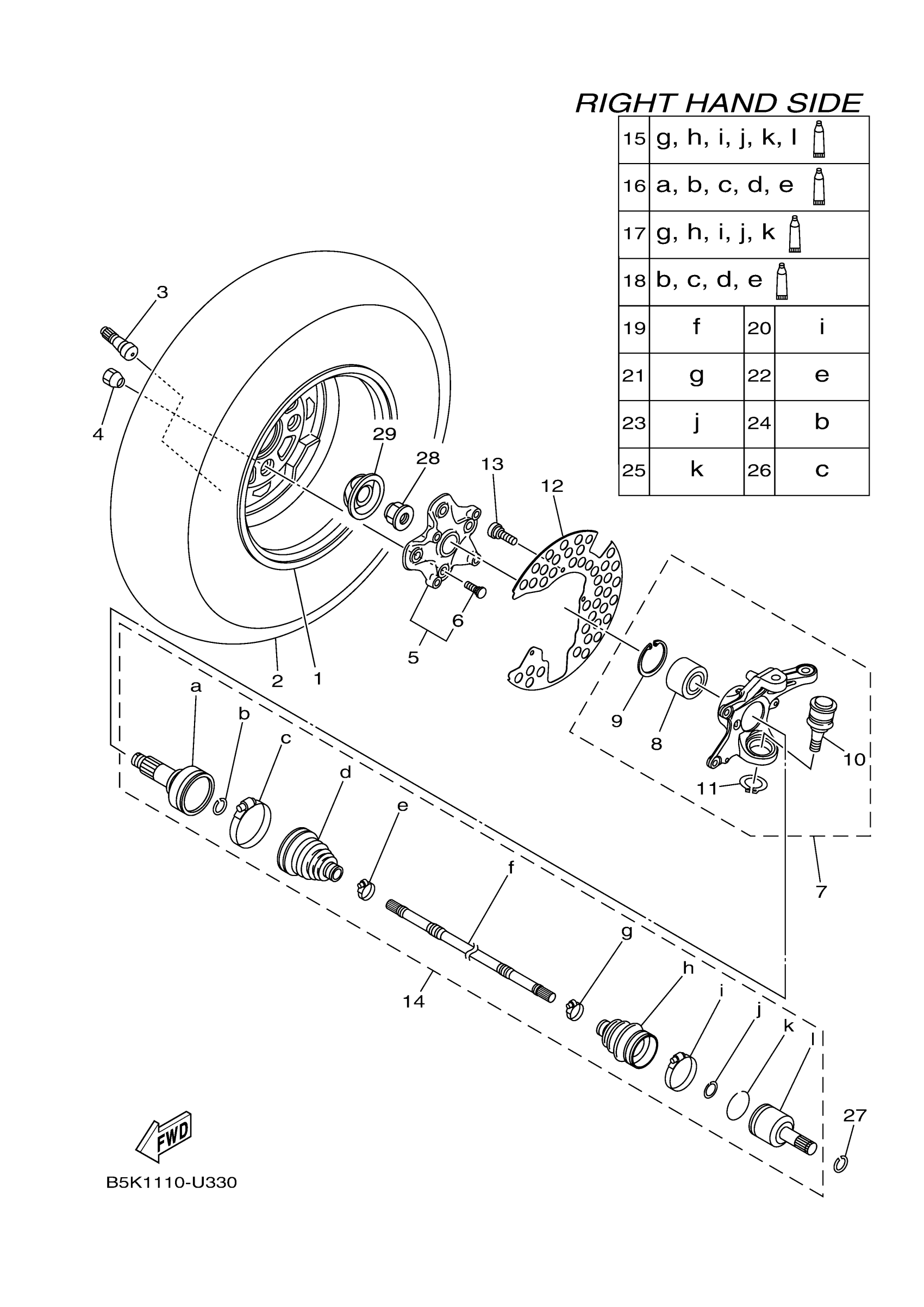

Yamaha YFM70KDXTG (KODIAK 700) B6KV 2026 FRONT WHEEL 2 Diagram
