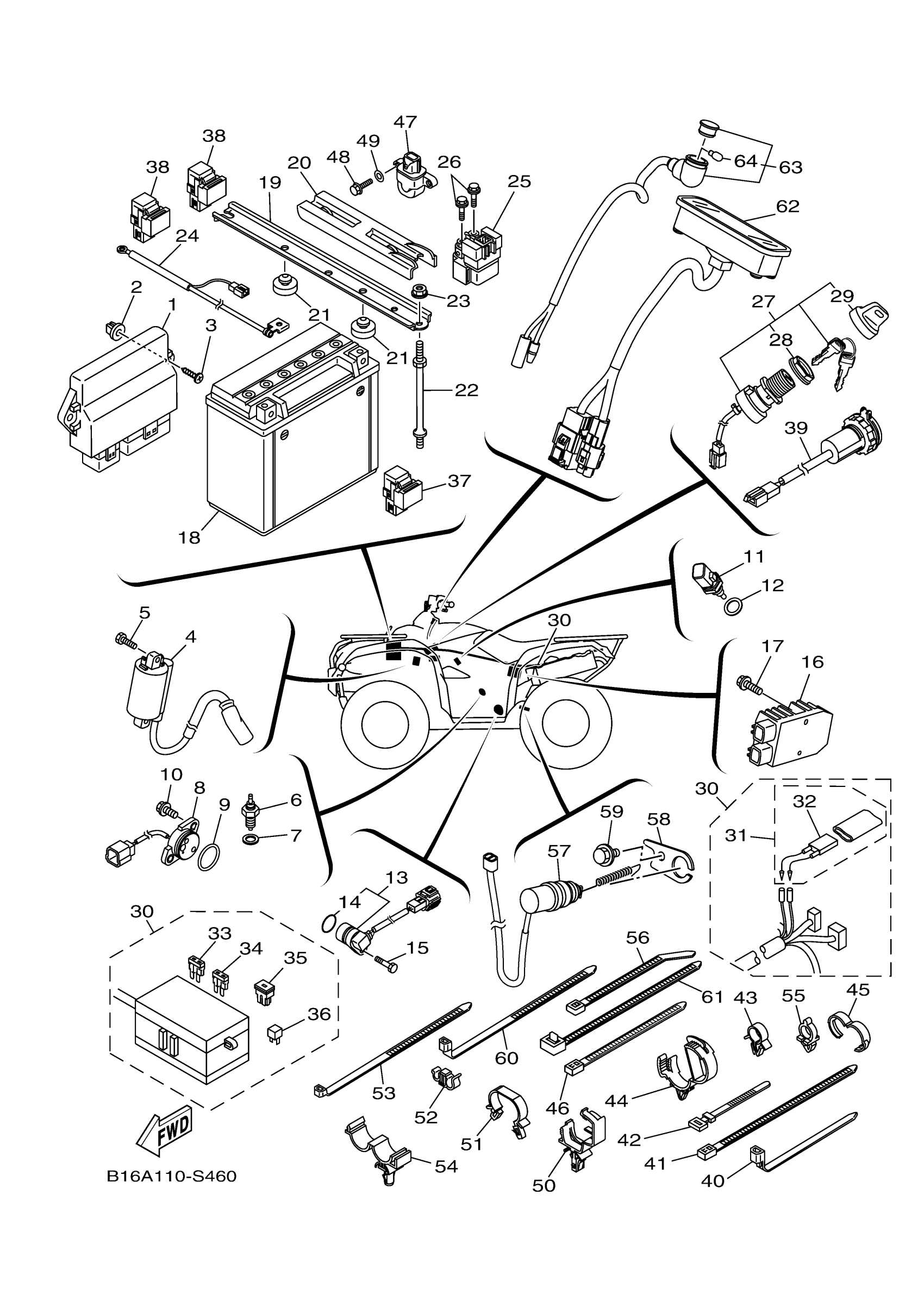

Yamaha YFM70KDXHG (KODIAK 700 4WD) B16A 2017 ELECTRICAL 1 Diagram

#

Description
Price

1

ENGINE CONTROL UNI

B16-8591A-00-00

$1,036.99

2

PLUG(4BP)

90338-08226-00

$1.55

3

SCREW, TAPPING

97702-60025-00

$6.17

4

IGNITION COIL ASSY

B16-82320-02-00

Unavailable

5

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.81

6

NEUTRAL SWITCH ASSY

3GB-82540-01-00

$50.28

7

GASKET

2MB-E5384-00-00

$3.92

8

NEUTRAL SWITCH ASSY

3B4-82540-03-00

$68.04

9

O-RING

2MB-E4D97-00-00

$3.70

10

BOLT

2MB-E5768-10-00

Unavailable

11

THERMOSENSOR ASSY

2MB-H5790-00-00

$56.74

12

GASKET

2MB-E1195-00-00

$1.91

13

SENSOR, SPEED

2MB-H3755-00-00

$119.61

14

O-RING

4D9-81168-00-00

$3.71

15

BOLT 1

2MB-E5481-10-00

$1.49

16

RECTIFIER & REGULATOR ASSY

1D7-81960-01-00

Unavailable

17

BOLT, FLANGE

95817-06020-00

Unavailable

18

BATTERY ASSY (YUASA YTX20L-BS)

YTX-20LBS-00-00

$160.64

19

BRACKET, BATTERY

1HP-H2128-00-00

Unavailable

20

COVER, BATTERY

3B4-82129-00-00

Unavailable

21

PAD, SEAT

22W-24741-00-00

Unavailable

22

SCREW, FITTING

3B4-82133-11-00

Unavailable

23

NUT, FLANGE

95702-06500-00

Unavailable

24

WIRE, MINUS LEAD

28P-82116-01-00

$33.82

25

STARTER RELAY ASSY (2768113-A)

3B4-81940-00-00

Unavailable

26

BOLT, FLANGE

95022-06008-00

Unavailable

27

MAIN SWITCH ASSY

28P-82510-02-00

Unavailable

28

NUT, MAIN SWITCH

3HN-82569-00-00

Unavailable

29

CAP, KEY

3HN-82579-00-00

Unavailable

30

WIRE HARNESS ASSY

B16-82590-01-00

Unavailable

31

CIRCUIT BREAKER ASSY

5GT-82180-00-00

Unavailable

32

THERMO SWITCH ASSY

4GB-82560-00-00

Unavailable

33

FUSE

5JJ-82151-20-00

Unavailable

34

. FUSE (10A)

67F-82151-40-00

$6.20

35

SLOW BLOW FUSE

JR9-82151-00-00

Unavailable

36

DIODE ASSY

3WP-81980-00-00

Unavailable

37

RELAY ASSY

5DM-81950-01-00

Unavailable

38

RELAY ASSY (8DM-11)

8DM-81950-11-00

Unavailable

39

TERMINAL COMP.

1HP-H254B-10-00

Unavailable

40

CLAMP(4FM)

90464-15195-00

Unavailable

41

CLAMP(JN6)

90464-40825-00

Unavailable

42

BAND, SWITCH CORD

437-83936-01-00

Unavailable

43

CLAMP(3XV)

90464-15157-00

Unavailable

44

CLAMP(4AP)

90464-20181-00

Unavailable

45

CLAMP

90464-16001-00

Unavailable

46

BAND, SWITCH CORD

437-83936-11-00

Unavailable

47

LEAN ANGLE SENSOR

3B4-82576-00-00

Unavailable

48

BOLT(6A1)

97095-05016-00

Unavailable

49

WASHER, PLAIN (646)

92990-05600-00

Unavailable

50

CLAMP(4SV)

90464-20237-00

Unavailable

51

CLAMP(4NK)

90464-24230-00

Unavailable

52

CLAMP

90464-09013-00

$3.35

53

BAND, SWITCH CORD

25G-83936-01-00

Unavailable

54

CLAMP

90464-16012-00

Unavailable

55

CLAMP

90464-12830-00

Unavailable

56

CLAMP

90465-10098-00

$2.18

57

Stop Switch Assy

18P-82530-01-00

Unavailable

58

BRACKET, STOP SWIT

B16-21441-00-00

Unavailable

59

BOLT, FLANGE

95812-06010-00

Unavailable

60

CLAMP (6E5)

90465-13M11-00

Unavailable

61

CLAMP(4FM)

90464-15195-00

Unavailable

62

PILOT LIGHT ASSY

B16-83530-00-00

Unavailable

63

PILOT LIGHT ASSY

B16-83582-00-00

Unavailable

64

BULB (12V-1.7W)

3FV-83517-00-00

Unavailable
