Description

Price

1

REAR FENDER ASSY

BYX-F1600-40-00

Unavailable

2

PROTECTOR

2UD-21652-00-00

$23.85

3

NUT, SPRING(4ES)

90183-06069-00

$5.93

4

. PLUG, BLIND

90605-502U1-00

$2.46

5

BOLT, WITH WASHER

90119-06152-00

$2.74

6

BOLT, WITH WASHER

90119-06152-00

$2.74

7

COVER, REAR FENDER

2UD-F1651-00-00

$13.06

8

SEAL

B4F-F1669-01-00

$1.11

9

RIVET

90269-07010-00

$3.75

10

GROMMET

90480-16807-00

$1.25

11

BRACKET, COVER

2UD-F139T-00-00

$27.77

12

SCREW, BINDING

90154-05021-00

$6.18

13

LID

2UD-F160F-00-00

$8.31

14

SEAL, 2

2UD-F16A2-01-00

$1.80

15

WASHER, SPECIAL

1XD-F1515-00-00

$1.02

16

RIVET, BLIND

90267-24143-00

$6.60

17

WASHER, SPECIAL 2

1XD-F1516-00-00

$1.82

18

LOCK 1

1XD-2837G-00-00

$3.48

19

LOCK 2

1XD-2837H-00-00

$2.46

20

SEAL

B16-F1669-02-00

$3.01

21

STAY, FENDER 1

2UD-F1613-00-00

$5.43

22

BOLT, FLANGE

95812-06010-00

$2.75

23

BOLT,HEX SKT HEAD

90111-06814-00

$1.55

24

SEAL, 3

2UD-216A3-00-00

$31.12

25

SEAL, 4

2UD-216A4-00-00

$4.51

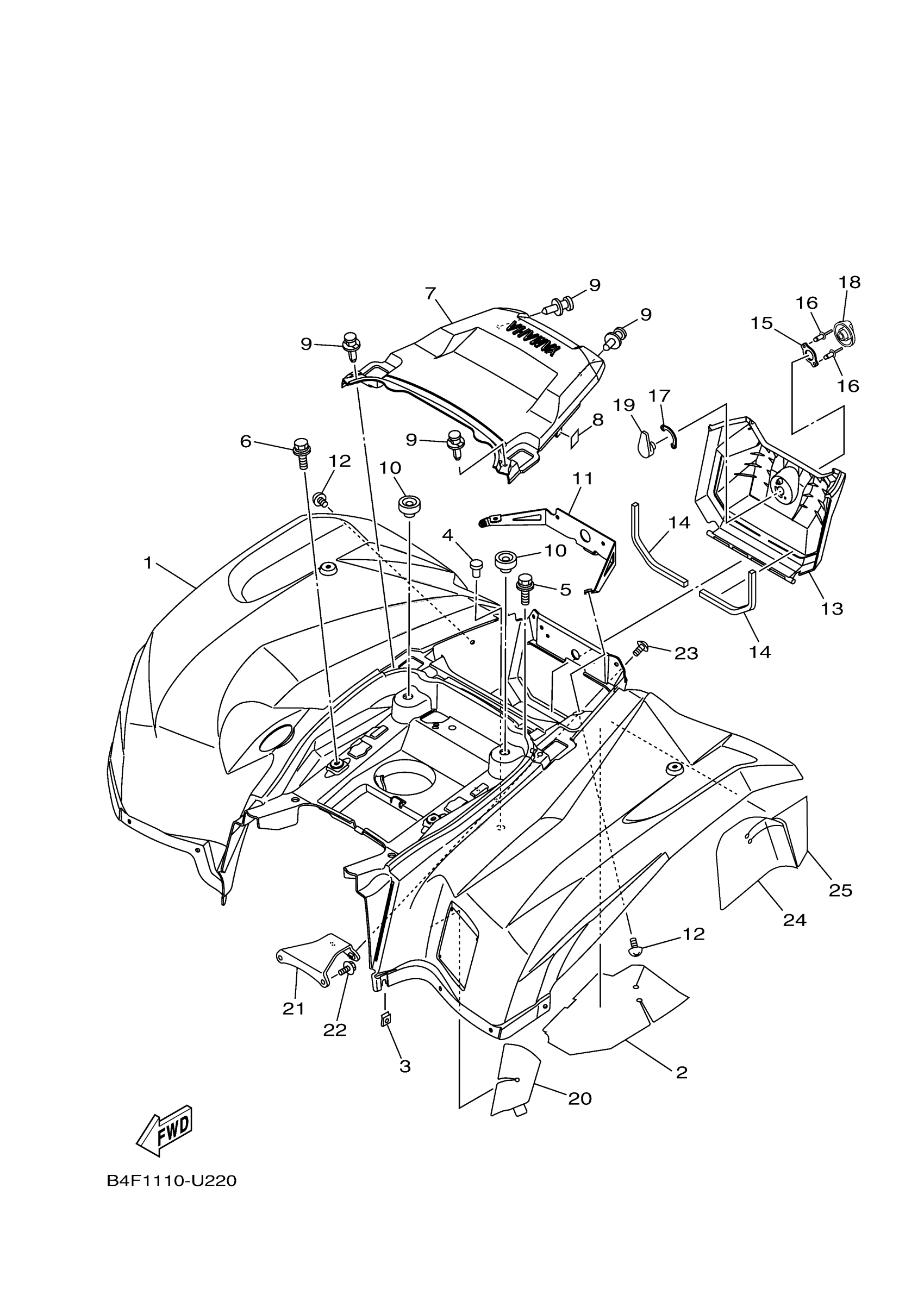

Yamaha YFM70GPZTM (GRIZZLY EPS XT R) DH99 2026 REAR FENDER Diagram

REAR FENDER ASSY
