Description

Price

1

HANDLEBAR

1HP-F6111-01-00

$55.66

2

GRIP

5FU-F6241-10-00

$10.31

3

PIN, COTTER

91490-16020-00

$6.23

4

THROTTLE LEVER ASS

1HP-26250-04-00

$119.58

5

CAP, GEAR

28P-2628F-00-00

$29.88

6

LEVER, THROTTLE

28P-2625G-01-00

$49.73

7

SCREW(3HE)

90149-04278-00

$0.74

8

SCREW, PAN HEAD

98517-05020-00

$1.35

9

NUT, U

95617-05100-00

$6.68

10

NUT, HEXAGON SMALL

95317-05700-00

$6.18

11

OIL SEAL (9X15X4-256)

93104-09025-00

$5.46

12

SPRING

1NV-26304-00-00

$11.17

13

GASKET

28P-2628G-00-00

$6.72

14

WASHER

1NV-26129-00-00

$6.43

15

. WASHER, SPECIAL

53L-83909-00-00

Unavailable

16

COLLAR

1NV-2625K-00-00

$5.86

17

SWITCH, HANDLE 1

1HP-83976-06-00

Unavailable

18

SCREW, PAN HEAD(GA5)

98580-04014-00

$2.78

19

WASHER, PLAIN (646)

92990-04600-00

$0.92

20

HOLDER, LEVER LOWER 1

1S3-82913-00-00

$11.28

21

SCREW, PAN HEAD

98517-05020-00

$1.35

22

WASHER, PLAIN (646)

92990-05600-00

Unavailable

23

CABLE, THROTTLE 1

B4F-26311-00-00

$19.77

24

CABLE, BRAKE

3B4-26341-00-00

$32.16

25

JOINT, CABLE

3B4-26347-00-00

$6.66

26

SPRING, CONPRESSION (7R4)

90501-08665-00

$1.78

27

PIN, CLEVIS (3X3)

90240-06076-00

$6.17

28

WASHER(6TA)

92907-06200-00

$6.18

29

PIN, COTTER (648)

91490-20015-00

$1.85

30

SWITCH, HANDLE 4

28P-83972-01-00

$112.47

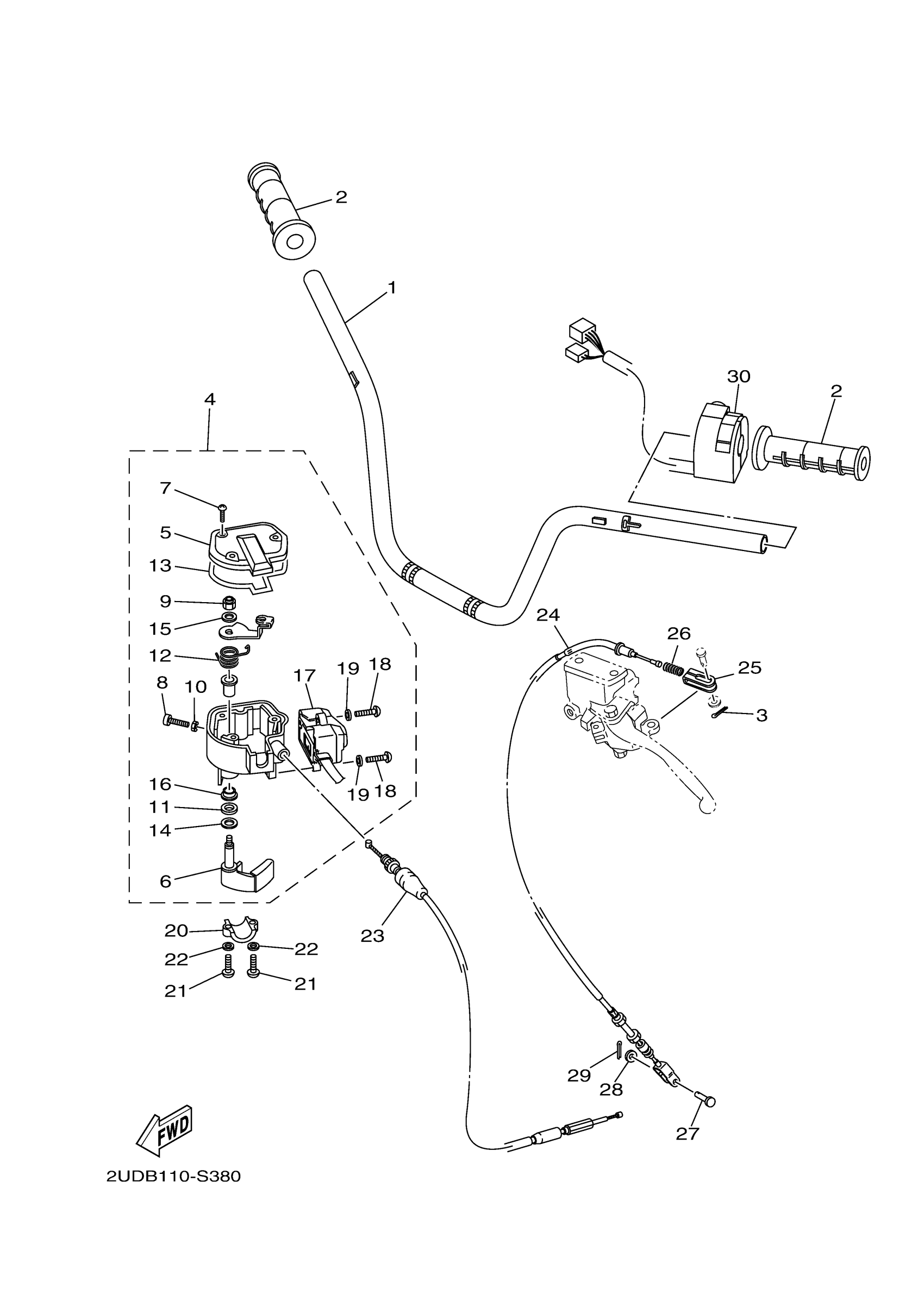

Yamaha YFM70GPHTH (GRIZZLY EPS HUNTING) DH94 2026 STEERING HANDLE & CABLE Diagram
