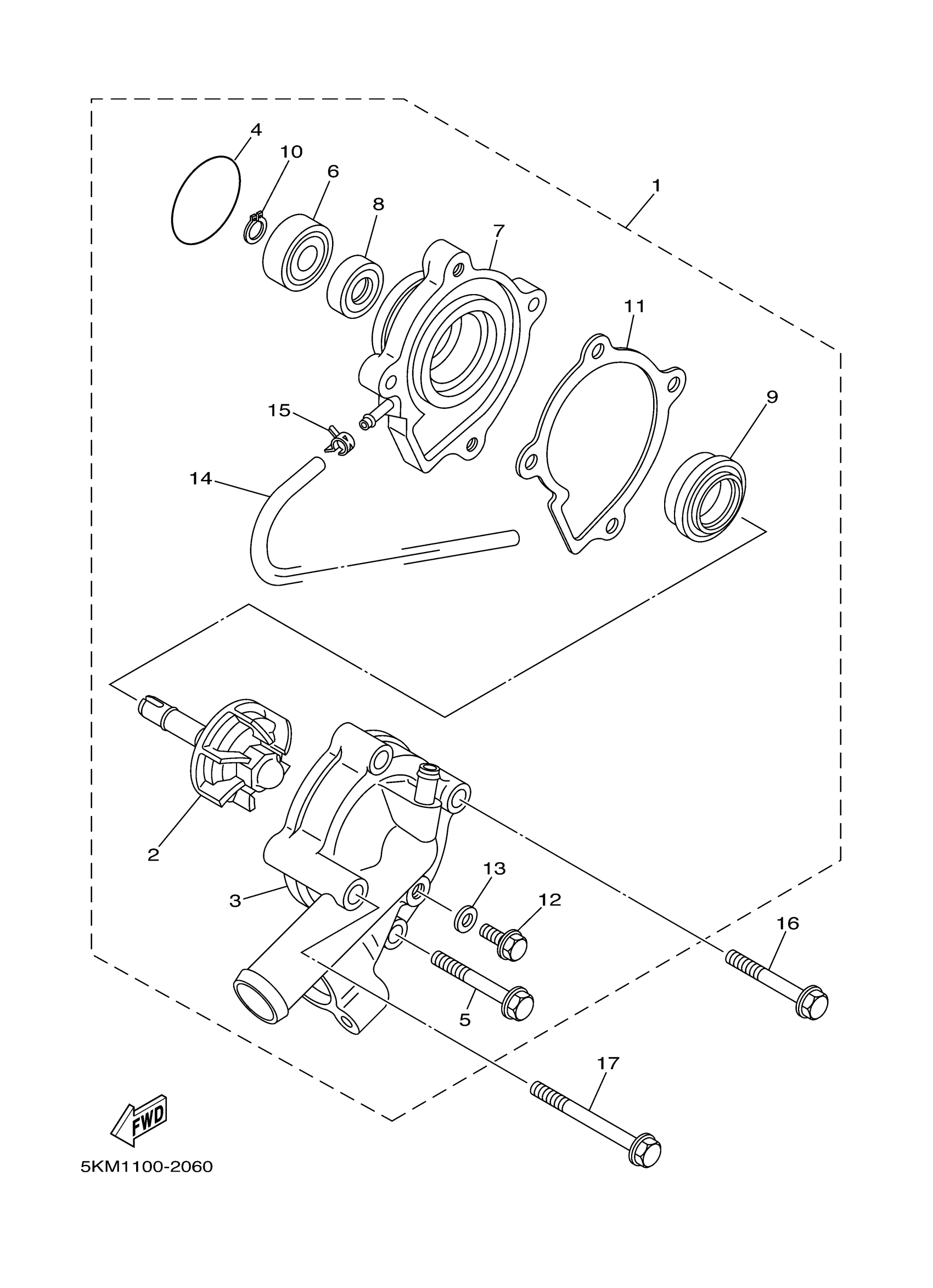

Yamaha YFM66FGW (GRIZZLY 660) 2C6N 2007 WATER PUMP Diagram

#

Description
Price

1

WATER PUMP ASSY

5KM-12420-10-00

$253.43

2

IMPELLER SHAFT ASSY

5KM-12450-10-00

$78.58

3

. COVER, HOUSING

5KM-12422-00-00

Unavailable

4

O-RING (626)

93210-33133-00

$3.01

5

. BOLT, FLANGE

90105-06023-00

Unavailable

6

BRG,R-B 6000 26MM 19G KY

93306-00004-00

$31.81

7

. HOUSING, WATER PUMP

5KM-12421-00-00

Unavailable

8

OIL SEAL (J10)

93101-10090-00

$6.17

9

SEAL, MECHANICAL

11H-12438-10-00

$50.88

10

CIRCLIP(10W)

99009-10400-00

$3.91

11

GASKET, HOUSING COVER 2

5KM-12428-00-00

$6.72

12

BOLT, FLANGE(4MY)

95027-06012-00

$3.28

13

GASKET 256113960000

90430-06014-00

$7.23

14

HOSE(7FK)

90446-04254-00

$6.85

15

CLIP

90467-06194-00

$1.32

16

BOLT, SMALL FLANGE

95027-06045-00

$2.48

17

BOLT, SMALL FLANGE

95027-06065-00

$2.48
