Description

Price

1

BOARD, FOOTREST

5KM-27481-10-00

$136.11

2

BOARD, FOOTREST 2

5KM-27488-10-00

$119.05

3

BOLT, FLANGE

95817-08012-00

$3.98

4

ARM 1

5GH-2741A-10-00

$12.34

5

WASHER, PLATE(36Y)

90201-063J2-00

$4.45

6

BOLT(3KJ)

90109-063F5-00

$6.29

7

NUT(6TA)

95317-06600-00

$2.69

8

BRACKET 1

5KM-27263-00-00

$37.66

9

BOLT, FLANGE(4LN)

95817-08025-00

$6.17

10

SHAFT, BRAKE PEDAL

5KM-27212-10-00

Unavailable

11

BOLT (3XF1)

90110-08220-00

$5.68

12

WASHER, PLATE (3L7)

90201-08784-00

$2.54

13

PEDAL, BRAKE

5KM-27211-10-00

Unavailable

14

LEVER, BRAKE PEDAL

5KM-27252-00-00

Unavailable

15

CIRCLIP

99006-10600-00

$6.91

16

WASHER, PLATE(52G)

90201-144J2-00

$6.46

17

WASHER, WAVE(6T4)

90206-14086-00

$6.18

18

SPRING, TENSION (29U)

90506-16318-00

$8.43

19

SPRING, TENSION(3JN)

90506-12441-00

$7.23

20

COVER 1

5KM-27453-01-00

$172.80

21

COVER 2

5KM-27463-01-00

$133.05

22

BOLT(3KJ)

90109-063F1-00

$2.24

23

SCREW

90149-06021-00

$6.25

24

WASHER, PLATE

90201-06557-00

$2.75

25

NUT, NYLON

95707-06300-00

$3.20

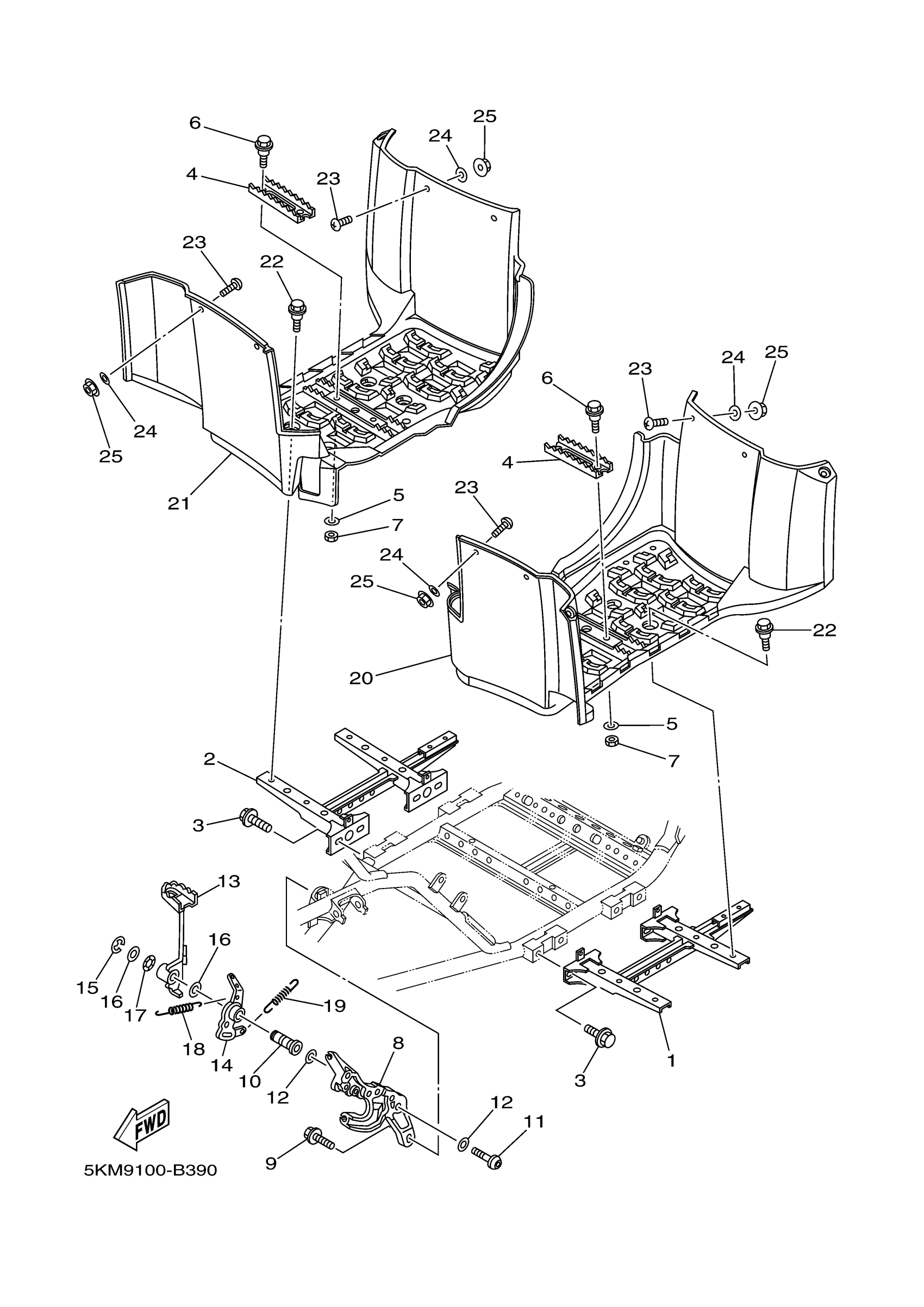

Yamaha YFM66FGW (GRIZZLY 660) 2C6N 2007 STAND FOOTREST Diagram

SHAFT, BRAKE PEDAL

PEDAL, BRAKE

LEVER, BRAKE PEDAL
