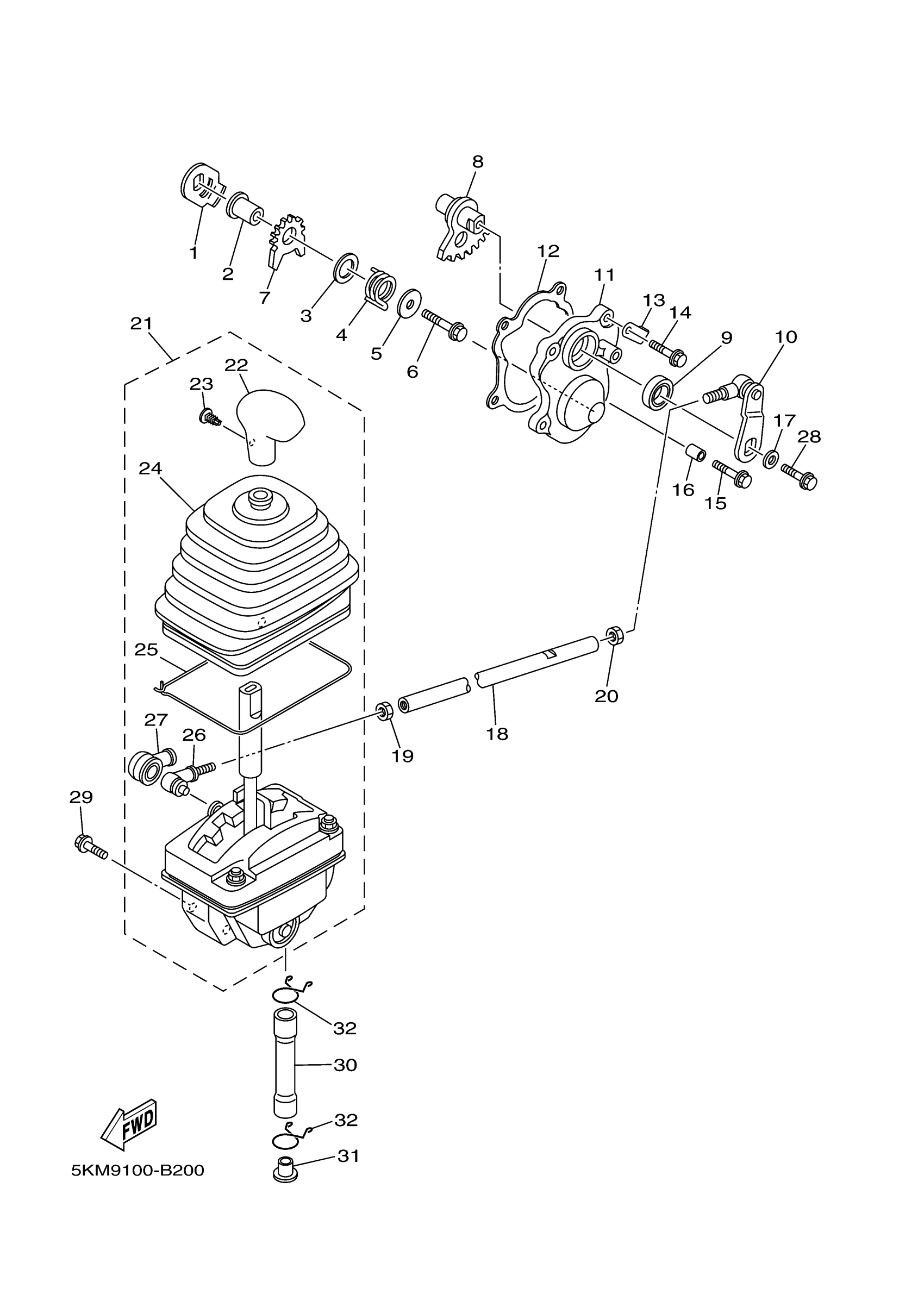

Yamaha YFM66FGW (GRIZZLY 660) 2C6N 2007 SHIFT SHAFT Diagram

#

Description
Price

1

LEVER

4SH-18198-00-00

$19.46

2

COLLAR

90387-0613B-00

$7.26

3

WASHER, PLATE

90201-13013-00

$6.29

4

SPRING, TORSION(1YW)

90508-35764-00

$4.20

5

WASHER, PLATE

90201-06M02-00

$2.23

6

BOLT, FLANGE

95817-06035-00

$5.37

7

LEVER

5KM-18191-00-00

$22.14

8

SHAFT

5KM-18197-00-00

$69.69

9

OIL SEAL (3X3)

93102-15212-00

$7.34

10

SHIFT GUIDE COMP.

5KM-18104-00-00

$69.88

11

COVER, SHIFT SHAFT

5KM-18129-01-00

Unavailable

12

GASKET, LEVER STOP

5KM-18146-00-00

$12.27

13

CLAMP

90465-10026-00

Unavailable

14

. BOLT, FLANGE

95027-06020-00

$1.00

15

BOLT, SMALL FLANGE

95027-06030-00

$3.65

16

PIN, DOWEL

99530-08012-00

$6.62

17

WASHER, PLATE

90201-06M02-00

$2.23

18

ROD, SHIFT

5KM-18115-10-00

Unavailable

19

NUT(1KT)

90170-08358-00

$6.68

20

NUT, HEXAGON SMALL

95317-08700-00

$7.05

21

SHIFTER ASSY

5KM-18300-04-00

Unavailable

22

KNOB, SHIFT LEVER

5GH-18174-00-00

$39.51

23

RIVET(81E)

90269-05055-00

$7.02

24

BOOT, SEALING

5KM-18131-00-00

$54.64

25

STOPPER, RUBBER

5GH-18617-00-00

$12.27

26

JOINT 2

1KT-18157-00-00

$50.97

27

COVER, DUST

2H9-18154-00-00

$5.34

28

BOLT, FLANGE

95817-06016-00

$1.49

29

BOLT, FLANGE(8AB)

95817-08020-00

$7.00

30

HOSE

90446-16001-00

Unavailable

31

PLUG(EU0)

90605-50201-00

$3.49

32

CLIP (806-24358-00)

90467-15012-00

$4.71
