Description

Price

1

REAR WHEEL COMP.

5KM-F5390-09-00

Unavailable

2

TIRE 14 80/90 (Y-TEQ)

2C6-2510K-19-00

Unavailable

3

VALVE, RIM(2GH)

93900-00030-00

$14.46

4

HUB, REAR

5KM-25311-10-00

Unavailable

5

BOLT, SERRATION

90114-10014-00

$2.74

6

NUT

90179-10007-00

$5.38

7

BALL JOINT SET

5KM-2530U-13-00

$473.48

8

DOUBLE OFF SET JOINT

5KM-2530W-12-00

$429.86

9

BOOT SET (BALL JOINT)

5KM-2530X-12-00

$60.08

10

BOOT SET (DOUBLE OFFSET JOINT)

5KM-2530Y-11-00

$57.53

11

CIRCLIP

4KB-2512H-00-00

$6.46

12

SNAP RING

2HR-2512J-00-00

$5.71

13

BOOT BAND (DOUBLE OFFSET JOINT

4KB-2511H-00-00

Unavailable

14

BOOT BAND (SMALL)

3HN-2512G-01-00

$10.43

15

BOOT BAND (BALL JOINT)

3HN-2511G-01-00

$15.29

16

CLIP, SPRING

5KM-2536E-10-00

$8.38

17

NUT

90179-20016-00

$11.20

18

CAP, WHEEL

5KM-2512A-00-00

$8.55

19

REAR WHEEL COMP.

5KM-F5390-09-00

Unavailable

20

TIRE 14 80/90 (Y-TEQ)

2C6-2510K-19-00

Unavailable

21

VALVE, RIM(2GH)

93900-00030-00

$14.46

22

HUB, REAR

5KM-25311-10-00

Unavailable

23

BOLT, SERRATION

90114-10014-00

$2.74

24

NUT

90179-10007-00

$5.38

25

BALL JOINT SET

5KM-2530T-13-00

$478.06

26

DOUBLE OFF SET JOINT

5KM-2530V-12-00

$339.26

27

BOOT SET (BALL JOINT)

5KM-2530X-12-00

$60.08

28

BOOT SET (DOUBLE OFFSET JOINT)

5KM-2530Y-11-00

$57.53

29

CIRCLIP

4KB-2512H-00-00

$6.46

30

SNAP RING

2HR-2512J-00-00

$5.71

31

BOOT BAND (DOUBLE OFFSET JOINT

4KB-2511H-00-00

Unavailable

32

BOOT BAND (SMALL)

3HN-2512G-01-00

$10.43

33

BOOT BAND (BALL JOINT)

3HN-2511G-01-00

$15.29

34

CLIP, SPRING

5KM-2536E-10-00

$8.38

35

REAR KNUCKLE ASSY

5KM-2530F-11-00

$323.31

36

BEARING

93305-00602-00

$98.89

37

NIPPLE, GREASE

93700-06M03-00

$7.15

38

BUSH, SOLID(2NL)

90381-17067-00

$12.49

39

CIRCLIP

99009-55500-00

$7.26

40

NUT

90179-20016-00

$11.20

41

CAP, WHEEL

5KM-2512A-00-00

$8.55

42

SPACER

5KM-23448-00-00

$15.04

43

COVER, THRUST 1

3JN-23517-00-00

$3.92

44

BOLT, WASHER BASED(2NL)

90105-10480-00

$6.91

45

NUT, SELFLOCKING (533 FRAME)

90185-10060-00

$6.02

46

SPACER

5KM-23448-00-00

$15.04

47

COVER, THRUST 1

3JN-23517-00-00

$3.92

48

BOLT, WASHER BASED(2NL)

90105-10480-00

$6.91

49

NUT, SELFLOCKING (533 FRAME)

90185-10060-00

$6.02

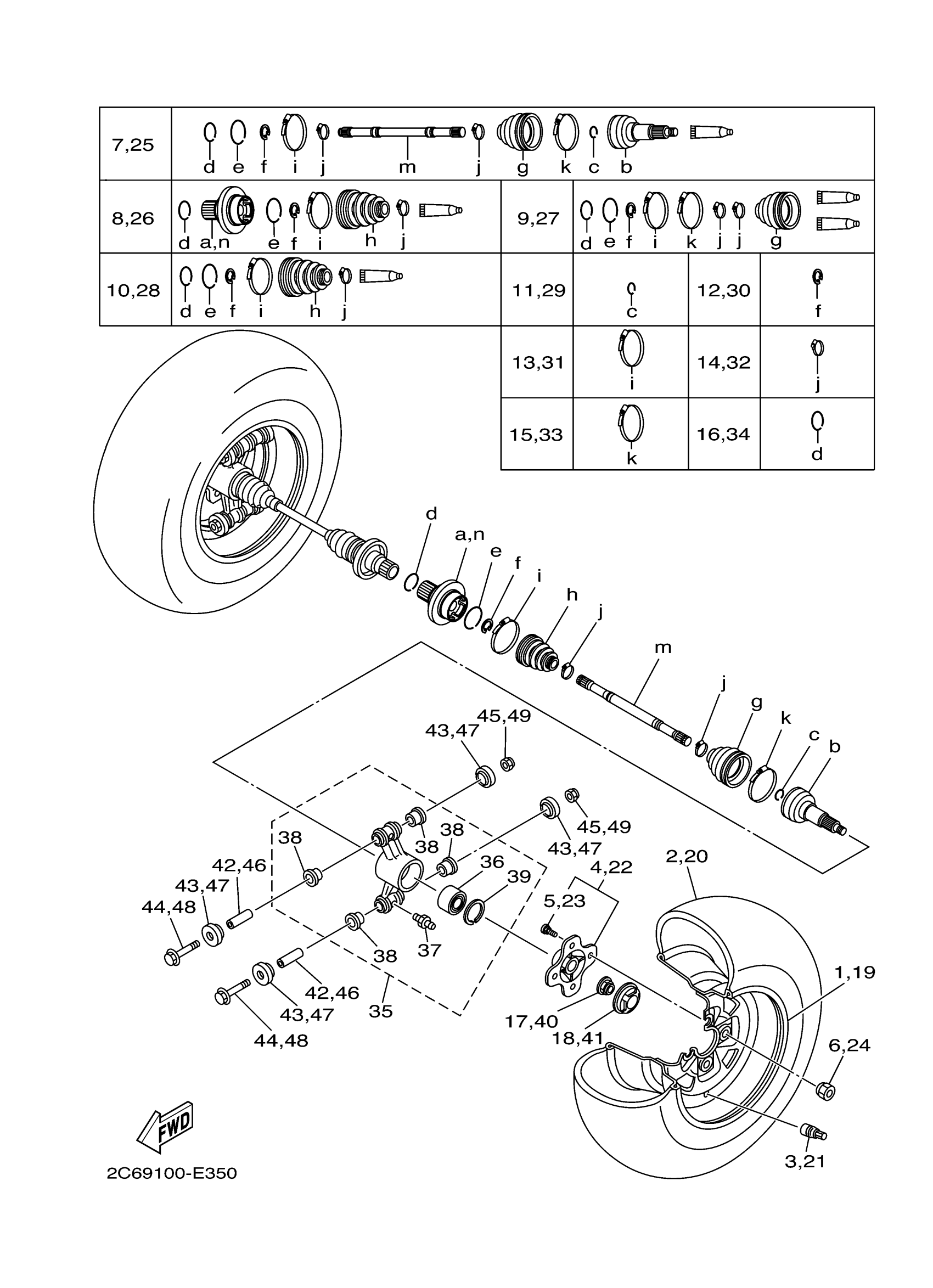

Yamaha YFM66FGW (GRIZZLY 660) 2C6N 2007 REAR WHEEL Diagram

REAR WHEEL COMP.

TIRE 14 80/90 (Y-TEQ)

HUB, REAR

BOOT BAND (DOUBLE OFFSET JOINT

REAR WHEEL COMP.

TIRE 14 80/90 (Y-TEQ)

HUB, REAR

BOOT BAND (DOUBLE OFFSET JOINT
