Description

Price

1

MASTER CYLINDER ASSY

5KM-2583T-01-00

$269.27

2

CYLINDER KIT, MASTER

8CR-W0041-00-00

$47.42

3

DIAPHRAGM, RESERVOIR

4L0-25854-00-00

$21.77

4

CAP, RESERVOIR

5JX-25852-01-00

$22.20

5

SCREW, FLAT

98707-04012-00

$1.43

6

BRACKET, MASTER CYLINDER

5GH-25867-00-00

$21.94

7

BOLT

5EB-26332-00-00

$6.14

8

LEVER 2

5KM-83922-00-00

$32.07

9

NUT, SELF-LOCKING

95617-06100-00

$2.32

10

FRONT STOP SWITCH ASSY

5LP-83980-00-00

$56.22

11

BOLT, LEVER

1FK-2589F-00-00

$4.74

12

HOSE, BRAKE 1

5KM-25872-11-00

Unavailable

13

CIRCLIP

2GU-25866-00-00

$8.70

14

HOSE, BRAKE 2

5KM-25873-20-00

$179.60

15

PIPE, BRAKE

5KM-25871-10-00

$12.63

16

HOLDER, BRAKE HOSE 1

5KM-25875-00-00

$5.37

17

BOLT,SOCKET

91317-06010-00

$6.91

18

BOLT, UNION(3GM)

90401-10159-00

$8.85

19

WASHER, PLATE(481)

90201-10118-00

$2.91

20

BOLT, FLANGE

95817-06025-00

$1.46

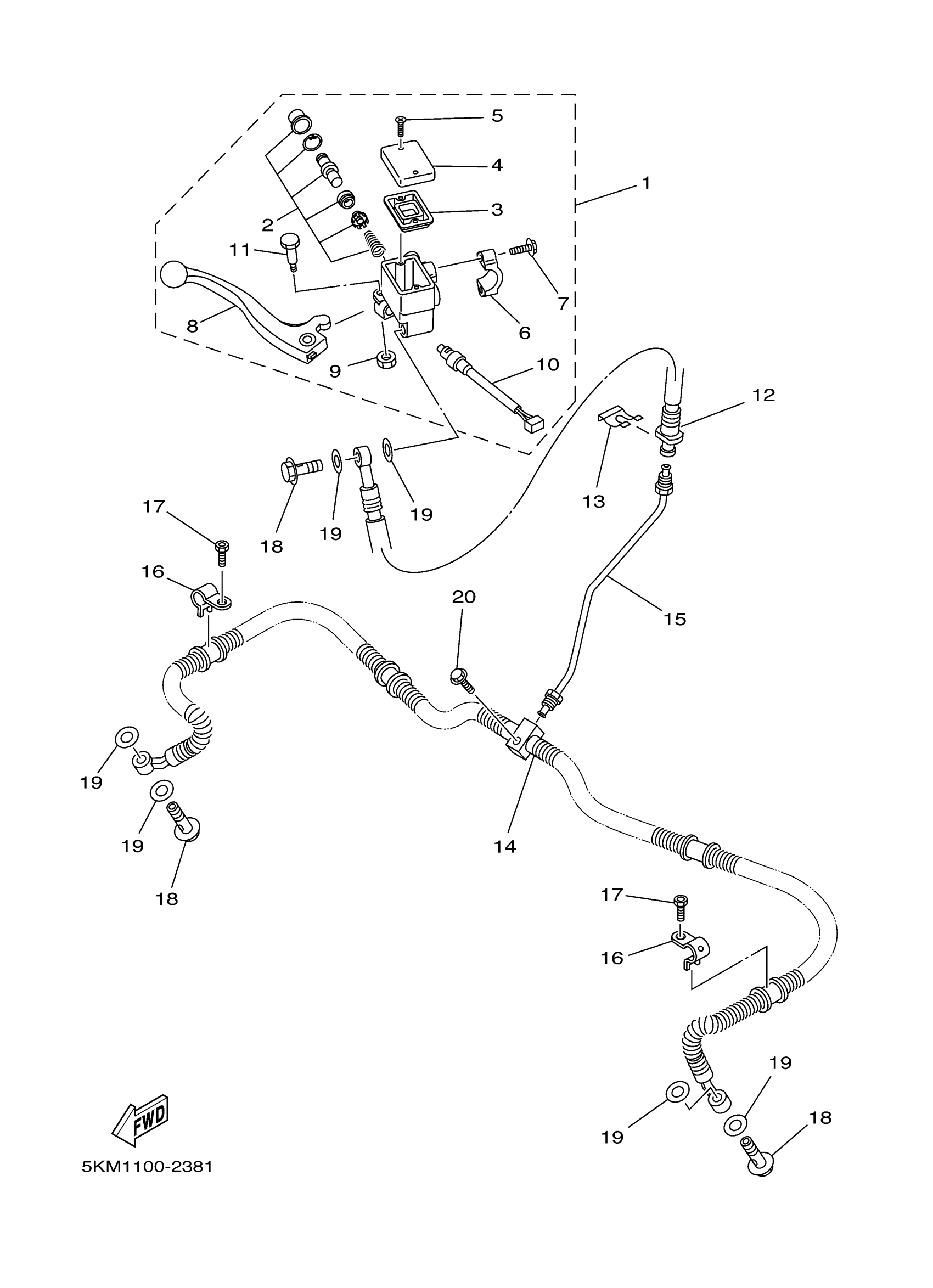

Yamaha YFM66FGW (GRIZZLY 660) 2C6N 2007 FRONT MASTER CYLINDER Diagram
