Description

Price

1

CLUTCH HOUSING COMP.

5KM-16611-10-00

$365.73

2

CLUTCH CARRIER ASSY

5KM-16620-00-00

$442.66

3

SPRING, CLUTCH WEIGHT 1

5KM-16626-00-00

$6.72

4

BEARING, ONE WAY

4SH-16664-00-00

$123.47

5

CIRCLIP

93410-46079-00

$5.42

6

BRG,CYL-CAL ROLLER 12G KY

93315-21813-00

$31.48

7

CIRCLIP (3G2)

93450-24062-00

$3.25

8

NUT

90179-22005-00

$23.08

9

PRIMARY SLIDING SHEAVE COMP.

5KM-17620-00-00

$340.18

10

OIL SEAL

93101-35001-00

$18.97

11

WEIGHT

5KM-17632-00-00

$13.06

12

CAM COMP.

5KM-17650-00-00

$83.85

13

CAM

5KM-17623-00-00

$66.55

14

SLIDER

4WV-17653-00-00

$6.72

15

SPACER 1

4WV-17654-01-00

$6.00

16

O-RING

93211-594A4-00

$22.96

17

STOPPER

4WV-17639-10-00

$28.45

18

SCREW, PAN HEAD

98517-04012-00

$3.28

19

WASHER, PLATE(4HC)

90201-047R9-00

$2.38

20

COLLAR

5KM-17645-00-00

$97.41

21

V-BELT

5KM-17641-01-00

$110.65

22

SHEAVE, PRIMARY FIXED

5KM-17611-00-00

$185.32

23

WASHER, PLATE

90201-190T7-00

$7.51

24

NUT

90179-16005-00

$11.06

25

SECONDARY FIXED SHEAVE COMP.

4WV-17660-10-00

$379.32

26

SECONDARY SLIDING SHEAVE

4WV-17670-00-00

$272.17

27

OIL SEAL

93104-41119-00

$14.18

28

O-RING (10L)

93210-44545-00

$11.47

29

PIN, GUIDE

4CW-17664-00-00

$6.72

30

SPRING, COMPRESSION

90501-65001-00

$45.95

31

SEAT, SECONDARY SPRING

4WV-17684-00-00

$47.77

32

SEAT, SPRING

4WV-17644-00-00

$25.93

33

NUT (5G3)

90170-36279-00

$13.51

34

NUT

90179-16005-00

$11.06

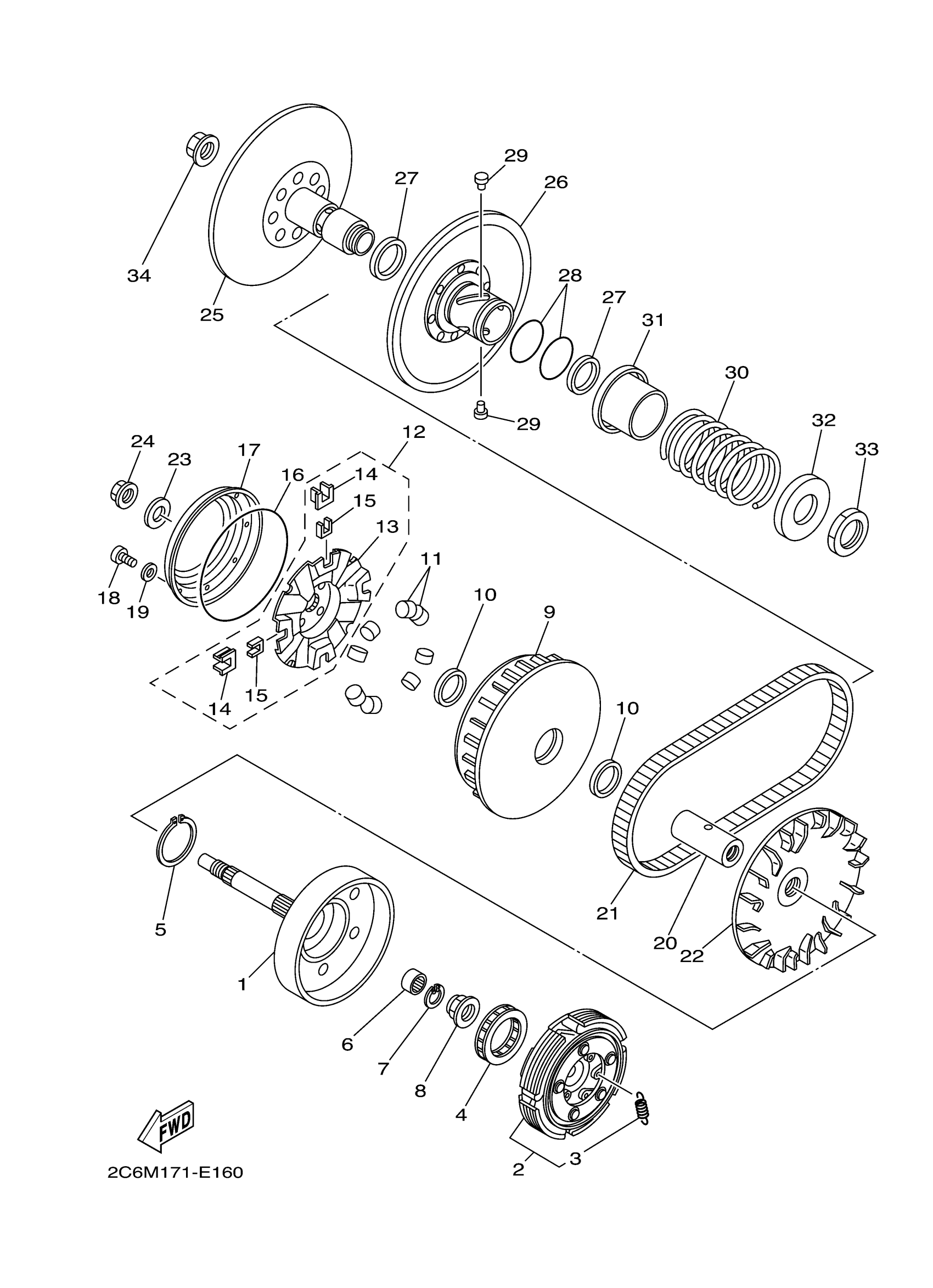

Yamaha YFM66FGW (GRIZZLY 660) 2C6N 2007 CLUTCH Diagram
